Test webhooks manually

  • Release version: Zurich
  • Updated March 12, 2026
  • 4 minutes to read
    • Summarize
    Summarized using AI
    This content was generated using new OpenAI-powered functionality. Results are provided on an as is basis and are not guaranteed to be accurate or complete.

    Summary of Test Webhooks Manually

    This guide explains how ServiceNow customers can manually test and troubleshoot webhook connections for various DevOps tools integrated with DevOps Change Velocity, including GitLab, Rally, Split.io, Jira, Bitbucket, and Argo CD. Since some tools do not provide direct webhook testing capabilities, the document offers practical steps to verify and reconfigure webhooks to ensure event data flows correctly into DevOps Change Velocity.

    Show full answer Show less

    Testing and Troubleshooting Webhooks by Tool

    • GitLab:
      • Requires GitLab admin and DevOps Change admin/tool owner roles.
      • Test webhooks directly via GitLab’s Project Settings > Webhooks by selecting “Test” and choosing event types like Push events.
      • Receive success or error messages to confirm connection status.
      • If errors occur, reconfigure webhooks via DevOps Change Velocity or verify URL toolId and secret token values against tool records.
    • Rally:
      • Requires Rally admin and DevOps Change admin/tool owner roles.
      • No direct webhook test option; verify webhook exists and is active in Rally’s Extensions > Webhooks.
      • Reconfigure the webhook from the DevOps Change Velocity project record if events are missing.
    • Split.io:
      • Requires Split.io admin and DevOps Change admin/tool owner roles.
      • No direct webhook test; verify ServiceNow DevOps integration status and configuration in Split.io Admin Settings.
      • Reconfigure the webhook in DevOps Change Velocity if needed.
    • Jira:
      • Requires Jira admin and DevOps Change admin/tool owner roles.
      • No direct test; check webhook existence and enabled status in Jira System settings.
      • Validate Tool ID and secret token in webhook URL against DevOps Change Velocity tool records.
      • Reconfigure webhooks via DevOps Change Velocity as necessary.
      • Note differences in webhook creation between OAuth 2.0 and basic authentication methods.
    • Bitbucket:
      • Requires Bitbucket admin and DevOps Change admin/tool owner roles.
      • No direct test; verify webhook presence and active status under repository settings.
      • Confirm Tool ID and secret token match DevOps Change Velocity tool records.
      • Reconfigure webhooks from DevOps Change Velocity tool record.
    • Argo CD:
      • Requires Argo CD admin and DevOps Change admin/tool owner roles.
      • No direct test available; configure webhooks manually as per Argo CD guidelines.

    Practical Actions for ServiceNow Customers

    • Verify admin privileges both in the third-party tool and in DevOps Change Velocity before attempting webhook tests or reconfiguration.
    • Use the DevOps Change Velocity interface to reconfigure webhooks for projects or tools when connectivity issues arise.
    • Confirm webhook URLs contain correct toolId and secret token values by cross-referencing with DevOps Change Velocity tool records.
    • For tools without direct webhook test options, check webhook status and configuration within the respective tool’s settings.
    • Be mindful of authentication methods (e.g., OAuth 2.0 vs basic auth in Jira) as they affect webhook creation and management.

    Following these steps helps ensure reliable webhook connections, enabling seamless event integration between your DevOps tools and ServiceNow DevOps Change Velocity for effective change velocity management.

    For tools including GitLab, Rally, Split.io, Jira, Bitbucket, and Argo CD, you have to test webhooks manually if there is any issue with the connection.

    GitLab

    Role required:
    • GitLab: GitLab admin privileges
    • DevOps Change: sn_devops.admin or sn_devops.tool_owner
    To test webhooks manually in GitLab, you must:
    1. Navigate to GitLab and select the project for which you want to test webhooks.
    2. Navigate to Settings > Webhooks.

      When your project is configured in DevOps Change Velocity, webhooks are created for that project in GitLab. These webhooks are available under Project Hooks.

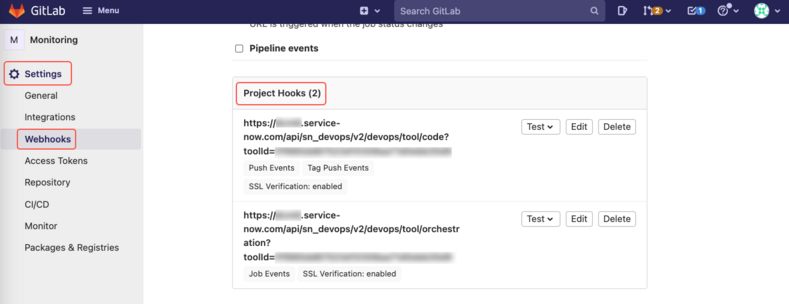

      Webhooks in GitLab.

      For each project, two webhooks are created. One is for code events and the other for orchestration events.

    3. To test a webhook, select Test and select Push events from the list.

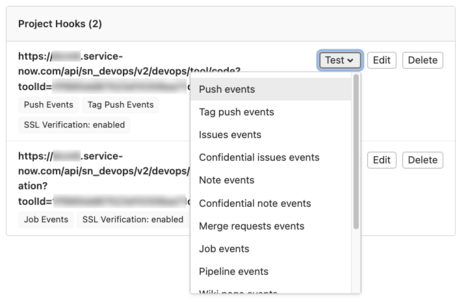

      Test the webhook.

      Note:
      You can test for other events as well, for example Tag push events.
      • If the webhook is configured correctly, you’ll receive a success message. For example:

        Success message.

      • If the webhook is configured incorrectly, you’ll receive an error message. For example:

        Error message.

        To fix a webhook, you can try the following options:
        • Reconfigure the webhooks by selecting Configure from the project record page in DevOps Change Velocity. This reconfigures all the existing webhooks for the project.

        • Select Edit for the webhook and verify if the toolId is correct in the URL field. Verify if the Secret token is correct.

          You can find the correct values in the tool record page in DevOps Change Velocity.

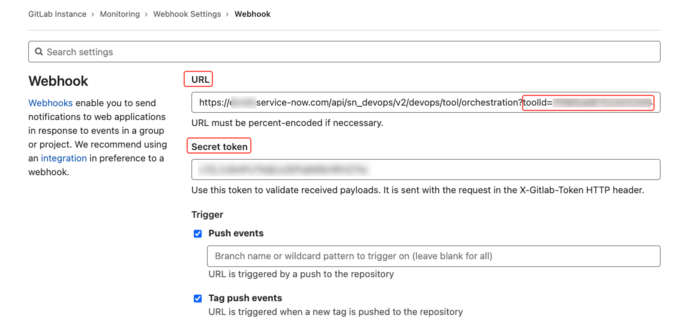

          Check webhook fields.

    For detailed information about webhooks in GitLab, see Webhooks.

    Rally

    Role required:
    • Rally: Rally admin privileges
    • DevOps Change: sn_devops.admin or sn_devops.tool_owner
    Rally doesn't provide an option to directly test for webhook connectivity. If you're not seeing Rally events in DevOps Change Velocity, you can try the following options:

    • From your Rally instance, navigate to My Settings > System Administration > Extensions > Webhooks.

      Check if there’s a corresponding webhook created for your DevOps Change instance, and that it’s Active.

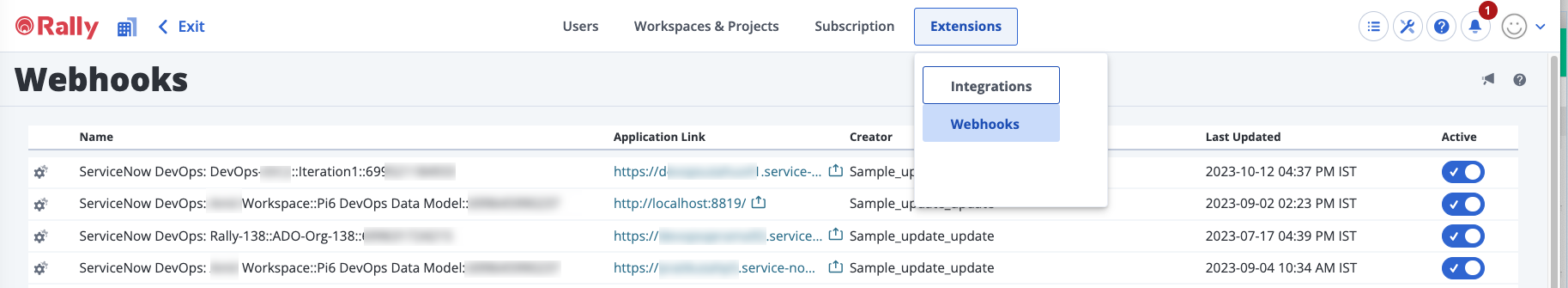

      Webhooks in Rally.

    • Reconfigure the webhook by selecting Configure from the project record page in DevOps Change Velocity. This reconfigures the existing webhook for the project.

    For detailed information about webhooks in Rally, see Manage Webhooks.

    Split.io

    Role required:
    • Split.io: Split.io admin privileges
    • DevOps Change: sn_devops.admin or sn_devops.tool_owner
    Split.io doesn't provide an option to directly test for webhook connectivity. If you're not seeing Split.io events in DevOps Change Velocity, you can try the following options:

    • From your Split.io instance, navigate to Admin Settings > Integration settings > Integrations. Select the Configured tab, and select Edit for the ServiceNow DevOps application.

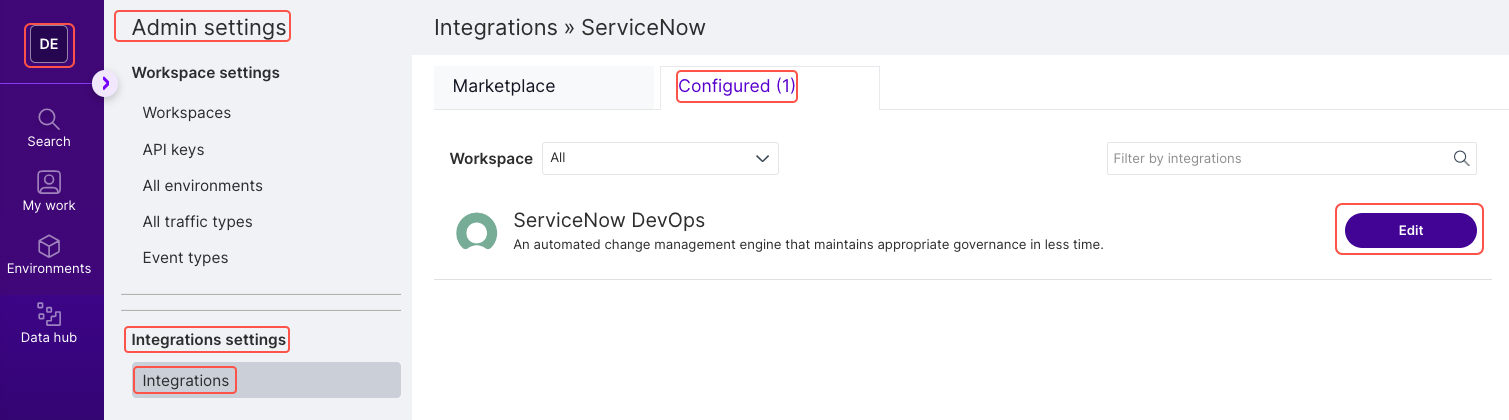

      Configure ServiceNow DevOps application.

      Check if the ServiceNow DevOps application is configured correctly in Split.io. For details on configuring, see Enable integration with ServiceNow DevOps in Split tool.

    • Check if the status of the ServiceNow DevOps application is Active.

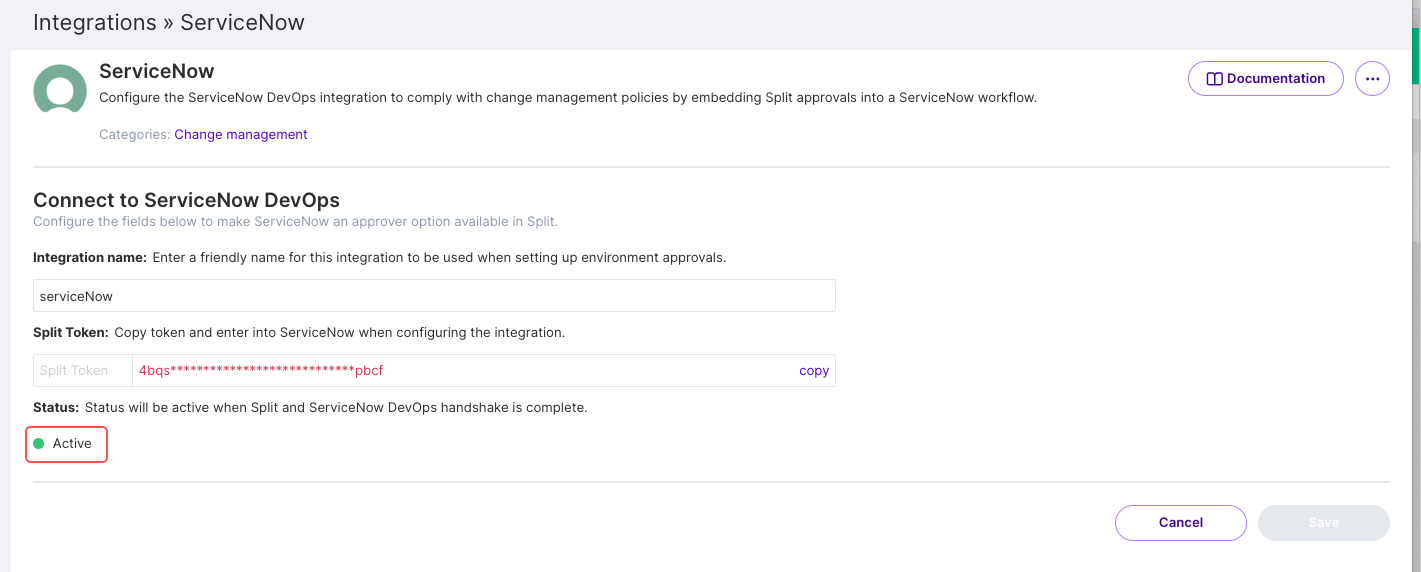

      ServiceNow DevOps application.

    • Reconfigure the webhook by selecting Configure from the tool record page in DevOps Change Velocity. This reconfigures the existing webhook for the Split.io tool.

    You can also refer to ServiceNow integration with Split.io.

    Jira

    Role required:
    • Jira: Jira admin privileges
    • DevOps Change: sn_devops.admin or sn_devops.tool_owner
    Jira doesn't provide an option to directly test for webhook connectivity. If you're not seeing Jira events in DevOps Change Velocity, you can try the following options:
    • Navigate to:
      • For Jira Server navigate to Administration > System > WebHooks.
      • For Jira Cloud instance, navigate to Settings > System > WebHooks.

      Check if there’s a corresponding webhook created for your DevOps Change instance.

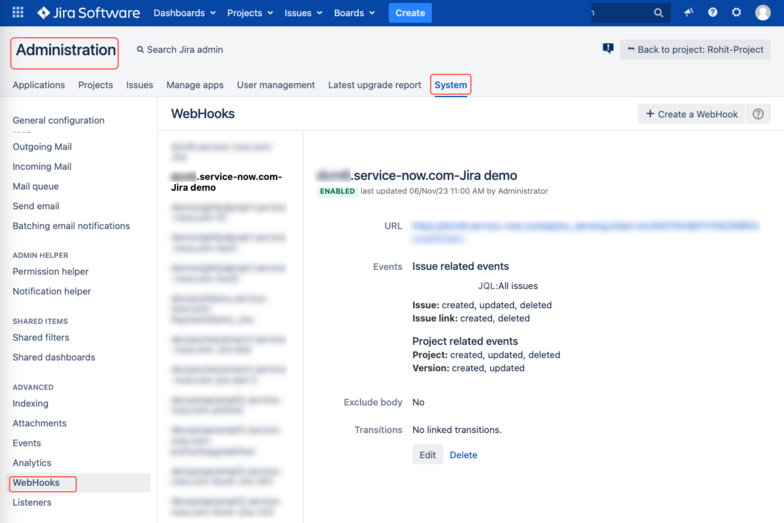

      Webhook for DevOps Change.

    • Select Edit for the webhook.
      • Check if the status is Enabled.
      • Check if the Tool ID in the URL field is correct. The Tool ID is the value after ?toolId=.
      • Check if the secret token in the URL field is correct. Token value is at the end of the URL, after token=.

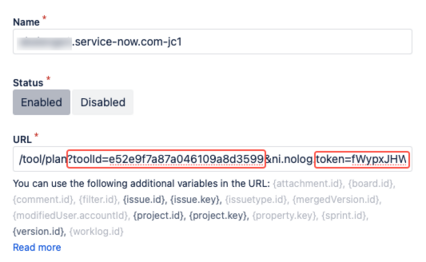

      Webhook fields.

      You can find the correct values of the Tool ID and Secret token in the tool record page in DevOps Change Velocity.

      For detailed information about webhooks in Jira, see Webhooks.

    • Reconfigure the webhook by selecting Configure from the tool record page in DevOps Change Velocity. This reconfigures the existing webhook for the Jira tool.
      Note:

      If you have connected your Jira tool using OAuth 2.0 based authentication, the webhooks are created for the OAuth 2.0 integration app in Jira when you configure automatically, whereas if you have connected using basic authentication, the webhooks are created for all your projects in Jira. If you choose to configure the webhooks manually for a Jira tool created using OAuth 2.0 based authentication, a duplicate webhook may get created.

    Bitbucket

    Role required:
    • Bitbucket: Bitbucket admin privileges
    • DevOps Change: sn_devops.admin or sn_devops.tool_owner
    Bitbucket doesn't provide an option to directly test for webhook connectivity. If you're not seeing Bitbucket events in DevOps Change Velocity, you can try the following options:

    • Navigate to Bitbucket and select the repository for which you want to test webhooks. Navigate to Repository settings > Workflow > Webhooks.

      Check if there’s a corresponding webhook created for your DevOps Change instance.

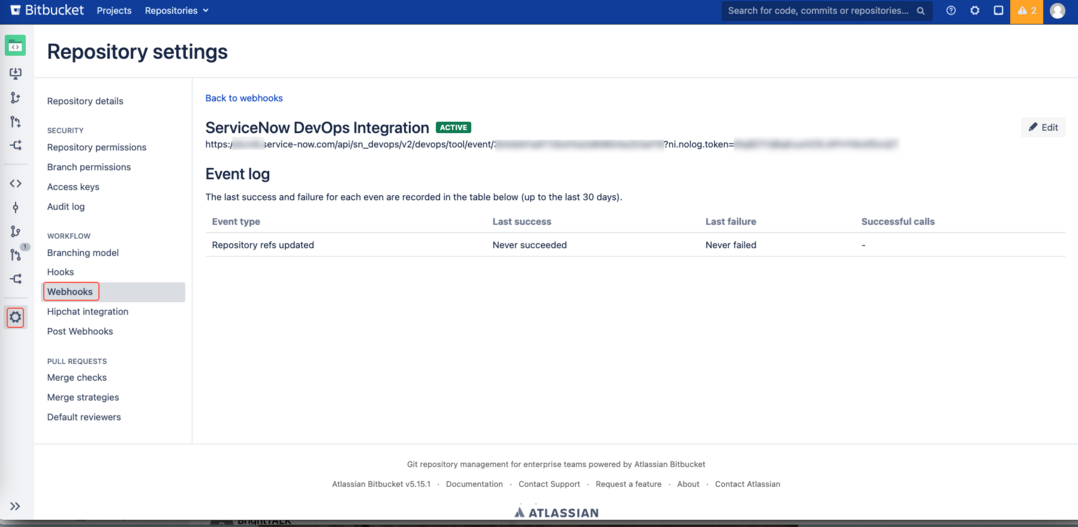

      Repository webhooks.

    • Select Edit for the webhook.
      • Check if the status is Active.
      • Check if the Tool ID in the URL field is correct. The Tool ID is the value after /event/.
      • Check if the secret token in the URL field is correct. Token value is at the end of the URL, after token=.

      You can find the correct values of the Tool ID and Secret token in the tool record page in DevOps Change Velocity.

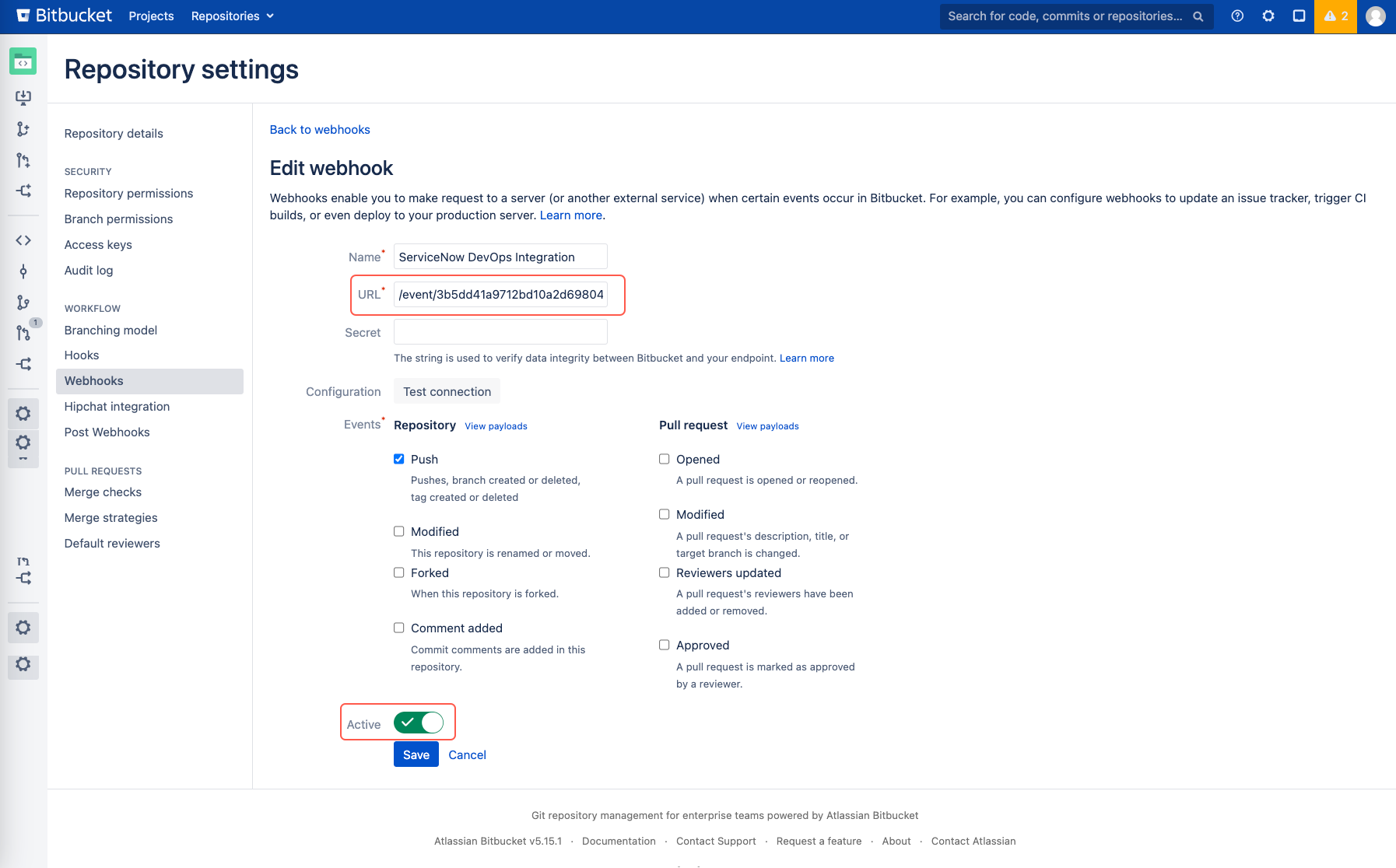

      Repository settings.

      For detailed information about webhooks in Bitbucket, see Manage webhooks.

    • Reconfigure the webhook by selecting Configure from the tool record page in DevOps Change Velocity. This reconfigures the existing webhook for the Bitbucket tool.

    Argo CD

    Role required:
    • Argo CD: Argo CD admin privileges
    • DevOps Change: sn_devops.admin or sn_devops.tool_owner

    Argo CD doesn't provide an option to directly test for webhook connectivity. To configure webhooks, see Configure webhooks in Argo CD manually.
