ServiceNow · Flow Designer
Stop Rebuilding Large Flows — Convert Them into Subflows in Seconds
Learn how to quickly convert existing Flow actions into reusable Subflows and build cleaner, more maintainable automation in ServiceNow.
The Problem
As automation grows in ServiceNow, Flows often become larger and harder to maintain.
Many teams end up using the same logic repeatedly across different Flows — such as validations, approvals, notifications, record updates, or task creation.
The common approach is to copy the same actions from one Flow to another. While this works initially, maintaining duplicate logic across multiple automations quickly becomes difficult.
Reuse the same logic across multiple Flows
Trigger the same automation from Business Rules, Script Includes, or UI Actions
Improve maintainability and readability
Avoid duplicate logic across applications
Rebuilding everything manually into a Subflow takes time, increases maintenance effort, and makes future updates more difficult.
The Better Approach
Flow Designer provides a built-in feature that allows you to quickly convert existing Flow actions into a reusable Subflow.
Instead of rebuilding the same logic again and again, you can maintain it in one place and reuse it wherever needed.
Once created, the Subflow can be reused across multiple Flows and can also be triggered from Business Rules, Script Includes, UI Actions, and other Subflows.

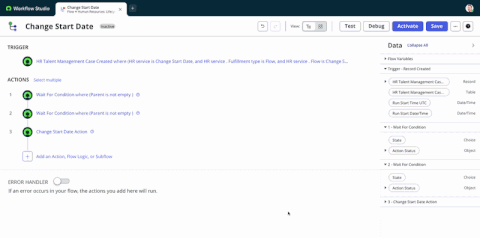

How to Convert Flow Actions into a Subflow
STEP 01
Click “Select Multiple”
Open the Flow in Flow Designer and enable multi-selection to choose multiple actions together.
STEP 02
Select Consecutive Actions
Choose one or more consecutive actions that you want to move into the reusable Subflow.
STEP 03
Open Operations → Convert to Subflow
Open the Operations menu and click “Convert to Subflow”.
STEP 04
Enter the Subflow Name and Click OK
Provide a meaningful Subflow name and ServiceNow automatically creates the reusable Subflow.
What Happens During Conversion?
New Subflow Created
Selected actions are automatically moved into a new reusable Subflow.
Original Flow Updated
The original Flow is updated with a “Call Subflow” step automatically.
Data Pills Preserved
Existing Data Pills and transform functions are preserved during conversion.
Same Application Scope
The Subflow is created within the same application scope as the parent Flow.
Important Points to Remember
The Flow must contain at least two actions to enable “Select Multiple”
Only consecutive actions can be converted into a Subflow
“Set Flow Variables” actions cannot be converted
Define variables directly inside the Subflow instead
Ensure you have write access to the Flow before making changes
Final Thoughts
Subflows help create cleaner, reusable, and easier-to-maintain automation in ServiceNow.
Instead of duplicating logic across multiple Flows, centralize it in a reusable Subflow and maintain it from one place.
