Create multiple RITM under single request depending upon list collector values through workflow

Vishal Birajdar · ‎10-01-2023

Hi Team,

This might be helpful for someone who want to learn something new.

Use Case       : Create multiple RITM under single request depending upon list collector values
                 through workflow without using CartAPI.

Pre-requisites : 1. PDI
                 2. Catalog Item - "Development Laptop (PC)" [OOTB catalog item available on PDI]

Description    : When end user selects the multiple users (let say 3) in “User list” then 3 RITM to
                 be generated under single request.It should calculate the price of all 3 RITM on portal.

Note : Be familiar with three tables “item_option_new” , “sc_item_option” & “sc_item_option_mtom”

1.When we create variable it will be store in table “item_option_new” .
  we will require this table in upcoming steps.

A] item_option_new



2.When end user fills the variables from portal it will create a record in “sc_item_option” and it will
  be unique with each ritm by creating record in “sc_item_option_mtom”table

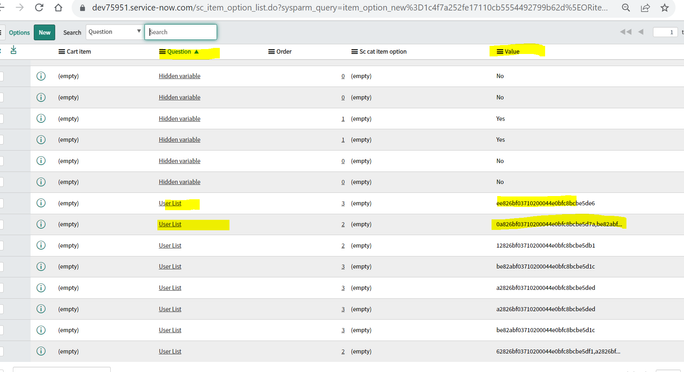

B] sc_item_option

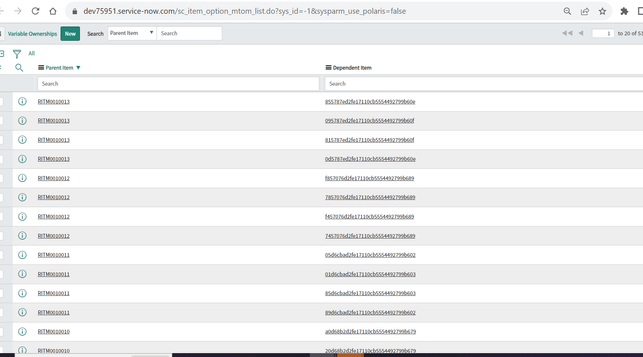

C] sc_item_option_mtom

Now let’s do some development.

Step 1 :  Create two new variables Catalog Item - "Development Laptop (PC)"

First variable

**Second variable

Name       : User List
Type       : List Collector
List Table : User (sys_user)

Name          : Hidden Variable
Type          : Select box
Choices       : 1.Yes 2.No
Default Value : Yes

** Second variable will be hidden & we will use it to divert the workflow so that it will not go in infinite
   loop.

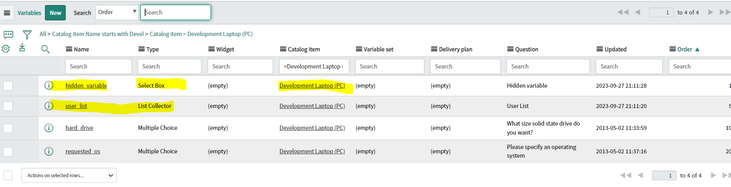

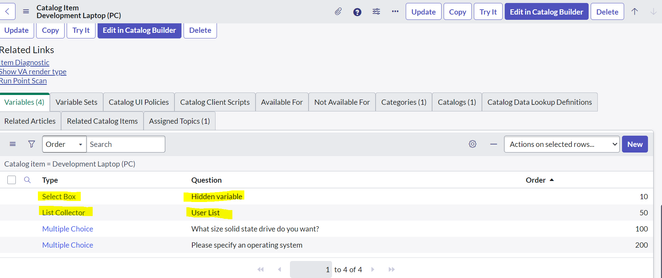

Catalog item should look like this :

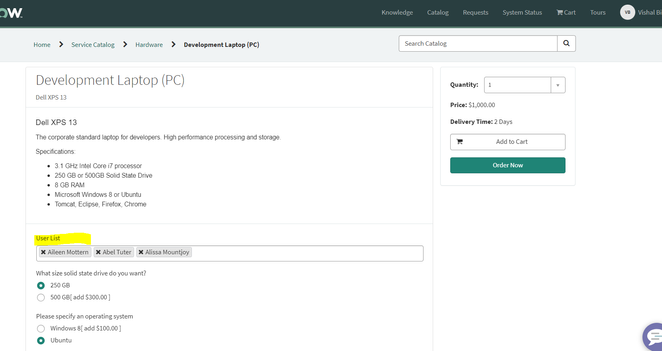

At portal it should be look like below :

Step 2 : Copy the existing workflow from this catalog item [we will update the copied workflow.]

Workflow : Copy of Procurement Process Flow – Hardware
Attach it to the catalog.

Step 3 : Open the Workflow in workflow editor.

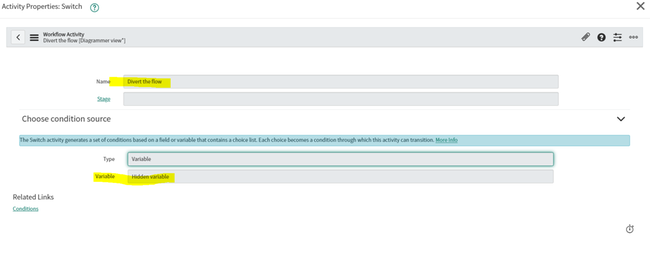

A] Add new  “Switch” workflow activity in workflow on variable “Hidden variable”  as shown in below



B] Add new activity “Run script” with any name  – Put this as blank for now , we will write script to create
   multiple RITM using this script activity.

Connect “No” with “Approval action”  & “Yes” with Run script  activity of switch
Connect Run script activity to approval action.

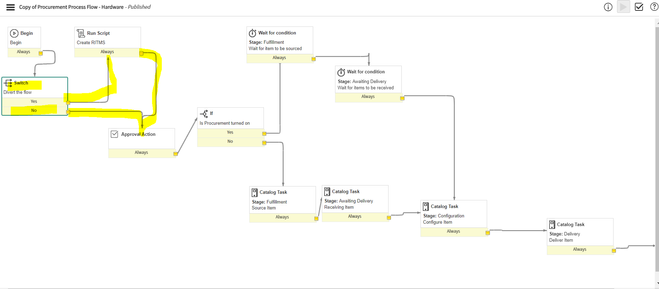

It should look like this

Step 4 : Let’s write script in Run script activity in workflow

/* ============Start of run script activity===============*/
/* 1. Get values from user list variable */
var list = current.variables.user_list.toString();
var array = list.split(',');

/* 2. Get current ritm’s request  this will be used to set request on multiple Ritm to be created*/
var request = current.request;

/* 3. Store sys_id of our catalog item */
var catalogItem = '3cecd2350a0a0a6a013a3a35a5e41c07';  // Not to hardcode (use system property)
//var catalogItem = gs.getProperty(‘name of property where sysid of cat item stored’);

/* 4. loop through array we have created in 1 and create RITM */
/* Loop will initialize from 1 because we have creating one ritm from main request. */
for (var i = 1; i < array.length; i++) {
    /* 4a. Create RITM*/
    var grRitm = new GlideRecord("sc_req_item");
    grRitm.initialize();
    grRitm.cat_item = catalogItem;
    grRitm.price = current.price;
    grRitm.request = request;
    grRitm.requested_for = array[i];
    grRitm.due_date = current.due_date;
    //Store the sys Id in another variable
    var ritmSysId = grRitm.insert();
    /*End of RITM creation*/


/* 4b. Store the variables from catalog Item in an array */
    var itemName = grRitm.cat_item.name;
    var itemVar = new GlideRecord('item_option_new');
    itemVar.addQuery('cat_item.name', itemName);
    itemVar.query();
    var itemVarList = [];
    while (itemVar.next()) {
        itemVarList.push(itemVar.getUniqueValue('name'));
    }
    /*End of Store the variables from catalog Item in an array */


/* 4c.Create a records in sc_item_option  */
/* This table contains value of variable filled by end user , In this case we will update it through script */

 for (var j = 0; j < itemVarList.length; j++) {
        var itemOption = new GlideRecord('sc_item_option');
        itemOption.initialize();

        itemOption.order = j;
        itemOption.item_option_new = itemVarList[j];
        // sys_id of variable "Hidden variable"
        if(itemOption.item_option_new =='1c4f7a252fe17110cb5554492799b62d'){
	itemOption.value = 'No';  // set the value to "No" so flow will divert and not get into loop
        }
      // sys_id of variable "User list"
      if(itemOption.item_option_new =='6cbe3a252fe17110cb5554492799b6e3'){
			itemOption.value = array[i];
         }
      // Store the sysid
        var optSysID = itemOption.insert();

        /* 4d. Create a relationship of RITM with variables value */
        var ritmM2M = new GlideRecord('sc_item_option_mtom');
        ritmM2M.initialize();
        ritmM2M.request_item = ritmSysId; // Parent Item
        ritmM2M.sc_item_option = optSysID; // Dependent Value
        ritmM2M.insert();
    }

     /* 4e. Start the workflow (sys_id of workflow from "wf_workflow" table  “Copy of Procurement Process Flow - Hardware”)*/

 startWorkflow('5c7efae12fe17110cb5554492799b62b');

/*for startWorkflow() – Taken reference from OOTB Business rule from RITM table
Business rule : Start Workflow
*/

}

/* 4. End of loop through array we have created in 1 and create RITM */

/* Attach workflow to Ritm */
function startWorkflow(id) {
    var grRitm1 = new GlideRecord("sc_req_item");
    grRitm1.addQuery("sys_id", ritmSysId);
    grRitm1.query();
    if (grRitm1.next()) {
        var w = new Workflow();
        var context = w.startFlow(id, grRitm1, grRitm1.operation(), getVars(grRitm1));
        if (context != null)
            grRitm1.context = context.sys_id;
	workflow.info("context = " +grRitm1.context);

    }
	grRitm1.update();
}
    /* Send the RITM variables to workflow*/
    function getVars(grRitm1) {
        var vars = {};
        for (var n in grRitm1.variables)
            vars[n] = grRitm1.variables[n];

        return vars;
    }
/*Update User list for main (current) RITM*/
current.variables.user_list = array[0];
current.requested_for = array[0];

/*====================End of run script Activity===============================*/

Validate & Publish the workflow.

Its time to test it.

                        Output & Test Case :

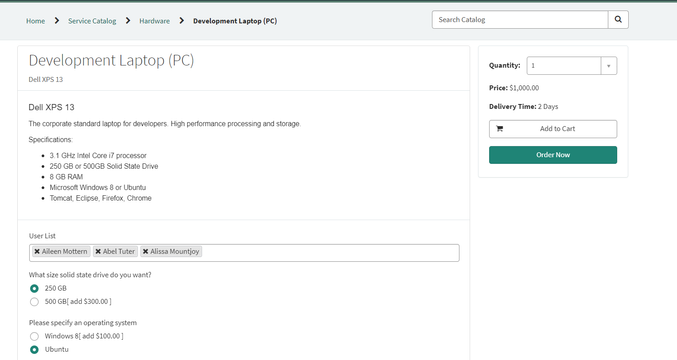

1.Select any random users on form & submit the request  (Order now)

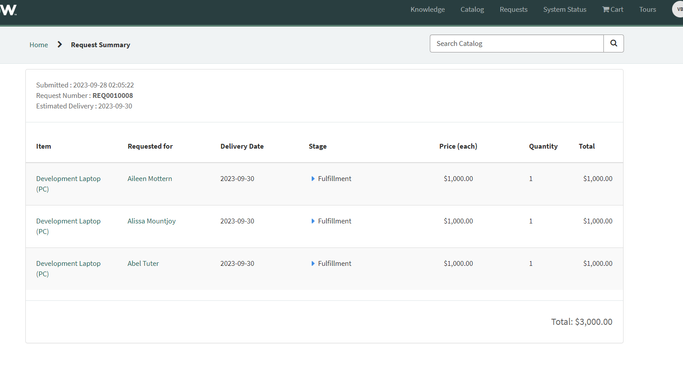

2.Request summary should look like this :

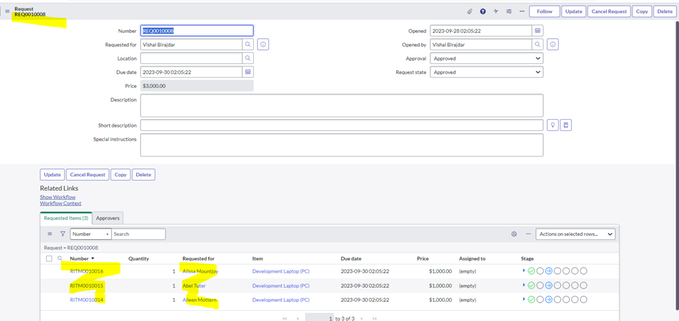

3.We will have 3 ritms  (RITM number will be different in your case ) under one request with separate
  workflow attached.

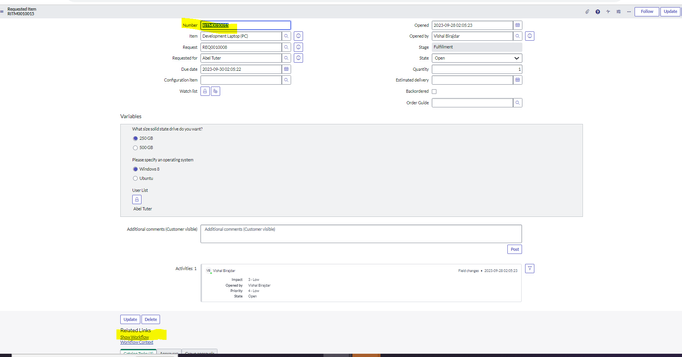

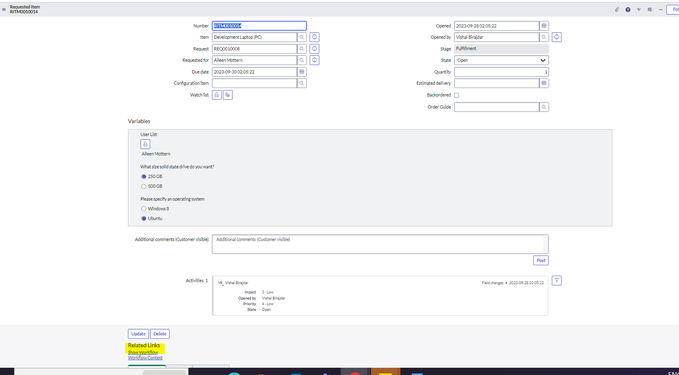

1.RITM0010014 – Main RITM



Workflow (RITM0010014):



2.RITM0010015 – RITM created through main workflow



Workflow –(RITM0010015)



Same with the RITM0010016
