Creating Expense Request using MRV

[Peter Williams]

Good Morning everyone,

i am task to create an expense request form in ServiceNow and have decided to use the MRV for the expense line items.

But one of the requirements is to get the total item cost listed on the form as they are entered into the MRV.

What is the best approach for this?

[Mohith Devatte · Accepted solution]

Hello @Peter Williams ,

IF you want to do it on change of the MVRS then i can suggest you a solution which i used in my requirement and it worked for me .But its bit a lengthy process but we can do .

Follow this process step by step :

1)You need to handle this via hidden widgets on the record producer

create a widget with this code

api.controller = function($scope) {
    /* widget controller */
    var c = this;
var g_form = $scope.page.g_form;
    $scope.$watch(function() {

        return g_form.getValue('your_mvrs_internal_name');
    }, function(value) {
        if (value) {
            var jsonData = JSON.parse(value);

            var total = 0;

            for (var i = 0; i < jsonData.length; i++) {

                total=total+parseInt(jsonData[i].your_cost_field_name_inside_mvrs);
            }

            //Set Value in the total field
          g_form.setValue('total_cost_field_name_outside_mvrs', total);
        }
    });
};

2)After this create a Variable of type Custom and add the Widget  in the widget field like below

Hope this helps

Mark my answer correct if this helps you

Thanks

[Brad Bowman]

Hi Peter,

You can do this with a simple onSubmit Catalog Client Script that Applies to the MRVS, not the Catalog Item.  It will retrieve any previously-added MRVS rows, sum the Cost, then add the Cost of the row that was just added and update the Catalog Item variable all by the time the MRVS dialog window closes.

function onSubmit() {
	var totalCost = 0;
	var mrvs = g_service_catalog.parent.getValue('expense_mrvs'); //MRVS internal name
	if (mrvs.length > 2) { //native UI returns [] for empty MRVS value which causes a parsing error
		var obj = JSON.parse(mrvs);
		for (var i = 0; i < obj.length; i++) {
			totalCost += parseInt(obj[i].cost); //your MRVS variable name
		}
	}
	totalCost += parseInt(g_form.getValue('cost'));
        if (this) { //Service Portal method
            this.cat_g_form.setValue('total_cost, totalCost); //your variable name
        } else { // native UI method
            parent.g_form.setValue('total_cost', totalCost); //your variable name
        }
}

If you are using Service Portal, there's another little onLoad script you need that applies to the Catalog Item:

function onLoad() {
	if (this) {//we only need to do this for Service Portal
		//We need to make the g_form object for the parent item available from the MRVS window
		this.cat_g_form = g_form;
	}
}

[Peter Williams]

Thank you for this Brad,

do you know of a onChange script that we can used to sum up the total within the request and not wait on after its submitted?

[Peter Williams]

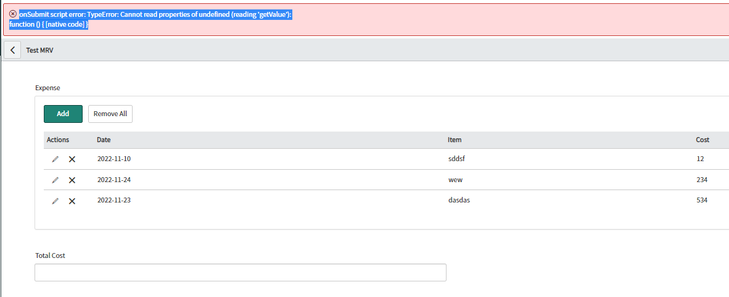

i am getting this from the script

function onSubmit() {
//Type appropriate comment here, and begin script below
var totalcost = 0;
var expense = parent.g_form.getValue('expense');
if(expense.length >2){
var objExpense = JSON.parse(expense);
for (var i=0; i<objExpense.length; i++){
totalcost +=parse(objExpense[i].cost);
}
}
totalcost+=parseInt(g_form.getValue('cost'));
parent.g_form.setValue('total_cost', totalcost);
}

[Brad Bowman]

It sounds like you created the script with the Applies to field = 'A Catalog Item' instead of = 'A Variable Set'.  MRVS onSubmit triggers when the Add button is clicked within the MRVS dialog window after populating the MRVS variables, so by the time you see the Total Cost variable back on the Catalog Item form, it will be updated - and all of this happens before the Catalog Item is submitted.
