I have an requirement to add more fields on EVAM data source card. I have tried it but it is now taking more than three fields.
For more details please find the attached screen shot.
1. View Template
2. Card.
View template:
{
"component": "now-card-evam-record",
"staticValues": {
"highlightedHeaderIcon": {
"translatable": false,
"key": "status-fill"
},
"highlightedHeaderBkgColor": {
"translatable": false,
"key": "positive"
},
"subtitleIcon": {
"translatable": false,
"key":"calendar-fill"
},
"imageType": {
"translatable": false,
"key":"image"
},
"subtitleImageType": {
"translatable": false,
"key":"avatar"
},
"detailLabelOne": {
"translatable": true,
"key":"Start Date"
},
"detailLabelTwo": {
"translatable": true,
"key":"Percent Complete"
},
"detailLabelThree": {
"translatable": true,
"key":"State"
},
"detailLabelTFour": {
"translatable": true,
"key":"end_date"
}
},
"mappings": {
"highlightedHeaderLabel": "status",
"textHeaderLabel": "",
"titleLabel": "short_description",
"imageURL": "photo",
"subtitle": "project_manager",
"subtitleAvatarName": "project_manager",
"subtitleAvatarURL": "project_manager.avatar",
"detailValueOne": "start_date",
"detailValueTwo": "percent_complete",
"detailValueThree": "state",
"detailLabelTFour": "end_date"
},
"actionMappings": {
"mainActions": [],
"overflowActions": [
],
"clickAction": "navigation"
Hello @SS72
just in case you did not find a solution for this, I got the answer:

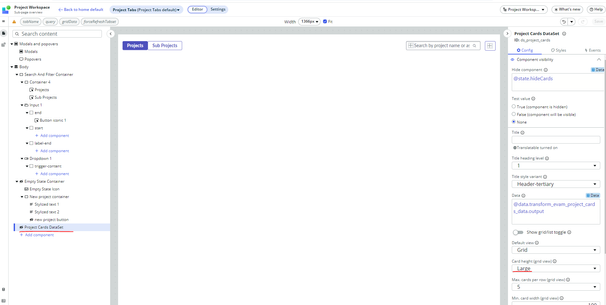

1. in ui builder open the Project Tabs default page
Click project cards dataset component, go to properties,config tab, under default view grid, change the card height to Large.
2. Go to to this table and find Project Card: sys_ux_composite_data_template:
Edit the template and add more fields for example:
},
"detailLabelThree": {
"translatable": true,
"key":"Percent Complete"
},
"detailLabelFour": {
"translatable": true,
"key":"Phase"
}
"mappings": {
"highlightedHeaderLabel": "status",
"textHeaderLabel": "",
"titleLabel": "short_description",
"imageURL": "photo",
"subtitle": "project_manager",
"subtitleAvatarName": "project_manager",
"subtitleAvatarURL": "project_manager.avatar",
"detailValueOne": "start_date",
"detailValueTwo": "end_date",
"detailValueThree": "percent_complete",
"detailValuefour": "phase"
Let me know if this helps!
Regards.
Thanks for this - this is really helpful. I've been able to locate the UI builder page and the two template records. I've added a few fields, and when I look in the UI Builder data objects for the data page, I see the extra fields are there. But I'm not seeing any extra fields on the Project Workspace template.
The View template has this:
and
and the EVAM View Config has the additional table fields:
which appear correctly in the UI Builder's "EVAM Project Cards Metadata" object:
However the 'Transform Project Cards Metadata' script action in the UI builder can't run, with the following error:
I don't know if this is related, but when I made the change to the View Template record, I saw these errors:
I've also changed the default size of the cards to 'large' as you mention.
However, the extra fields still aren't appearing on the cards.
Is there an extra step needed, or can you see anything I've slipped up on?
