Flow Designer actions are not captured in update set

[Vishal66]

When we tried moving update set from Dev to Test, Updates which are supposed to be captured on Flow Designer actions are not captured as expected.

Example:

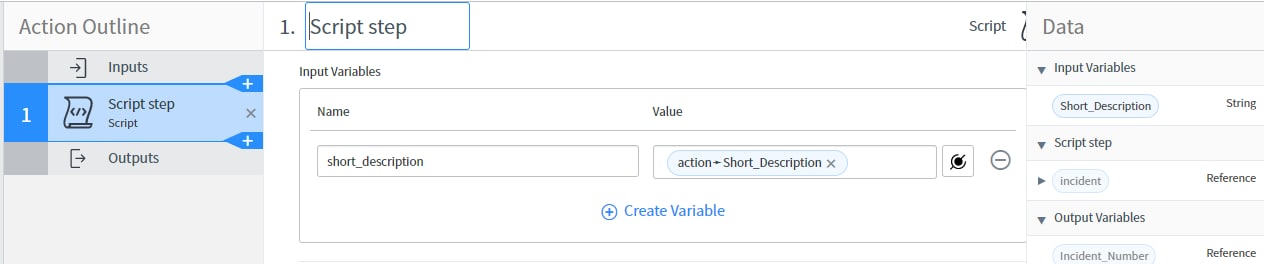

We have created an action in flow designer with some input and output values as referred below snapshot:

We tried capturing this input variables in the update set and moved to test instance which moved as below:

Can anyone help me out understanding how to capture input variables for a script step in the update set?

Regards
Vishal

[Prateek kumar]

Check this if it helps.

https://community.servicenow.com/community?id=community_blog&sys_id=09becbf3db589b403882fb651f961986

[robertgeen]

Vishal,

I have also had issues where sometimes it randomly leaves out a reference or something. I would open a HI ticket and ask it to be assigned to the update set team to look at. It hasn't been as bad in Madrid/New York but I had a heck of a time with it in London. There was also a scope issue in London as well but I think they fixed that (I always just skipped the one it complained about when that happened).

[Sagar Pagar]

Hi Vishal,

To capture input variables for a script in the update set follow the following step-

Step 1- Navigate to System Definition ---> Dictionary

Step 2- Create New Dictionary entries ----> New
Table- Flow Inputs[sys_hub_flow_input]
type- script
Column label- variable name

Step3- in attributes set update_synch as true
"update_synch=true"

it will capture the input variables for a script in the update set.

Refer image for clear details.

Hope this help. Please mark the answer as helpful/correct.

Regards,
Sagar Pagar
www.dxsherpa.com

[kushal Tayade]

Republish the flow, make sure that the sys_update_xml's generated for trigger_instances and action_instances have "sys_element_mapping" or "sys_variable_value" pieces in them and then move them over.

See below HI Article

KB0782932
