Flow that automates adding/removing group type to a user group after Request from Catalog Item

[AlexanderH23091]

Hi all,

i need some help.  We have a catalog item for users to request if they want to add or remove group types like itil etc. The user puts the information in variables and after that i call them in the flow.

And how can i change the group type? If i select the table user group there is only a field Type. And in this field i cannot enter either the variable or the sysid of the variable.

Has someone a solution? Or an idea how i can automate it. It must be via Catalog Item the request.

Thanks

Alex

[G Ponsekar]

Hi @AlexanderH23091 ,

You can try with below Flow Steps:

1. Get Catalog Variables: Start your flow with the trigger from the Service Catalog and use the 'Get Catalog Variables' action to retrieve the variables from your item.
2. Look Up the Group Record: Use the 'Look Up Record' action to find the specific user group record that needs to be modified.
   • Table: User Group [sys_user_group]
   • Condition: [Sys ID] [is] [your group_to_modify variable]
3. Use a Flow Logic 'If' block: Drag the action_type variable into the condition to check if the user wants to "Add" or "Remove".
4. Update the Record (Add or Remove): Place an 'Update Record' action inside both the 'If' and 'Else' blocks.
   • Record: Use the data pill from the 'Look Up Record' step [2->Group Record].
   • Fields: Select the Type field.
   • Action: Click the script icon (</>) next to the 'Type' field to open the script editor.

Inline Script for ADDING a Group Type

This script gets the current list of types, adds the new one, and returns the updated list.

javascript

// Assumes you have looked up the group record in a previous step (e.g., step 2)
var currentTypes = fd_data._2__look_up_record.record.type.toString();// Get the sys_id of the type to add from your catalog variable
var typeToAdd = fd_data._1__get_catalog_variables.group_type_to_change.toString();

if (currentTypes == '') {
    return typeToAdd; // If the list is empty, just add the new type} else {
    // Combine the current list with the new type, separated by a comma
    return currentTypes + ',' + typeToAdd;
}

Inline Script for REMOVING a Group Type

This script converts the list to an array, removes the specified type, and converts it back to a string.

javascript

// Assumes you have looked up the group record in a previous step (e.g., step 2)
var currentTypes = fd_data._2__look_up_record.record.type.toString();// Get the sys_id of the type to remove from your catalog variable
var typeToRemove = fd_data._1__get_catalog_variables.group_type_to_change.toString();

// Split the comma-separated string of sys_ids into an array
var typesArray = currentTypes.split(',');

// Find the index of the type to remove
var index = typesArray.indexOf(typeToRemove);

// If the type is found, remove it from the array
if (index > -1) {
    typesArray.splice(index, 1);
}

// Join the array back into a comma-separated string and return it
return typesArray.join(',');

If I could help you with your Query then, please hit the Thumb Icon and mark as Correct !!

Thanks, GP

[AlexanderH23091]

Hi Ponsekar,

thank you for your quick response. I will try this

[AlexanderH23091]

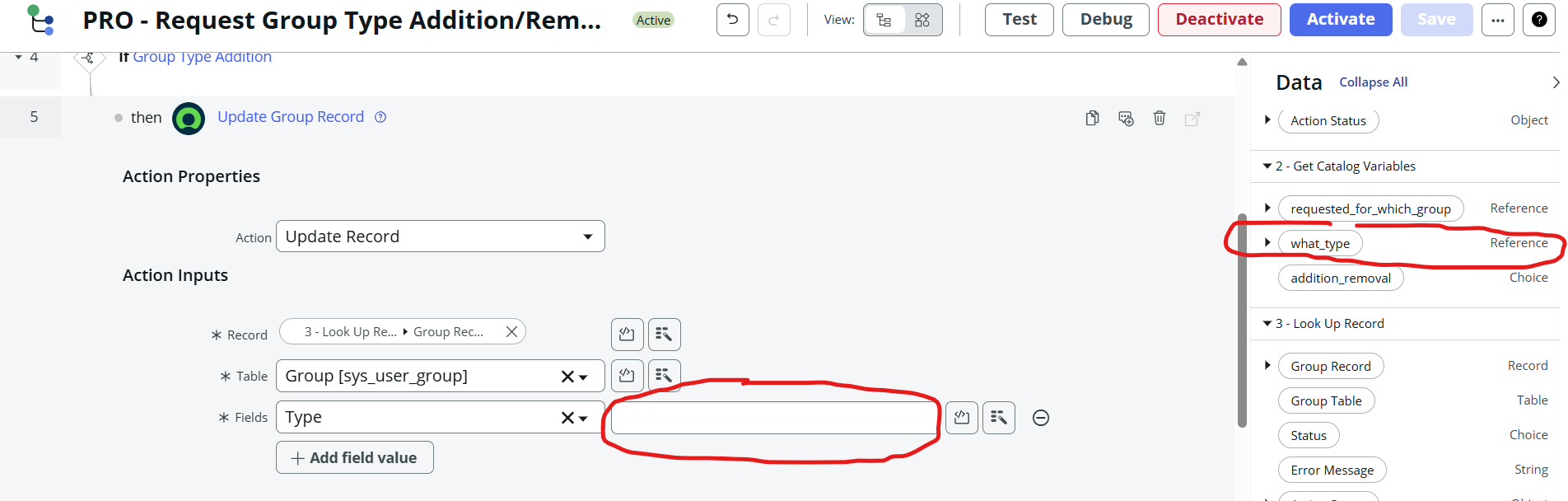

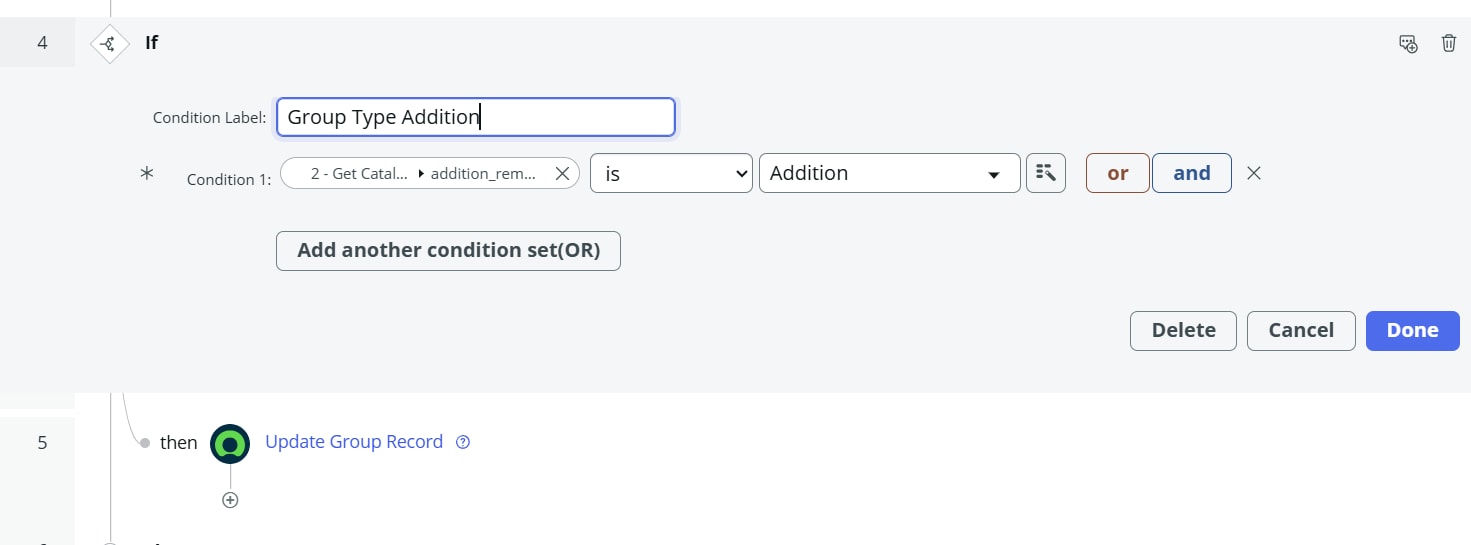

I still have the problem with the type field see the attached pictures. Or maybe i got something wrong

[AlexanderH23091]

Ah sorry i found it ok sorry, i didnt see the name property. This works
