How to add phone icon in the place of info icon at right side of caller field

[srinivas snow25]

How to add phone icon in the place of info icon at right side of caller  field

[Community Alums]

Hi @srinivas snow2295 ,

This explains how to display special icons on Incident form (Caller field) based on user profile settings.

Example :

If ‘Affected Person’ belongs to ‘VIP’ then display ‘VIP’ icon image in ‘Users’ List view as well as on ‘Incident’ form

Solution

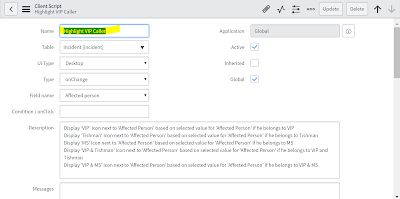

- Create a Client Script as shown below

- Upload the required icon image to System UI -> Images
- Write down below code under script.

if (caller.vip == ‘true’) {
callerLabel.setStyle({backgroundImage: “url(images/icons/vip.gif)”, backgroundRepeat: “no-repeat”, backgroundPosition: bgPosition, paddingLeft: ‘30px’ });
}

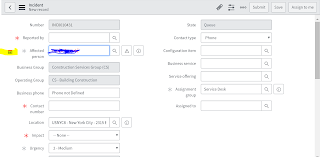

- Whenever ‘Affected Person’ field value is selected, if the selected user belongs to ‘VIP’ then ‘VIP’ flag will be shown on Incident as shown below.

- To display the icons in List view , Below are the steps
- Goto Sytem UI -> Field Styles

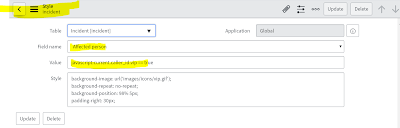

- Create new one as shown below

- Below is how shown in List view.

Mark my answer correct & Helpful, if Applicable.

Thanks,
Sandeep

[Community Alums]

Hi,

Any update to this ?Any follow-up required? if not

Kindly mark the answer as Correct & Helpful both such that others can get help.

Thanks,
Sandeep

[Ankur Bawiskar]

@srinivas snow2295

Which caller field are you referring? incident?

You can add the icon using UI macro for the field if it's reference type using the field attribute

ref_contributions=UI Macro_name

check this link

UI Macro in ServiceNow

Regards
Ankur

[Ankur Bawiskar]

@srinivas snow2295

Hope you are doing good.

Did my reply answer your question?

If my response helped please close the thread by marking appropriate response as correct so that it benefits future readers.

Regards
Ankur
