How to filter select box selection base on another field selected option? Catalog Item Form

Gian1
Tera Contributor

We have catalog item that has the following field


Look up select box field called Campus - Which references the u_campus field in the table cmn_location

and

Reference field called Exam Room Location - Which references the cmn_location



What we want is when a user Selects a campus for example "City Campus" The exam room location selection should only show the rooms from the city campus and if they change to North Campus the exam room location selections should only show rooms from north campus.



I tried to do an onchange script that did not work.



Any help will be much appreciated. Thank you





1 ACCEPTED SOLUTION

Hi @Gian1



Ok got it...

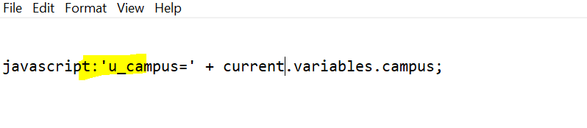

reference qualifier should be highlighted in below screenshot






Actually , colon (:) will get converted here in community text editor.



Vishal Birajdar
ServiceNow Developer

I know one thing, and that is that I know nothing.
- Socrates

View solution in original post

8 REPLIES 8

Vishal Birajdar
Giga Sage

Hi @Gian1 ,



You can use Advanced reference qualifier on "Exam Room Location" field



javascript : 'u_campus=' + current.variables.campus;

u_campus - field from cmn_location

campus - variable from catalog item // use your variable backend name



Vishal Birajdar
ServiceNow Developer

I know one thing, and that is that I know nothing.
- Socrates

Thank you for your reply, but unfortunately it's not working

Hi @Gian1



Can you provide some screenshot if possible..?? (reference qualifier of Exam room location and look up select box field type specification)



Vishal Birajdar
ServiceNow Developer

I know one thing, and that is that I know nothing.
- Socrates

This is the Campus field in Cat Item





This is the exam room location field in cat item
