How to populate dropdown values based on another dropdown value

SSA1 · ‎10-05-2021

Hi,

I have issue where there are two drop downs in Incident form.

Product Line - this is populating from choices we have added to sys_choice table

Based on the selected product line value related Products have to populate into the Products drop down.

I'm populating these products value from Choice mapping custom table.

In Incident.

Product Line-String

Product column - String

See below screenshots.

I have written a Onchange Client script as below but can't populate 'Product' drop down.

Can anyone please give some guidance on this how to achieve this.

var prod_line = g_form.getValue('u_p_line');
var gr=new GlideRecord('u_choice_mapping');
gr.addQuery('u_product_line',prod_line);
gr.query();
while(gr.next())
{
     g_form.setValue('u_product',gr.u_product_choice_mapping);

}

Voona Rohila · ‎10-05-2021

Use the same code in OnChange script

Sample code:

function onChange(control, oldValue, newValue, isLoading) {
if (isLoading || newValue == '') {
return;
}
g_form.clearOptions('u_integer_f');
//your code here
var ga = new GlideAjax('HelloWorld');
    ga.addParam('sysparm_name', 'helloWorld');
    ga.addParam('sysparm_user_name', newValue);
    ga.getXML(HelloWorldParse);

    function HelloWorldParse(response) {
        var answer = response.responseXML.documentElement.getAttribute("answer");
        //  alert(answer);
        var x = answer.split(",");
        for (var i = 0; i < x.length; i++)
            g_form.addOption('u_integer_f', x[i], x[i]);

    }
}

Mark it helpful if this helps you to understand. Accept solution if this give you the answer you're looking for
Kind Regards,
Rohila V
2022-25 ServiceNow Community MVP

View solution in original post

Voona Rohila · ‎10-05-2021

Hi SSA

Use addOption method

Syntax : g_form.addOption(<fieldName>, <choiceValue>, <choiceLabel>, <targetIndex>);

https://servicenowguru.com/scripting/client-scripts-scripting/removing-disabling-choice-list-options...

Mark it helpful if this helps you to understand. Accept solution if this give you the answer you're looking for
Kind Regards,
Rohila V
2022-25 ServiceNow Community MVP

SSA1 · ‎10-05-2021

it's not working. I think since I'm getting from directly from a customer table. There's nothing called choiceValue. But I have used choice Label value to choiceValue . But it's not working.

Voona Rohila · ‎10-05-2021

Hi ssa

Try this

g_form.addOption('u_product',gr.u_product_choice_mapping, gr.u_product_choice_mapping);

Mark it helpful if this helps you to understand. Accept solution if this give you the answer you're looking for
Kind Regards,
Rohila V
2022-25 ServiceNow Community MVP

Voona Rohila · ‎10-05-2021

Try this:

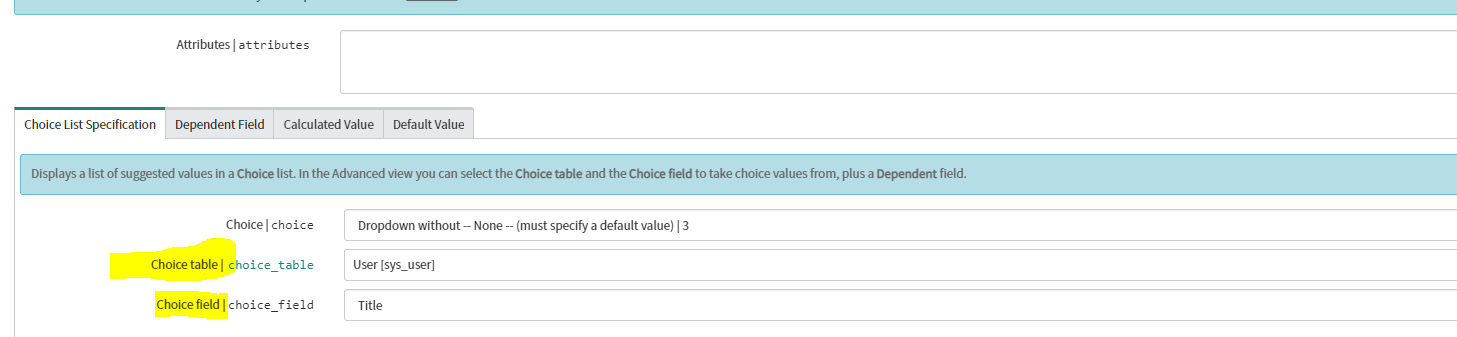

Specify Your choice table and field

Table - u_choice_mapping, Field - u_product

Remove this

Use Below code in your client script:

var prod_line = g_form.getValue('u_p_line');
var gr=new GlideRecord('u_choice_mapping');
gr.addQuery('u_product_line',prod_line);
gr.query();
while(gr.next())
{
g_form.addOption('u_product',gr.u_product_choice_mapping,gr.u_product_choice_mapping);


}

Instead of directly using gliderecord in Client script, Try to use GlideAjax in returning choice values.

Mark it helpful if this helps you to understand. Accept solution if this give you the answer you're looking for
Kind Regards,
Rohila V
2022-25 ServiceNow Community MVP
