Issue with refresh token

[Rithvik]

I used the below code, to generate access token with refresh token, from the below code I am getting access token but for refresh token I am getting "NULL" what is the reason for it? any idea?

username and passwords are correct only and also passed correct application registry

var oAuthClient = new GlideOAuthClient();
var params ={grant_type:"password", username:"itil", password:'itil'};
var json =new JSON();
var text = json.encode(params);
var tokenResponse = oAuthClient.requestToken('TestClient', text);
var token = tokenResponse.getToken();

gs.log("AccessToken:"+ token.getAccessToken());
gs.log("AccessTokenExpiresIn:"+ token.getExpiresIn());
gs.log(" RefreshToken:"+ token.getRefreshToken());

[Community Alums]

Hi Rithvik,

You can refer this :

https://community.servicenow.com/community?id=community_question&sys_id=047c9ac3dbb97340feb1a851ca961978

https://community.servicenow.com/community?id=community_question&sys_id=12cf1bfbdbf933000be6a345ca9619c5

Mark my answer correct & Helpful, if Applicable.

Thanks,

Sandeep

[Rithvik]

I do that, but can you please verify my above code and help me what is wrong in that?

[Rithvik]

@Saurav @shloke04 @Jaspal Singh

[shloke04]

Hi @Rithvik

Sharing below step by step procedure on how you need to do this. Generate Access token and also Refresh token automatically and works for me in my PDI as well:

OAuth 2.0 users access instance resources through external clients by obtaining a token rather than by entering login credentials with each resource request.

#Firstly, it is important to understand about Access token & Refresh Token

Access token: - An instance issues access tokens to clients that have a valid authorization grant. Each access token has a specific scope, lifespan, and other attributes.

By default, an instance issues access tokens with a 30-minute lifespan in the scenario where the instance is the OAuth provider. For third-party tokens, 30 days.

Refresh Token:- A credential that a client uses to obtain new access tokens without requiring additional user authorization. An instance issues a refresh token to a client when it is first authorised to have an access token.

By default, an instance issues refresh tokens with a 100-day lifespan in the scenario where the instance is the OAuth provider. For third-party tokens, 365 days.

Steps For Target Instance (Inbound Action)

Step 1: - Navigate to Application Registry-->Create New--> First give the name & after saving a default Client ID and Client Secret are generated along with Refresh & Access Token

Step 2: - Navigate to Scripted Rest API-->Create New--> Fill the required mandatory details

Step 3: - Create Resource and define HTTP method as POST

Step 4: - After that we need to write script within scripted Rest API as shown below:

Step 5:-  Mark as true on Require Authentication

# Create a User with Password by assigning role:- rest_service & web_service admin and share that username & password to Source Instance(Outbound Action)

Once this is done, next step would be to cover the Outbound part with steps mentioned below:

STEPS OF Outbound ACTION ON Source Instance

Step 1: - Navigate to System OAUTH--> Application Registry-->Create New

Here, we need to fill the Client ID and Client Secret which shared by Target Instance along with Token URL & Grant type--> Resource Owner Password Credentials

After saving the Application Registry, by default it created

Step 2: - Navigate to Rest Message --> Create New --> Fill the required field details

So here we define the Endpoint which was provided by SOURCE 1 i.e. –

 https://dev****.service-now.com/api/572717/create_incident_pdi

Step 3: - Define Authentication Type

Step 4: - Define HTTP Request

Step 5: - Define HTTP Methods named Create Incident PDI with OAuth 2.0 Authentication

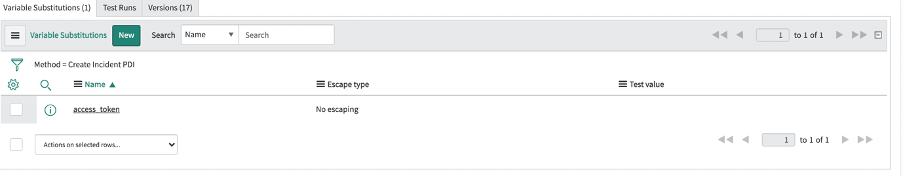

After saving, a default variable substitution is created called access token

Step 6: - Navigate to Script Include--> Create New

Step 7: - Navigate to System Definition-->Schedule Job-->Create New and Call the Script Include and Function along with timeline on the bases of which Refresh token generated

Step 8: - Create New System Properties and paste the value which we get from Schedule Job-Execute UI Action (Refer to Step 7)

Step 9: - Write down a After Business Rule on Table-Incident by defining Insert Operation

# After completion, test it by creating an Incident Record on Source Instance (Outbound Action) and checked that record is created on Target Instance (Inbound Action) or not.

Hope this helps. Please mark the answer as correct/helpful based on impact.

Regards,
Shloke
