Flow designer stage not updated by business rule

cnshum
Tera Contributor

Hi

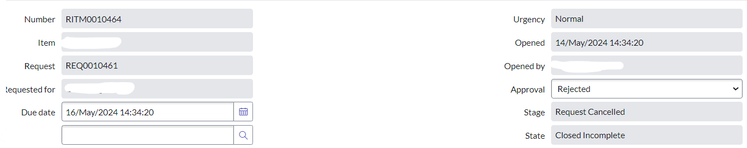

I am using a business rule to set the RITM stage = request cancelled when my sctask state = closed incomplete. On the RITM stage, it is set as request cancelled but in the flow sequence, the stage does not advance to request cancelled. For the flow stages, I am using the OOB sc_req_item stage set.

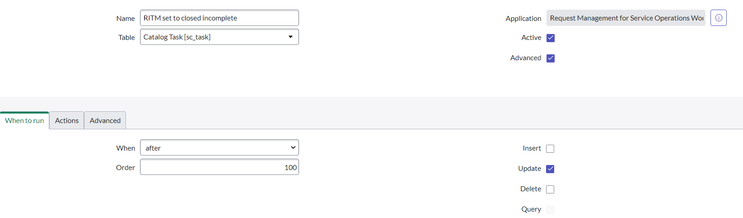

1. business rule


script for business rule:

(function executeRule(current, previous /*null when async*/) {

    var ritm = current.request_item.getRefRecord();

    if(ritm.state != 4 && ritm.stage != 'Request Cancelled' ){

        //set ritm stage = request cancelled and state = closed incomplete
        ritm.state = 4;
        ritm.stage = 'Request Cancelled';
        ritm.update();

        //set req state = closed incomplete
        var req = current.request.getRefRecord();
        req.state = 4;
        req.update();

        var ritmNumber = current.request_item.number;
        var sctaskNumber = current.number;
        gs.info(ritmNumber + " - " + sctaskNumber + " is closed incomplete");
        gs.info(ritmNumber + " - state is closed incomplete");
    }

})(current, previous);


On the RITM stage, it is set as request cancelled but in the flow sequence, the stage does not advance to request cancelled.





flow stage:












6 REPLIES 6

Sohail Khilji
Kilo Patron
Kilo Patron

Hi @cnshum,



Did you set the value of stage in flow ?

did you use update record after that ?



May be the flow has not recevied the update and hence it did not move the stage. Try and let me know.


☑️ Please mark responses as HELPFUL or ACCEPT SOLUTION to assist future users in finding the right solution....

LinkedIn - Lets Connect

Hi



I am updating the stage using the business rule. Is that not sufficient? Or I need to set the stage in the flow as well?

my be the update on BR is not obained.


☑️ Please mark responses as HELPFUL or ACCEPT SOLUTION to assist future users in finding the right solution....

LinkedIn - Lets Connect

Ok I have tried setting the stage using both the BR and flow designer. Now I am seeing 2 "request cancelled" stage
