Add an annotation to a flow history entry

Add a text description to a flow history entry. Summarize the purpose or contents of a particular flow history entry.

始める前に

Role required: flow_designer or admin

このタスクについて

Annotations are only visible from the sidebar History view.

手順

1. Navigate to All > Process Automation > Workflow Studio.
2. On the homepage, select Flows.
3. Open the flow whose flow history entries you want to annotate.
4. Select Edit flow.
5. From the sidebar view, select the History icon.

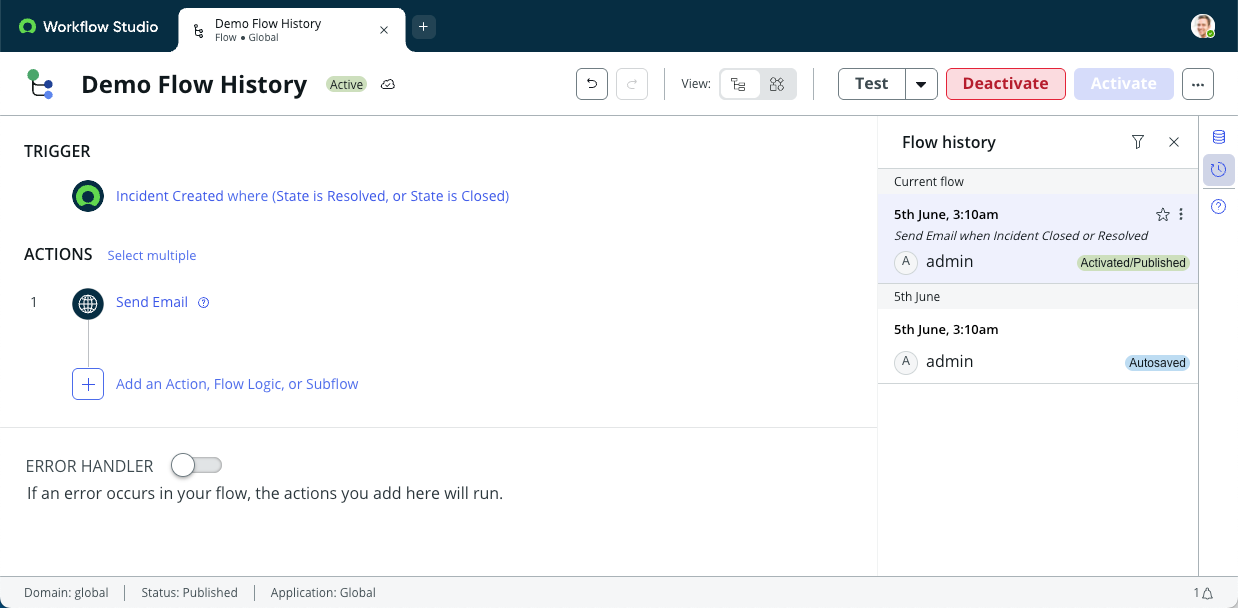

6. From the list of flow history entries, select the entry that you want to annotate.

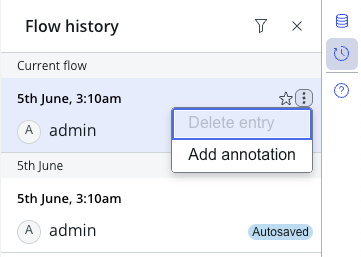

7. From More actions menu, select Add annotation.

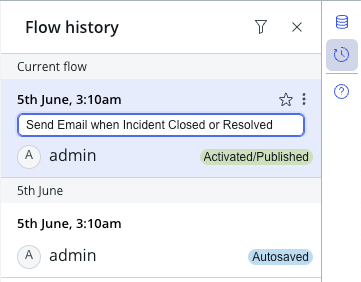

8. In the text box, enter the text of the annotation.

9. Press Enter to save the annotation.


次のタスク

You can change the annotation using the Modify annotation option.
