Restore a subflow to a previous flow history entry

Restore a subflow to a previous configuration. Create a new flow history entry for the restore operation.

始める前に

Role required: flow_designer or admin

このタスクについて

You can restore a subflow when you want to set the current configuration to that of a previous flow history entry configuration. A restored subflow duplicates the actions, flow logic, subflows, and data configuration from a previous flow configuration. Restoring a subflow also creates a new flow history entry item.

手順

1. Navigate to All > Process Automation > Workflow Studio.
2. On the homepage, select Subflows.
3. Open the subflow that you want to restore.
4. Select Edit subflow.
5. From the sidebar view, select the History icon.
6. From the list of flow history entries, select the entry whose configuration you want to restore.

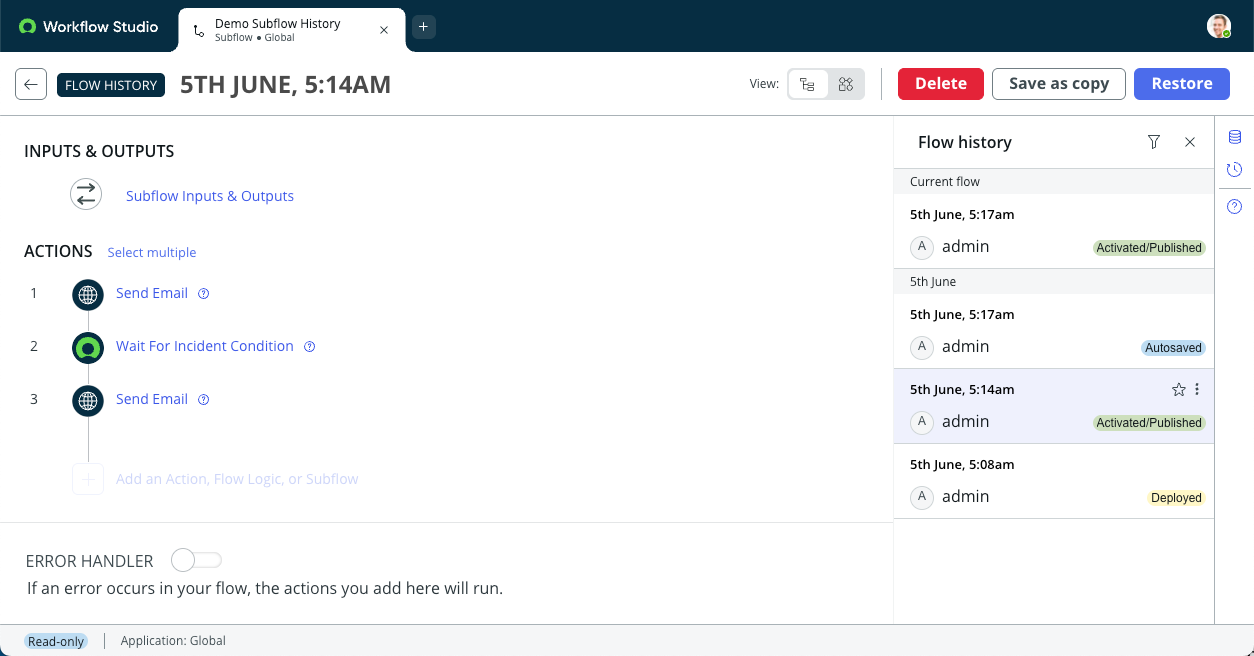

   Workflow Studio displays the configuration of flow history entry in the Flow History view.
7. From the Flow History view, select Restore.

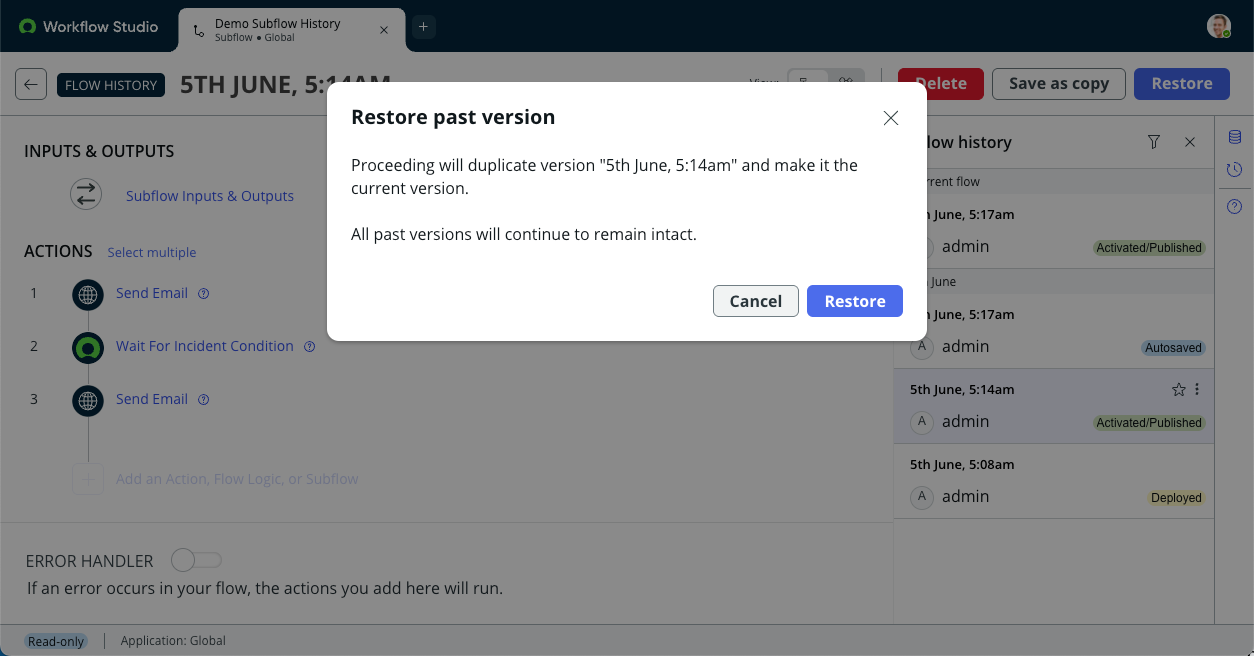

8. From the Restore confirmation dialog box, select Restore.


タスクの結果

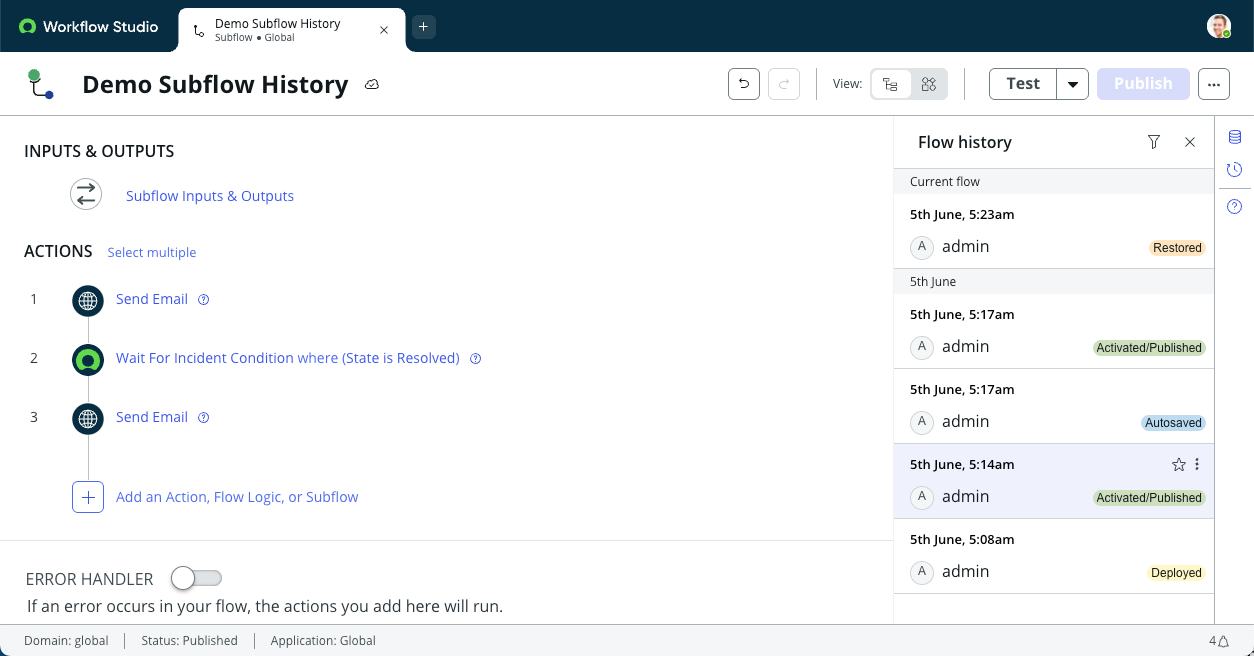

Workflow Studio displays the restored subflow configuration.
