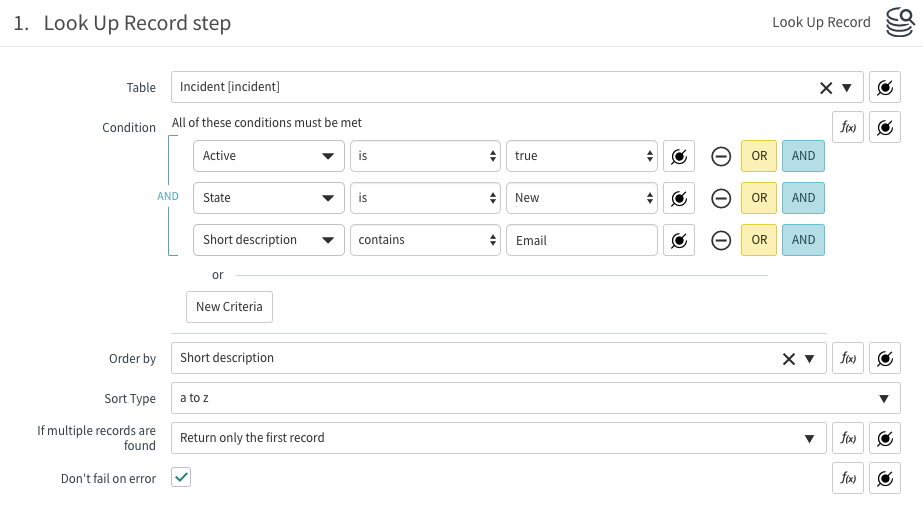

Look Up Record step
Look up a record from any table based on defined conditions.
Roles and availability
Available as an Workflow Studio action step. Users with the action_designer role can create a custom action with one or more action steps.
Fields
| Field | Description |
|---|---|
| Table | Select a table from the list. |
| Conditions | Set static or dynamic conditions to filter records. To define a static condition applied each time the action runs, define the conditions with the condition builder. To enable flow designers to dynamically apply conditions, define an input of type Conditions and drag-and-drop the input data pill into the Conditions field. When building a condition that looks up the value of a reference field, use a data pill that explicitly provides the Sys ID value. Ensure the condition has the format [reference field][is][Reference type data pill->Sys ID]. For example, both the Change and Incident tables contain a reference field to the User table. To look up change records where the requester is the caller from an incident record, create the condition [Requested by][is][Trigger->incident record->Caller->Sys ID]. [Requested by][is][action->incident->Caller->Sys ID] where incident is an input variable for an incident record. |
| Order by | Determines how to sort results when more than one record matches the defined conditions. Select the field you want to use to sort results. |
| Sort Type | Select whether to sort alphabetically in ascending or descending order. |
| If multiple records are found | Determines what is returned if more than one record matches
the defined conditions.
|
| Don't fail on error | Determines whether to fail the flow if a record can't be found. |
Outputs
These outputs appear in the Data panel. You can use them as inputs elsewhere in your flow.
- Record
- Data type:
Record
Record found based on the conditions you specified in the Conditions input.
- Table
- Data type:
Table
Name of the table associated with the returned record.
- Status
- Data type:
Choice
1 if a record was found successfully, and 0 if there was an error.
- Error Message
- Data type:
String
Message containing details about why the record could not be found.
注:This output's value is only populated if the Status output's value is 0.
Action error evaluation
- If this step fails
- Data type: Choice
Option to continue running the next step or go to error evaluation. To use the step status code or message for a custom action error condition, see Action error evaluation.
