Markdown options for read-only text

Enable markdown formatting for ReadOnlyText components in CPQ layouts to enhance text presentation. Use syntax for bold, italics, lists, links, images, and dynamic field values to create clear, engaging, and context-aware display text in configurations.

This article describes the markdown syntax and behaviors available to administrators when a text field is defined on a native CPQ UI layout with component display type ReadOnlyText. For a broader discussion of layout options, see CSV layout upload.

To apply markdown formatting to a ReadOnlyText component:

1. In the layout editor, open the field properties (button with cog icon)
2. Add the following as the raw value: { "enableMarkdown": true }
3. Use the following markdown syntax in the text field value.

Table 1. Markdown formatting options

Formatting Option	Syntax	Output	Notes
Bold	**this will be bold**	bold text	A double underscore instead of the double * will also work
Italics	*this will be italic* _this will be italic_	italic text	A single underscore instead of the single * will also work
Unordered List	Item\r- Item\r- Item	Item Item Item
Ordered List	1.Item\r2. Item\r3. Item	Item Item Item
Newline	\n
Link	[link display text] (https://www.example.com)	link display text	Any JavaScript entered will be sanitized
Image		N/A
Table	| Header1 | Header2 |\n|---|---|\n| Row1Col1 | Row1Col2 |\n| Row2Col1 | Row2Col2 |	Header1 Header2 Row1Col1 Row1Col2 Row2Col1 Row2Col2	By default, columns are left-aligned. To right-align, use ---:. To center, use :---:. By default, table borders are off. To add borders, add theme property Markdown-table-borderWidth: 1px.
Dynamic Text	{{fieldVariableName}}		Outputs the value of the selected field in the text
Dynamic Non- Field Text	{{txn#rowNumber}}		Outputs the value of the dynamic text based on context Currently, only rowNumber in a txn line is supported

This markdown syntax is the same as that available for field help popups.

Returning strings with Markdown

When you return a string with Markdown, enclose the string in double quotes, especially when using escaped characters such as \n for line breaks. Using single quotes may prevent Markdown from rendering properly and can lead to unexpected results.

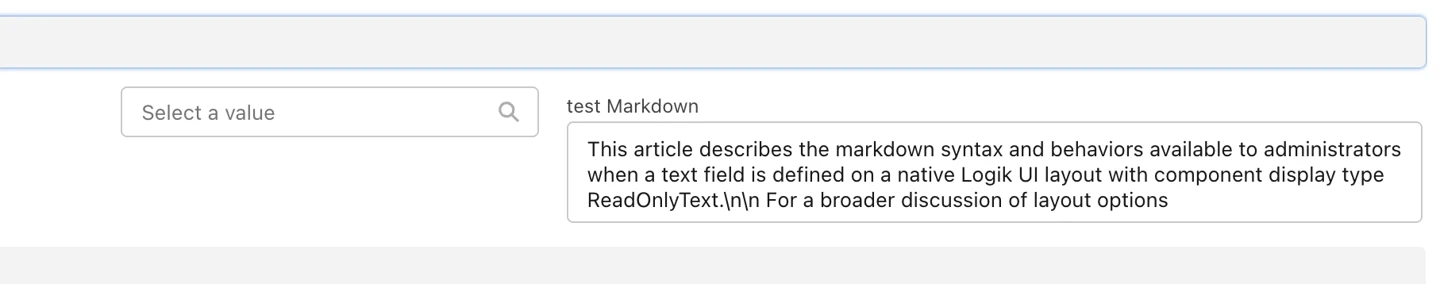

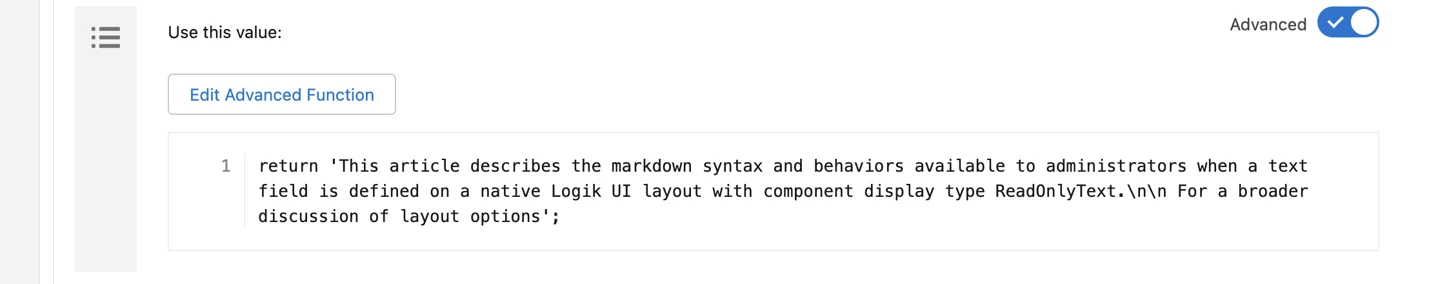

For example, when the following return function is entered, it leads to the escaped characters appearing in the output:

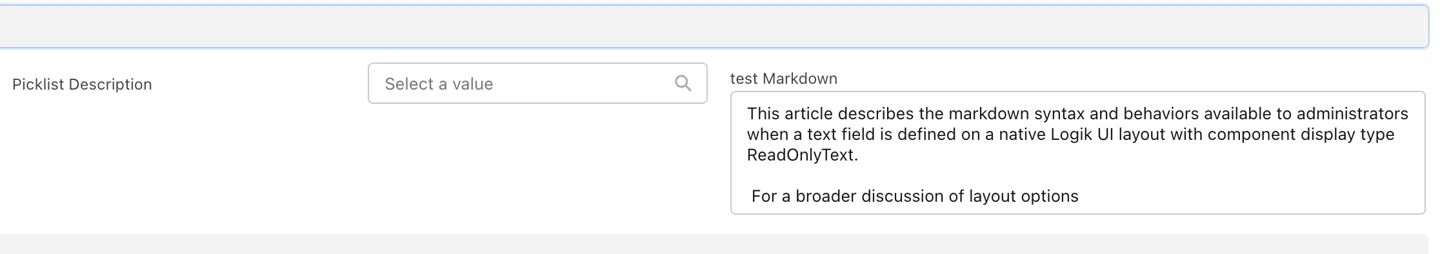

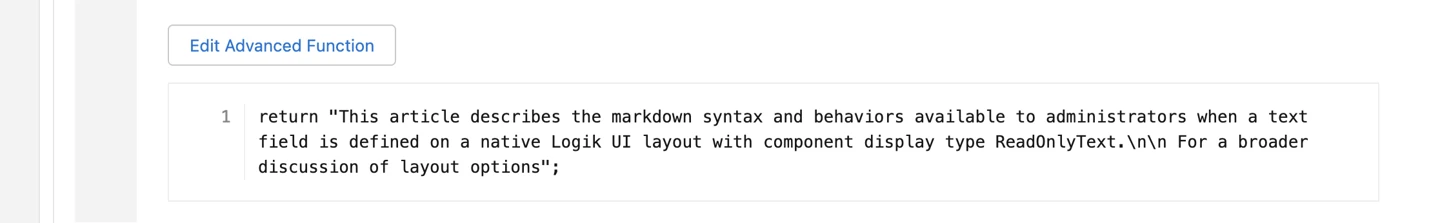

When the return function encloses the same text in double quotes, the output appears as intended:
