Create a Knowledge Graph schema

Use the Knowledge Graph to create Knowledge Graph schemas.

Before you begin

Role required: kg_admin

Procedure

1. Navigate to All > Knowledge Graph > Knowledge Graph Designer.
   The UI displays a list of all the Knowledge Graph schemas on the landing page.
2. Start creating a Knowledge Graph schema by selecting Create New.
3. On the form, fill in the fields.

   Table 1. Edit Knowledge Graph Schema details form

   Field	Description
   Display Name	Display name for the Knowledge Graph schema.
   Name	Optional name for the Knowledge Graph schema.
   Scope	Scope used when creating the Knowledge Graph schema. This field is a read-only.
   Description	Knowledge Graph schema overview to provide additional information to users.
   Mark as Default	Check box used to assign the Knowledge Graph schema as a fallback schema. The default schema is used if the system fails to reach the assigned schema.

4. Use the schema as a fallback option by selecting Mark as Default.
   Note:

   • If the specified Knowledge Graph schema isn't available, the system uses the fallback schema.
   • If you select this option, the system overrides the existing selection.
5. Select Create.
   The Add nodes to the Knowledge graph schema window is displayed.
6. Enter or search for the nodes that you want to add to the Knowledge Graph schema and select Add.

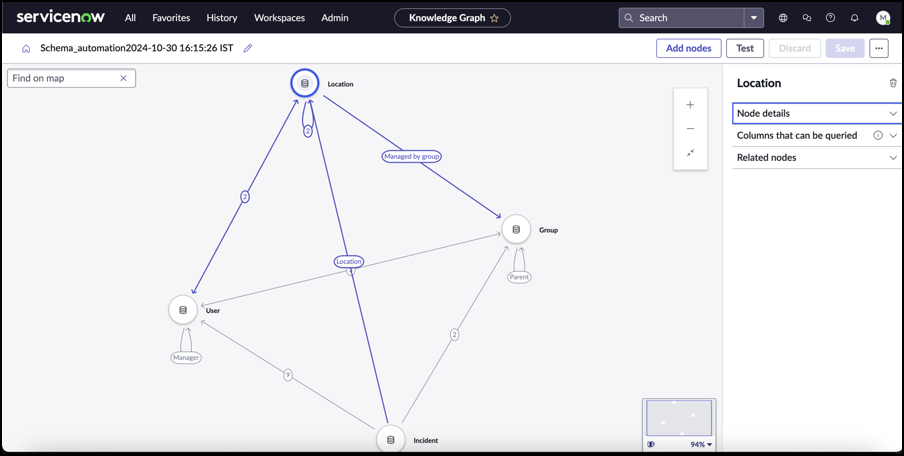

   The Knowledge Graph schema​ is created and displayed on the Knowledge Graph canvas.
7. In the navigation pane, add the following details:

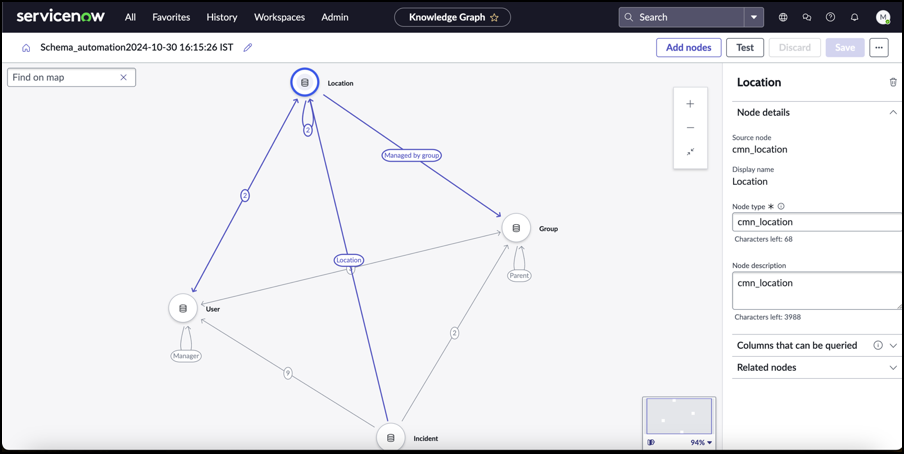

8. In the Node details section, you can edit the following fields.
   • Node type
   • Node Description

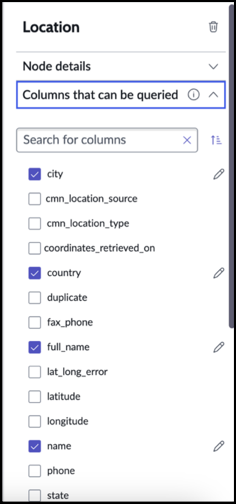

9. In the Columns that can be queried section, search for and select the desired columns and select Save.

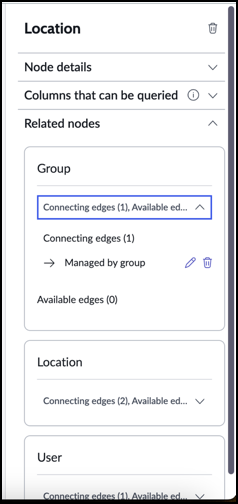

10. Add, delete, or edit edges in the Related nodes section and select Save.
