How to change name displayed on Dependency view?

[kris29]

Hi,

I'm not sure where I should go to change name displayed on Dependency view.
If this view is configurable, where do I have to go in the instance to change it?

[#2]

The value displayed in the dependency tree is read from the field marked as the Display field on the table.

You can refer to this article for help changing the display value.

[kris29]

Hi @jgates

In cmdb_ci_email_server for 'Display' none of the fields are set to true.

[shloke04]

Hi,

The way this works is those Names cannot be changed from Dependency View. Dependency view just pulls it from respective Tables.

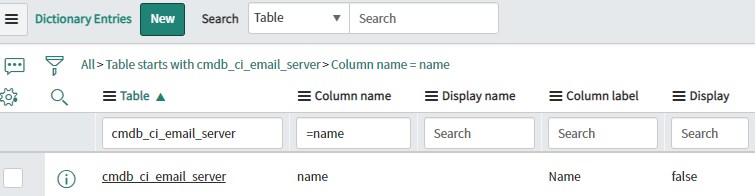

For example in your above screenshot, there are few Email Server say for example:"IronMail-SD-01" . This value gets pulled from the Table "Email Server (cmdb_ci_email_server)". So in order to change the Name you need to change it in the Name field of this Table as below:

Yes, you are correct the Table does not have a Display Value as true but when there is no Display Value as True it by default takes up the Name field of the Table.

Hope this helps. Please mark the answer as correct/helpful based on impact.

Regards,
Shloke

[shloke04]

For example Result Attached below after changing the name of email Server:

Hope this helps. Please mark the answer as correct/helpful based on impact.

Regards,
Shloke
