How to check attachments in flow designer

[chanikya]

Hi All,

Version : PARIS PATCH10

How to check replied email has attachments Or Not in Flow designer.

@Ankur @Harshavardhan @Ankur Bawiskar @Anil Lande @Chuck Tomasi @Jaspal Singh @Rohila Voona

@Michael Jones - CloudPires @Kieran Anson @Brad Bowman

[chanikya]

Yes Ankur,

even i tried to map with "Look up Email Attachments" to "Look up records"

really it become hard to get Count here.

[-O-]

I believe there is a fault in the filter:

[chanikya]

Hi Janos,

Thanks for Reply,

Please help me what is the filter condition i need to setup in INBOUND action using with  CSM Case Table.

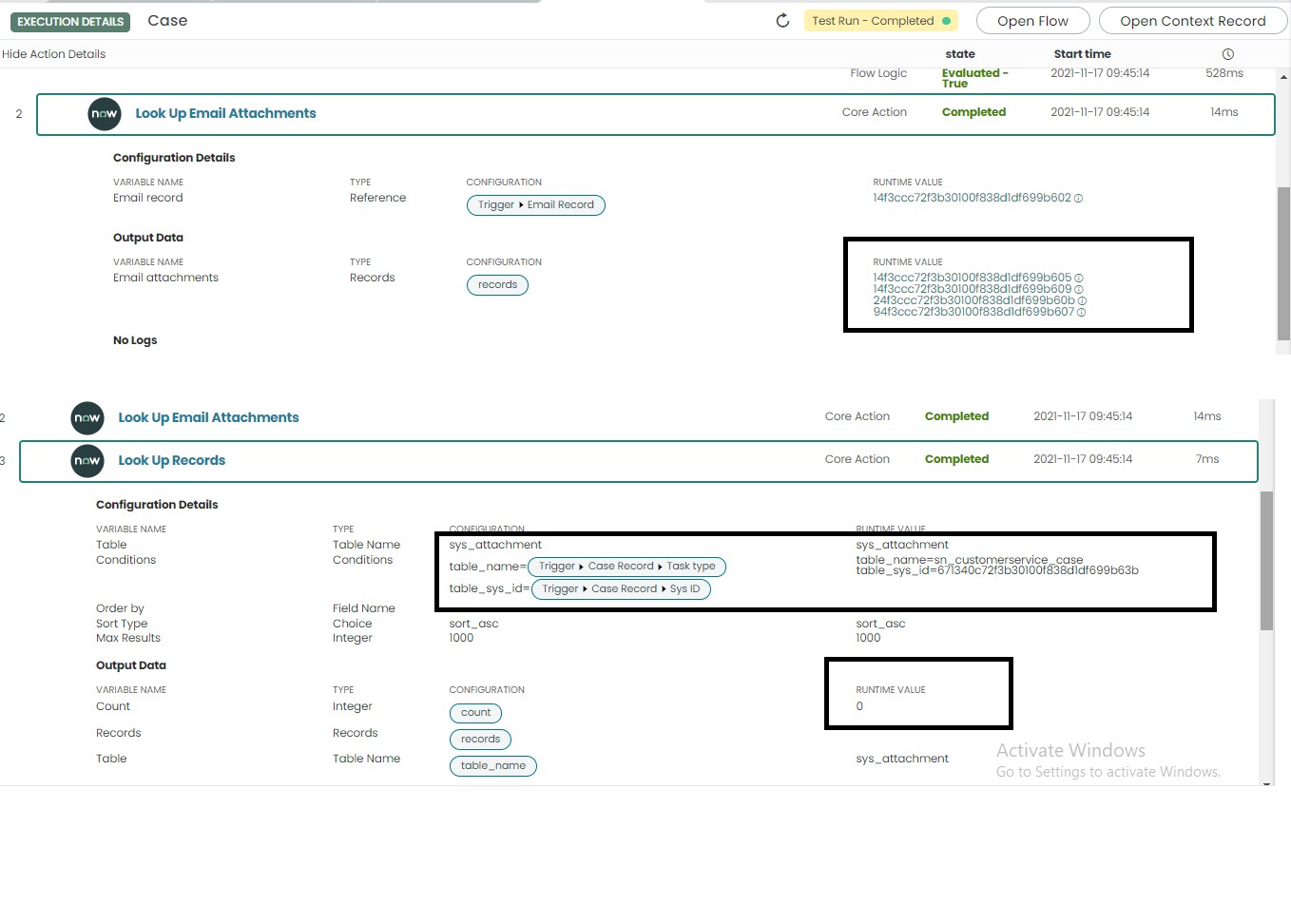

Is it Correct please? , but still returning 0, but it has 4-attachments in Email logs(sys_email) table record.

what showing count still "0",

how to push attachments Email log-----> Target record (case table record).



[-O-]

Actually what I said earlier is not correct. The correct filter is:

[-O- · Accepted solution]

As an alternative, this could also be done with the help of an Action that can be used elsewhere too. I created a new Action, called it "Get Records Count"

Have defined a single input:

Next I have added a Script step that also has an input that looks the same as the Action input:

The code is pretty str8 fwd:

(function execute(inputs, outputs) {
  if (inputs.records && inputs.records.isValidRecord)
    outputs.count = inputs.records.getRowCount();
  else
    outputs.count = 0;
})(inputs, outputs);

And - of course - as visible in the picture, the Script Step also has an output, I named it count.

Finally the Action itself also has an output, again named the same as the Script step output:

And I have configured the Action to use the Script step's output as the Action's output value:

Once this is done and activated, I can use it as below:

Of course this will result in the Count data pill that I can use to check whether any attachments have been received:
