"Single-Page Applications are Web apps that load a single HTML page and dynamically update that page as the user interacts with the app. "
Microsoft Magazine
For this example we will be using ui-router to manage state and what is displayed to the user but with this approach you could use any state manager.
Let's call our project Hello World
Some information about our project
Portal:
Title: Hello World
Url suffix: helloworld
Homepage: helloworld_homepage (an empty page that we creating the portal)
Step 1
First let's download the library (https://github.com/angular-ui/ui-router) and create a UI Script with its content . The minified version is recommended.
Step 2
Let's create a UI Script that our application will rely on. That UI Script can be used to create factories, services, filter, etc. Basically any angular 1 component.
I'll name our UI Script helloworld-uiscript. I find that appending uiscript to the name makes it easier to identify it later on when we start working with widgets as well.
In our UIScript I'll start creating an angular module called helloworld and adding ui.router as dependency. This is pure angular code and it should look very familiar to angular developers
(function (angular) {
angular.module('helloworld', ['ui.router'])
})(angular);
Next let's define our states. For this demo we are creating 2 states. I'll try to keep it simple naming it homepage and detail but for your application make sure your state name reflect the state of your application.
IMPORTANT Please note some states are already being used by service portal and it will break if you try to create a state with the same name, that's why I avoided using state1 and state2 and used homepage and detail instead
Lets add a configuration block to our helloworld application. We will also inject $stateProvider which is provided by uiRouter and define our states.
(function(angular) {
angular.module('helloworld', ['ui.router'])
.config(function($stateProvider) {
$stateProvider
.state('homepage', {
})
.state('detail', {
})
})
}])(angular);
Next we need to define what content (template) we will display for each state. We have couple options here.
Option 1:
We can define our template inline using the template property. It would look somewhat like this:
.state('homepage', {
template: "<h1>Hello World Title - Homepage</h1>"
})
This template property could become massive depending on what our state would display, so let's take a look at some other options
Option 2:
UI Pages! As alternative to option 1, we could use the property templateUrl to point each state to a UI Page. It would look like this:
.state('homepage', {
templateUrl: "homepage.do"
})
Option 3:
TemplateCache! We can also use templateCache to point to a template ID that we will define later on. IT would look like this
.state('homepage', {
templateUrl: "homepage"
})
Since option 1 and 2 is pretty straightforward I'll implement our helloworld demo using Option 3.
Your UI Script should look like this at the end
(function (angular) {
angular.module('helloworld', ['ui.router'])
.config(function ($stateProvider) {
$stateProvider
.state('homepage', {
templateUrl: "homepage"
})
.state('detail', {
templateUrl: "detail"
})
})
})(angular);
UPDATE: SP ng-template might be a better solution for a production application but the concept is the same
Step 3:
Now lets create our custom widget that will wrap our application, add the proper dependencies and add it to our homepage.
You can create the widget using the widget editor view or servicenow form. I'll use the widget editor by going to /sp_config?id=widget_editor but we will need to switch to the form view to add the dependencies
For this widget I'm going to name it helloworld-uiview
HTML
Let's start creating our cached templates defined in the uiscript (state1 and state2) then we will add a ui-view directive provided by ui router. Your code should look like this
<script>
<h1>Homepage View</h1>
<a ui-sref="detail" class="btn btn-primary">Go To Detail View</a>
</script>
<script>
<h1>Detail View</h1>
<a ui-sref="homepage" class="btn btn-primary">Go To Homepage View</a>
</script>
<ui-view></ui-view>
CLIENT SCRIPT
In the client script we need to define our default state AKA home state. For this we need to inject $state, provided by ui router
IMPORTANT: Later in the process we are going to access a page called $spd.do . This page relies on $state to work, so we need to write some work around to stop $state manipulation for when accessing this page
Your code should look like this:
function ($state,$location) {
if ($location.path().indexOf('editor') != -1) {
return;
}
$state.go('homepage');
}
No Server side script, SCSS and link function are needed for this example, now let's switch to the platform view by clicking on the hamburger menu on the top right
Setting up Dependencies
Scroll down to Dependencies and let's create a new dependency (sp_dependency)
Name: helloworld Dependency
Include on page load: yes
Portals for pageload: helloworld
Angular module name: helloworld (defined in our ui script)
Save instead of submitting so we stay on the same page and we can add the files dependency
Now lets create 2 new JS Includes. One for our helloworld-uiscript and another for ui router. It's important that the Order field for UI router is smaller than helloworld-uiscript since our uiscript injects uirouter as dependency
Display Name: UI Router
Source: UI Script
UI script: ui router
Display Name: UI Router
Source: UI Script
UI script: helloworld uiscript
Step 4
The alst step is adding our helloworld-uiview to the homepage.
We can do this by going to /$spd.do

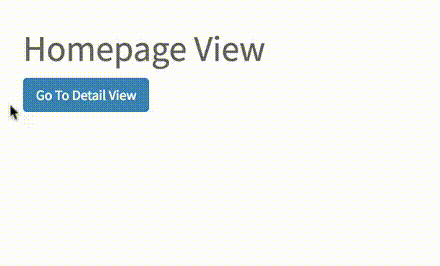

Final Result
You can view a live demo here:
https://empaoliveira.service-now.com/helloworld
I hope it helped!
Soon I'll post a part 2 where I'll explain how to develop single page app with deep linking so you can use the history tab to go back or send a user to a specific state.
Thank you
