Add already created bar chart report to a catalog item custom with label variable type

booher04
Tera Guru

2 hours ago

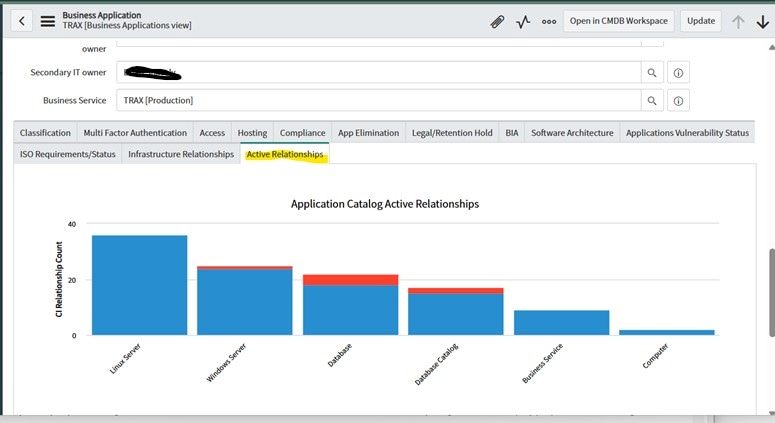

The ask is to display a dynamic bar chart report(already created and used on the cmdb_ci_business_app table) where a user can select the reference variable "business_services_to_modify" which is for the cmdb_ci_business_app table.  Once that is selected, the "Tagged Asset List" custom with label variable type variable will display the report "Application Catalog Active Relationships" which is a bar chart report that shows the active relationships (cmdb_rel_ci table) on the selected Business Service. I've tried to create a widget to display this but it doesn't seem to work as no graph or data show.  Any thoughts on a good way to accomplish this?  I attached a screen shot of a record on the cmdb_ci_business_app table where this report/chart is currently working.  They would like for this to be on a new catalog item and it's used in the Service Portal.

Preview file
47 KB
0 Helpfuls
  • 104 Views
1 REPLY 1

nityabans27
Giga Guru

2 hours ago

Hi @booher04 ,

To display the dynamic bar chart in your catalog item:

  • The OOTB report widget won’t work directly since it only renders a static report by sys_id.

  • You need to make it dynamic:

    1. Option 1 (Reuse existing report): Call the Report Data API (/api/now/report/{report_sysid}) and pass a sysparm_query that filters on the selected Business Service (business_services_to_modify). Then render the returned chart JSON in your widget.

    2. Option 2 (Custom chart): Query the cmdb_rel_ci table directly in the widget (GlideAggregate) using the selected Business Service, and render results with Chart.js.

✅ Either way, you’re feeding the user’s variable into the chart dynamically, instead of embedding the static report.

0 Helpfuls
