Auto-Complete Reference Field Search for Multiple Fields

[kesha]

I created a Service Catalog Item request and had a question regarding one of the requirements. The UI Macro associated to this request functions as required, however I need to have two values (Vendor Number and Alternate Vendor Number which are custom fields we created for the core_company table) auto-populate when the user is searching for the Company Name (as pictured in the screenshot below). The only way I was able to make this function was by adding an attribute to the core_company dictionary entry, but this is not our ideal option. Any feedback on how to implement this into my UI Macro would be greatly appreciated. I attached a copy of the UI Macro.

Attribute:

ref_ac_columns_search=true,ref_ac_order_by=name,ref_ac_columns=u_vendor_number;u_vendor_number_alternate,ref_auto_completer=AJAXTableCompleter

[chirag_bagdai]

Hi Kesha,

Please visit below link :

Auto-Complete for Reference Fields - ServiceNow Wiki

However, I have tried below example :

1. Goto dictionary entry and update "Attribute" :

all_tables.text_index_translations=true,ref_ac_columns_search=true,ref_ac_order_by=name,ref_ac_columns=u_vendor_number;u_alternate_vendor_number,ref_auto_completer=AJAXTableCompleter

Please note that you need to update "ref_ac_columns=u_vendor_number;u_alternate_vendor_number," with your field name.

Also, this change will apply to table level.

[kesha]

I was looking to go with the ui macro logic, but thanks for the response Chirag.

[Pavan Kumar1]

Hi,

I am trying to get this right, but I am not able to.

There is a reference field on Incident form called Business Service which is referencing to cmdb_ci_service class.

I am using this attribute to show and search these columns : NAME, u_acronym

all_tables.text_index_translations=true,ref_ac_columns_search=true,ref_ac_order_by=name,ref_ac_columns=name;u_acronym,ref_auto_completer=AJAXTableCompleter

But I am not able to see the column u_acronym to search for and auto-complete is not showing this column as well.

u_acronym is the custom field created on business service class and is of type String.

[Pavan Kumar1]

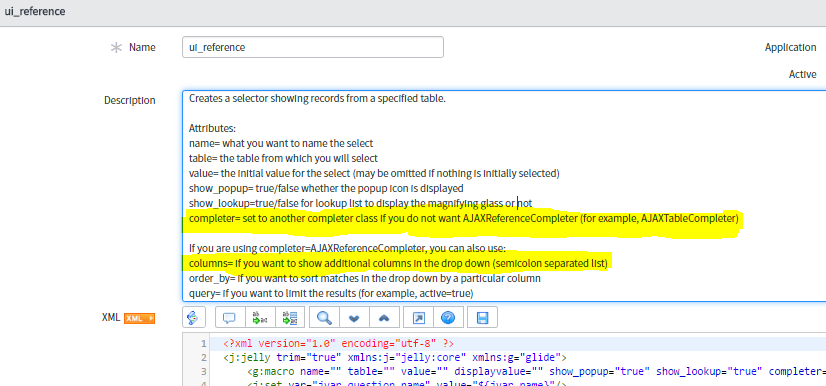

Attaching screenshots of output and attribute
