CheckBox Approvals - Workflow

[ar1]

Hi Team,

We have a requirement regarding checkbox approval:

we developed one catalog item and the catalog have 5 checkbox variables. and for each checkbox different users approval are there like below:

1. checkbox1 - A user approval

2. checkbox2 - B user approval

3. checkbox3 - C & D users approvals

4. checkbox4 - E & F users approvals

my requirement is :

if an end user select checkbox1 and chekbox3 in that case "A user" must approve and "C & D users" any one approval is enough no need to wait for both approvals.

ANY help would really appreciated...

thanks in advance..

Note: We used workflow and currently the ticket is waiting for all the user approvals [A , C , D]

[ar1]

Hi Hemath,

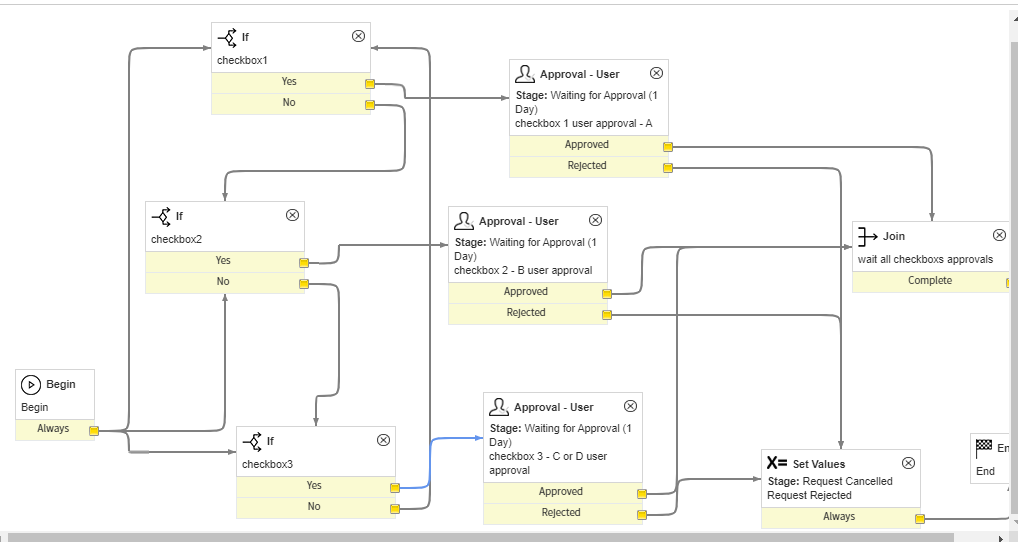

Please  check below workflow.

1. IF activity -> Checkbox1

var nachf = current.variables.checkbox1; [checkbox1 - variable name]

answer = ifScript();
function ifScript()
{

if(nachf == 'true')
{
return 'yes';
}
return 'no';
}

In Approval activity -> we select the "A" user name in  user field.

and wait for condition -> ANyone to approve

2. IF activity -> Checkbox2

var cb = current.variables.checkbox2; [checkbox2 - variable name]

answer = ifScript();
function ifScript()
{

if(cb == 'true')
{
return 'yes';
}
return 'no';
}

In Approval activity -> we select the "B" user name in  user field.

and wait for condition -> ANyone to approve

3. IF activity -> Checkbox3

var cd = current.variables.checkbox3; [checkbox3 - variable name]

var ar = current.variables.checkbox4; [checkbox4 - variable name]

answer = ifScript();
function ifScript()
{

if(cd == 'true' || ar == 'true')
{
return 'yes';
}
return 'no';
}

In Approval activity -> we select the "c" and "D" user names in  user field.

and wait for condition -> ANyone to approve

Please tell me if this is not clear...

[Aavi]

Hi @ar1 ,

My requirement is also same and i have replicated the flow. Getting the approval as I mapped but encountering the below error.

Please help

[vardini]

if checkbox1 & checkbox3 - than A c D approvals... like based on combination selection require approval has to Triger.this is not working if user selecting multiple checkboxes approvals not working
