RITM Variables such a Number, date along with MRV line items written to a Custom Table

[Peter Williams]

Good Morning everyone,

i have an unusual problem, i need a way  when users submit a request (RITM) to have those variable vaules along with the MRV variable values to be written to a custom table in servicenow.

Ex.

User submits an RITM

Form variables:

Number

Name

Date

Office

Form MRV Values:

Invoice #

Type

Amount

Details

how it should look in the custom table

The RITM variables will be the same but as each MRV value is entered for the RITM it will change

Number	Name	Date	Office	Invoice#	Type	Amount	Details
RITM0001121	Peter	13-May-24	Toronto	12345-32	Airfare	123.02	to the office
RITM0001121	Peter	13-May-24	Toronto	6587-AV	Taxi	25.25	From the airport
RITM0001121	Peter	13-May-24	Toronto	try-432	Meal	78.41	Dinner

[Vengadesh]

Hi @Peter Williams ,

Are you utilizing Flow designer or a script to achieve this?

If its via script , Kindly share a script

[Peter Williams]

i was thinking of a BR to perform this and i have this so far but doesnt seem to work

(function executeRule(current, previous /*null when async*/) {

    // Check if the catalog item is submitted

    if (current.operation() == 'insert') {

        // Retrieve the MRVS values

        var mrvOffice = current.variables.bill_to_office_mrv;

        var mrvClient = current.variables.disbursements_client;

        // Iterate through the MRVS values

        mrvOffice.forEach(function(mrv) {

            // Create a new record in the custom table

            var customRecord = new GlideRecord('u_testing_mrv_upload');

            customRecord.initialize();

            // Set MRVS values

            customRecord.setValue('u_amount', mrv.amount_office);

            customRecord.setValue('u_department_invoice', mrv.department_office);

            customRecord.setValue('u_gl_code', mrv.gl_code_office);

            customRecord.setValue('u_invoice_date', mrv.date_office);

            customRecord.setValue('u_invoice_number', mrv.invoice_office);

            customRecord.setValue('u_description', mrv.description_office);

            // Set other fields from the catalog item form

            customRecord.setValue('u_number', current.number);

            customRecord.setValue('u_item', current.name);

            customRecord.setValue('u_office_billing', current.variables.office_send_to);

            customRecord.setValue('u_bill_to_office', current.variables.bill_to_office);

            customRecord.setValue('u_bill_to_client', current.variables.bill_to_clients);

            customRecord.setValue('u_total_amount', current.variables.grand_total);

            customRecord.setValue('u_pay_to_the_order_of', current.variables.pay_to_the_order_of);

            customRecord.setValue('u_payment_method', current.variables.payment_method);

            customRecord.setValue('u_requested_for', current.variables.requested_for);

            customRecord.setValue('u_currency', current.variables.currency);

            customRecord.setValue('sys_id', current.sys_id);

            customRecord.setValue('sys_created_on', current.created_on);

            customRecord.setValue('sys_created_by', current.opened_by);

            customRecord.setValue('u_department', current.variables.department);

            // Add more variables as needed

            // Insert the record

            customRecord.insert();

        });

         mrvClient.forEach(function(mrvs) {

            // Create a new record in the custom table

            var customRecord = new GlideRecord('u_testing_mrv_upload');

            customRecord.initialize();

            // Set MRVS values

            customRecord.setValue('u_amount', mrvs.amount_client);

            customRecord.setValue('u_department_invoice', mrvs.department_client);

            customRecord.setValue('u_file_number', mrvs.file_n);

            customRecord.setValue('u_invoice_date', mrvs.date_client);

            customRecord.setValue('u_invoice_number', mrvs.invoice_client);

            customRecord.setValue('u_description', mrvs.description_client);

            // Set other fields from the catalog item form

            customRecord.setValue('u_number', current.number);

            customRecord.setValue('u_item', current.name);

            customRecord.setValue('u_office_billing', current.variables.office_send_to);

            customRecord.setValue('u_bill_to_office', current.variables.bill_to_office);

            customRecord.setValue('u_bill_to_client', current.variables.bill_to_clients);

            customRecord.setValue('u_total_amount', current.variables.grand_total);

            customRecord.setValue('u_pay_to_the_order_of', current.variables.pay_to_the_order_of);

            customRecord.setValue('u_payment_method', current.variables.payment_method);

            customRecord.setValue('u_requested_for', current.variables.requested_for);

            customRecord.setValue('u_currency', current.variables.currency);

            customRecord.setValue('sys_id', current.sys_id);

            customRecord.setValue('sys_created_on', current.created_on);

            customRecord.setValue('sys_created_by', current.opened_by);

            customRecord.setValue('u_department', current.variables.department);

            // Add more variables as needed

            // Insert the record

            customRecord.insert();

        });

    }

})(current, previous);

what do you think is the best approach

[Vengadesh]

Hi @Peter Williams ,

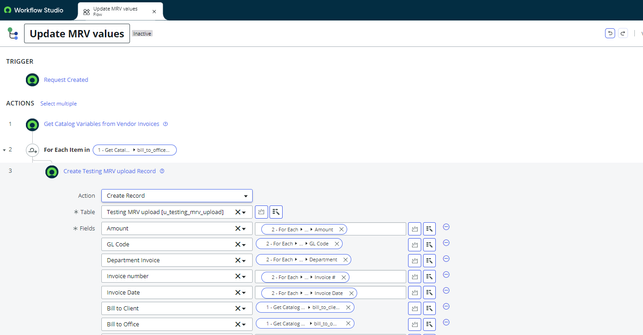

Better you can try with flow designer, I have tried once as like your requirement

Simply you can utilize "Get catalog variables and Create record "actions to create a record in the custom table

For MRVS scenario you can directly drag and drop the pills to set the values

If you need further assistance , kindly reach me

If it works for you, mark mine as accepted

Regards

Vengadesh

[Peter Williams]

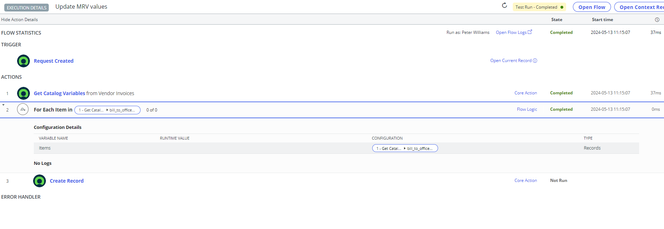

i did it but nothing happens
