Database view - ESX servers and dependencies

[bigfissy]

Hi,

Created a view to list all ESX servers (from the cmdb_ci_esx_server table), connect it with the relationship table (cmdb_rel_ci ).

The objective is to get all the (1) ESX Servers, (2) their Vcenter Reference, and (3) business services (cmdb_ci_service)  that they depend on (depends on::used by).

The cmdb_ci_esx_server table already has attributes 1 and 2. The cmdb_rel_ci table has attribute 3.

How do I connect them in a view?

Please provide a screenshot showing all the where clause and left join if applicable

[Brad Bowman · Accepted solution]

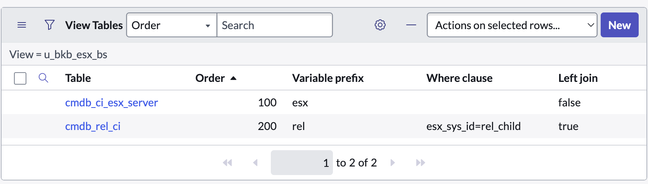

This depends on how you have things configured and relationships in your instance, but this should get you there, or close:

If you don't get any results, try rel_parent - in the event the ESX server is the parent instead of the child in your environment.  If you need to show other fields from the cmdb_ci_service table in your view, then you would need to add that as a third table, joined to cmdb_rel_ci on rel_parent.  With the left join on 200, this show all ESX servers, regardless if they have a business service.  If this is not what you intended, change the left join to false to only show ESX servers that have a business service.
