Arrange variables in a container in Service catalog

dineshchoudhary
Kilo Guru

Hi All,



We have a requirement to create a catalog item with variables arranged in a manner explained below

Let us say we have variables a, b, c, d, e, f and g and all these variables should be in a collapsible container.

We need to have variables a, b and c in left side of page and variables d and e should be in right side and variables f and g should be at the bottom and should occupy the entire width. (PFA screenshot for reference).



If anyone has worked on this type of requirement, please guide me how to achieve it.



Regards

Dinesh

1 ACCEPTED SOLUTION

Jaydeep Parmar
Kilo Guru

Hi Dinesh,

Try this..

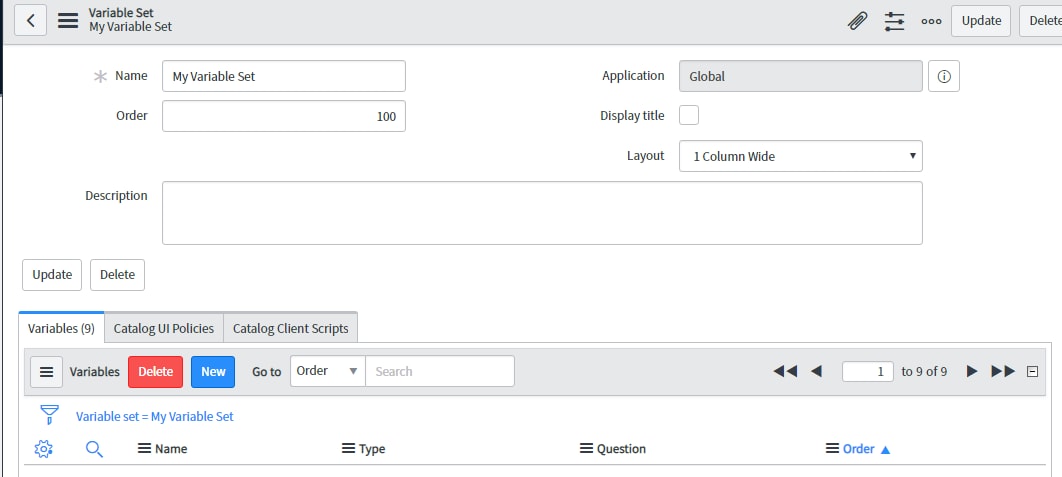

Create 1 Variable set as




Than Create Variables inside the variable set as







Mark Correct if it solved your issue or hit Like and Helpful if you find my response worthy.

Jaydeep Parmar






View solution in original post

11 REPLIES 11

Ajaykumar1
Tera Guru

Hi Dinesh,

Please refer the link : Variable set layout

Regards,
Ajay

Gerrit Zevenber
Kilo Contributor

Hi Dinesh,

You could use nested containers.

<Container 1 (single column)>

<Container 2 (double column)>

column 1: variable a,b,c        column 2: variable d,e

<End Container 2>

variable f,g

<End Container 1>

You could use the same construction with a variable set.

Var set 1: single column

Container: 2 column



Hope this helps.

Cheers, Gerrit

If I use nested container 3 columns are being created. first for a,b,c second for d,e and last one for f and g

Priyanka136
Mega Guru

Hi dineshchoudhary,

You have to give the container name , type and order . Try according to this .

If Suppose,

1) Start - Container start Type - 10

2) Container name (a, b, c ) - Your container type - order (20,30,40)

3) Split - Container Split Type - 50

4) Container name (d, e) - Your container type - order (60,70)

5) Formatter - Container End type - 80

6) Container name (f , g) - Your container type - order (90 , 100) - In Type Specification (Variable Width = 100%)

Let me know, if you have any questions.

Please mark it Correct or Helpful, if it works based on impact....!!!!

Warm Regards,

Priyanka
