How to get reference field Display value

[Sironi]

Hi All,

I request you , please help me on below issue.

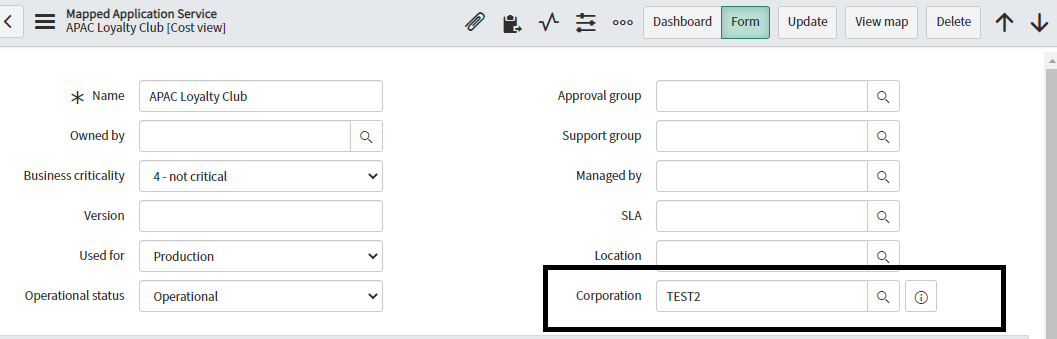

 "cmdb_ci_service_discovered" table record has 'Corporation' field which referencing "u_corporation" table

Request : Corporation record has "Node" reference field which is referencing same table of record itself  .

Here Hierarchy:  CMDB ServiceDiscovered has "corporation"  field which referencing "Test 2" ----> Test 2 record of Node field Referencing "Test 3", Test 3 record of Node field Referencing "Test 4".......etc..

So now we need to check till which corporation record of Node field  is empty . so that record display need to Display in CMDB ServiceDiscovered.

i tried below code , but not working

var corSYSID ='';
var bs = new GlideRecord('cmdb_ci_service_discovered');
bs.addQuery('sys_id','04398b559f030200fe2ab0aec32e70fa');
bs.addQuery('u_corporationISNOTEMPTY');
bs.query();
if (bs.next())
{
gs.print('Gate 1 :' + bs.u_corporation.getDisplayValue());

var cor = new GlideRecord('u_corporation');
cor.addQuery('u_nodeISNOTEMPTY');
cor.addQuery('sys_id', bs.u_corporation);
cor.query();
if (cor.next())
{
gs.print('Gate 2 :' + cor.u_node.getDisplayValue());

corSYSID = cor.u_node;
for (var i = 0; i < repeat; i++)
{
var cor2 = new GlideRecord('u_corporation');
cor2 .addQuery('u_nodeISNOTEMPTY');
cor2 .addquery('u_node', corSYSID);
cor2 .query();
if(cor2 .next())
{
repeat ++;
corSYSID = cor2.u_node;
gs.print('Gate 3 :' + cor2 .u_node.getDisplayValue() + '--' + repeat);
}
 }
  }
}

[Subrahmanyam2]

Hi Sironi,

If you are trying to fetch display value or value of a field on the GlideRecord then you have to pass field as parameter to getDisplayValue() or getValue() method.
And when you are using dot walking you have to use getDisplayValue() and getValue().

i.e. bs.getDisplayValue("<field_name>")
And if the field is on reference table of the table you are querying you have to use as below:

bs.<field_name>.<field_name>.getDisplayValue();

Try below code and check!

var corSYSID = '',
    repeat = 0;
var bs = new GlideRecord('cmdb_ci_service_discovered');
bs.addQuery('sys_id', '04398b559f030200fe2ab0aec32e70fa');
bs.addQuery('u_corporationISNOTEMPTY');
bs.query();
if (bs.next()) {
    gs.print('Gate 1 :' + bs.getDisplayValue("u_corporation"));
    var cor = new GlideRecord('u_corporation');
    cor.addQuery('u_nodeISNOTEMPTY');
    cor.addQuery('sys_id', bs.getValue("u_corporation"));
    cor.query();
    if (cor.next()) {
        gs.print('Gate 2 :' + cor.getDisplayValue("u_node"));
        corSYSID = cor.getValue("u_node");
        while (corSYSID != "") {
            var cor2 = new GlideRecord('u_corporation');
            cor2.addQuery('u_nodeISNOTEMPTY');
            cor2.addquery('u_node', corSYSID);
            cor2.query();
            if (cor2.next()) {
                repeat++;
                corSYSID = cor2.getValue("u_node");
                gs.print('Gate 3 :' + cor2.getDisplayValue("u_node") + '--' + repeat);
            } else {
                break;
            }
        }
    }
}

Thanks and regards,

Subrahmanyam Satti

[Sironi]

Hi Subrahmanyam,

is FOR-LOOP declaration correct ?

[Subrahmanyam2]

I modified for loop to while just now in above reply.
For was looping indefinitely.
Please check code given by me again and try.

[Sironi]

Hi,

Not sure what was the error, Code not working, after running code screen was freeze  .

i am assuming that some modification might be required in this point

corSYSID = cor.getValue("u_node");
while (corSYSID != "") {
var cor2 = new GlideRecord('u_corporation');
cor2.addQuery('u_nodeISNOTEMPTY');
cor2.addquery('u_node', corSYSID);
cor2.query();
if (cor2.next()) {
repeat++;
corSYSID = cor2.getValue("u_node");
gs.info('Gate 3 :' + cor2.getDisplayValue("u_node") + '--' + repeat);
} else {
break;
}
}
