How do I include in the MS Teams "Post a Message" action to use an @mention to tag/target an individual?

mkegruber
Tera Expert

Hi

I successfully created a flow in Flow Designer to trigger when an incident's Next Action date/time is overdue and send a message using the MS Team's Post a Message action to an MS Teams Channel.

What I cannot do is include a "mention" to tag/target the "Assigned to" of the incident in the message.

Has anyone had any success? Does it get done via an inline script? - if so can someone share the code please?



4 REPLIES 4

mattystern
Kilo Sage

Hi mkegruber,

I am also working on pretty much the same thing! Unfortunately, I'm having the same problem as you. I'm sure you've done some digging yourself, but here's some info that I have gathered over the last day on this:

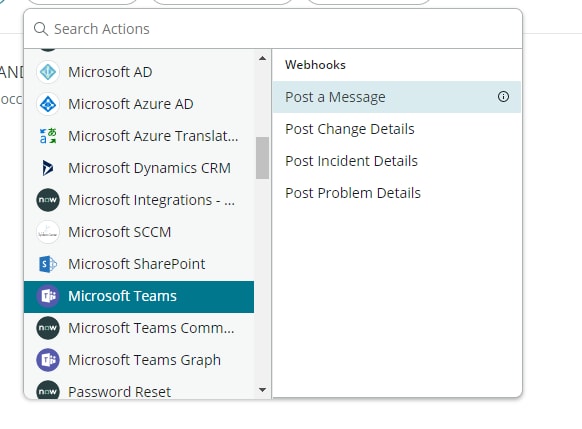

It seems that if you are using the "Microsoft Teams" spoke (screenshot below) you cannot specify a GroupID or Channel ID which are needed for mentioning in a teams channel:


You would instead need to use the "Microsoft Teams Graph" here:



Conceptually, I believe it is similar to this post which does mentions in PowerAutomate. However, since I cannot webhook into this, I need to actually build a connection for the Microsoft Teams Graph to function. Thus, I am at the will of another team internally. I'll keep you posted if I make any progress. Good luck!

-Matt

mkegruber
Tera Expert

Matt,

I'll look into this, I'll have to see whether my company has this interface.

Plan B at the moment is using a Power Automate flow to detect a unique keyword I insert into the ServiceNow message and extract all the key info i.e. case#, case owner etc and post a 2nd MS Teams message with an "@mention" tag. It's not the prettiest workaround as it will generate double messages in the channel.



regards

Michael



mkegruber
Tera Expert

Hi,

I haven't explored the MS Teams Graph action yet (waiting for my company to activate it). So my solution was to create a Power Automate flow to detect a keyword included in the message sent from ServiceNow, extract all the key info from the message and issue a reply with an "@mention" using the "Assign to" email address.

This is my first Power Automate flow, so its not pretty. I think "Compose 2" and "Compose 3" are not required. If there are any suggestions on how to eliminate the need for 2x "Parse JSON" steps I am all ears. If there is a way to bypass the JSON steps altogether, even better.

I hope my experience, can help someone else.

I'm not sure how to express the details of a flow, but I hope you can see what I did below...

Power Automate – Trigger

    When keywords are mentioned
        Message type: Channel
        Keywords to search for: “[my keyword]”
        Team: [my channel]
        Channel – 1: General

Power Automate – Actions


    Initialize variable – msg email
        Name: msg_email
        Type: String
        Value: [empty]
    Initialize variable – msg caseNumber
        Name: msg_caseNumber
        Type: String
        Value: [empty]
    Initialize variable – msg nextAction
        Name: msg_nextAction
        Type: String
        Value: [empty]
    Apply to each
        Select an output from previous steps: Value = triggerOutputs()?[‘body/value’]
        Get message details
            Message: Message ID = items(‘Apply_to_each’)?[messageId’]
            Message type: Channel
            Team: Team ID = items(‘Apply_to_each’)?[‘teamId’]
            Channel: Channel ID = items(‘Apply_to_each’)?[‘channelId’]
            Parent message ID = [empty]
        Parse JSON
            Content: Body = body(‘Get_message_details’)
            Schema: [I took the output of the message and generated a schema]
                {
                    "type": "object",
                    "properties": {
                        "@@odata.context": {
                            "type": "string"
                        },
                        "id": {
                            "type": "string"
                        },
                        "replyToId": {},
                        "etag": {
                            "type": "string"
                        },
                        "messageType": {
                            "type": "string"
                        },
                        "createdDateTime": {
                            "type": "string"
                        },
                        "lastModifiedDateTime": {
                            "type": "string"
                        },
                        "lastEditedDateTime": {},
                        "deletedDateTime": {},
                        "subject": {},
                        "summary": {
                            "type": "string"
                        },
                        "chatId": {},
                        "importance": {
                            "type": "string"
                        },
                        "locale": {
                            "type": "string"
                        },
                        "webUrl": {
                            "type": "string"
                        },
                        "policyViolation": {},
                        "eventDetail": {},
                        "from": {
                            "type": "object",
                            "properties": {
                                "device": {},
                                "user": {},
                                "application": {
                                    "type": "object",
                                    "properties": {
                                        "id": {
                                            "type": "string"
                                        },
                                        "displayName": {
                                            "type": "string"
                                        },
                                        "applicationIdentityType": {
                                            "type": "string"
                                        }
                                    }
                                }
                            }
                        },
                        "body": {
                            "type": "object",
                            "properties": {
                                "contentType": {
                                    "type": "string"
                                },
                                "content": {
                                    "type": "string"
                                },
                                "plainTextContent": {
                                    "type": "string"
                                }
                            }
                        },
                        "channelIdentity": {
                            "type": "object",
                            "properties": {
                                "teamId": {
                                    "type": "string"
                                },
                                "channelId": {
                                    "type": "string"
                                }
                            }
                        },
                        "attachments": {
                            "type": "array",
                            "items": {
                                "type": "object",
                                "properties": {
                                    "id": {
                                        "type": "string"
                                    },
                                    "contentType": {
                                        "type": "string"
                                    },
                                    "contentUrl": {},
                                    "content": {
                                        "type": "string"
                                    },
                                    "name": {},
                                    "thumbnailUrl": {}
                                },
                                "required": [
                                    "id",
                                    "contentType",
                                    "contentUrl",
                                    "content",
                                    "name",
                                    "thumbnailUrl"
                                ]
                            }
                        },
                        "mentions": {
                            "type": "array"
                        },
                        "reactions": {
                            "type": "array"
                        },
                        "messageLink": {
                            "type": "string"
                        },
                        "threadType": {
                            "type": "string"
                        },
                        "teamId": {
                            "type": "string"
                        },
                        "channelId": {
                            "type": "string"
                        }
                    }
                }

        Apply to each 3
            Select an output from previous steps: attachments = body(‘Parse_JSON’)?[‘attachments’]

            Compose 2
                Inputs: content x = items(‘Apply_to_each_3’)?[‘content’]

            Parse JSON 2
                Content: Outputs x = outputs(‘Compose_2’)
                Schema: [I took the output of the attachment item and generated a schema]
                    {
                        "type": "object",
                        "properties": {
                            "summary": {
                                "type": "string"
                            },
                            "title": {
                                "type": "string"
                            },
                            "themeColor": {
                                "type": "string"
                            },
                            "sections": {
                                "type": "array",
                                "items": {
                                    "type": "object",
                                    "properties": {
                                        "text": {
                                            "type": "string"
                                        },
                                        "title": {
                                            "type": "string"
                                        },
                                        "activityTitle": {
                                            "type": "string"
                                        },
                                        "activitySubtitle": {
                                            "type": "string"
                                        },
                                        "activityText": {
                                            "type": "string"
                                        },
                                        "markdown": {
                                            "type": "boolean"
                                        },
                                        "startGroup": {
                                            "type": "boolean"
                                        }
                                    },
                                    "required": [
                                        "markdown",
                                        "startGroup"
                                    ]
                                }
                            },
                            "potentialAction": {
                                "type": "array"
                            }
                        }
                    }

            Compose 3
                Inputs: bodu(…) x = body(‘Parse_JSON_2’)[‘sections’][0][‘text’]

            Note:  after Compose 3 there are 3 parallel branches to create 3 variables which then converge back at Get an @mention token for a user.

            1.    Branch for variable msg_email
                    Find text position “(“
                        Text: Outputs x = outputs(‘Compose_3’)
                        Search Text: (
                    Substring email
                        Text: Outputs x = outputs(‘Compose_3’)
                        Starting Position: add(…) x = add(int(outputs('Find_text_position_"("')?['body']),1)
                        Length: sub(…) x = sub(sub(int(outputs('Find_text_position_")"')?['body']),int(outputs('Find_text_position_"("')?['body'])),1)
                    Set variable msg email
                        Name: msg_email
                        Value: Body x = body(‘Substring_email’)
            2.    Branch for variable msg_caseNumber
                    Find text position “[case prefix]“
                        Text: Outputs x = outputs(‘Compose_3’)
                        Search Text: [case prefix]
                    Substring caseNumber
                        Text: Outputs x = outputs(‘Compose_3’)
                        Starting Position: Body x = body(‘Find_text_position_”[case prefix]”’)
                        Length: 11
                    Set variable msg caseNumber
                        Name: msg_caseNumber
                        Value: Body x = body(‘Substring_caseNumber’)
            3.    Branch for variable msg_nextAction
                    Find text position “colour:blue“
                        Text: Outputs x = outputs(‘Compose_3’)
                        Search Text: color:blue
                    Substring nextAction+end tag
                        Text: Outputs x = outputs(‘Compose_3’)
                        Starting Position: add(…) x = add(12,int(outputs('Find_text_position_"color:blue"')?['body']))
                        Length: [empty]
                    Substring nextAction
                        Text: Body x = body(‘Substring_nextAction+end_tag’)
                        Starting Position: 0
                        Length: sub(…) x = sub(length(outputs('Substring_nextAction+end_tag')?['body']),7)
                    Set variable msg nextAction
                        Name: msg_nextAction
                        Value: Body = body(‘Substring_nextAction’)

        Get an @mention token for a user
            User: variables(‘msg_email’)

        Reply with a message in a channel
            Post as: Flow bot
            Post in: Channel
            Message ID: outputs(‘Get_message_deatils’)?[‘body/id’]
            Channel: Channel ID = outputs(‘Get_message_details’)?[‘body/channelId’]
            Message:

                <p>@{outputs('Get_an_@mention_token_for_a_user')?['body/atMention']} Case @{variables('msg_caseNumber')} has an <span style="color: red"><strong>overdue Next Action</strong></span>. The stated action was:.<br>
                <br>
                <span style="color: blue"></span><span style="color: blue">@{variables('msg_nextAction')}</span><span style="color: blue"></span></p>




Regards

Michael

Hi,



I got the Microsoft Teams Graph spoke activated in my company's DEV environment recently (after successfully using the MS Teams spoke).



I understand where to source Group/Team IDs and Channel IDs, etc, but I'm stumped on where a get a data pill that is compatible with the Mentions field (see image below).



I was sure a "For Each Items > Look Up Records > Case Records > Assigned To > Email" would do the trick, but no. I'm missing something here, and I can't find it via Google.



If someone has successfully used this action, please detail what you did to issue a mention inside the message.






regards

Michael
