Script Related to Interactive Filter

[daware-madhu103]

Hello I am struggling for scripted interactive filter on the dashboard which has a report on the table (asmt_metric_result). I need to filter the list based on the "Company" and "Department"  by interactive filter.

I have created two interactive filter for both Company and Department field where if Company is A then in the another filter should populate with departments under the Company A.

Please find the below screenshots for reference.

[Community Alums]

Hi @daware-madhu103,

It seems that what you are trying to do can be achieved with the Cascade Interactive Filter without scripting.

https://docs.servicenow.com/en-US/bundle/vancouver-now-intelligence/page/use/dashboards/task/create-...

Are Company and Department custom fields? I couldn't find such fields in the Metric Result table on my PDI instance.
If you could tell me more about your table structure, I might be able to give you some advice.

[daware-madhu103]

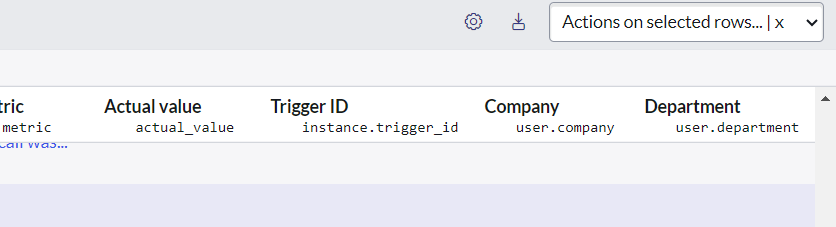

Yes. In Metric result table Company and Department fields are dot walked fields coming form assigned_to.company and assigned_to.department.

Please find the attached screenshot.

[Community Alums]

Here is an example for implementing with Cascade Interactive Filter:

• Navigate to All > Reports > Administration > Interactive filters and click New.
• In the Filter based on list, select 'Cascading Filters'.


• Right-click the form header and select Save.


• Define the first level of the cascading filter.
  • In the Cascading Filter related list, click New.
  • Select Company [core_company] as the Table and Name as the Display field.


  • Right-click the form header and select Save.

  • In the Target Tables related list, click New.
  • Select Metric Result [asmt_metric_result] as the Target table and 'Assigned to > Company' as the Field.


  • Click Submit button.


• Define the second level of the hierarchy.
  • From the first level of the cascading filter, in the Cascading Filter related list, click New.
  • Select Department [cmn_department] as the Table and Name as the Display field.
  • In the Parent Reference Field field, select the field that contains the value selected from the higher-level filter.

  • Right-click the form header and select Save.


  • In the Target Tables related list, click New.
  • Select Metric Result [asmt_metric_result] as the Target table and 'Assigned to > Department' as the Field.


  • Click Submit button.


• Place the Cascade Interactive Filter and Metric Result report on the same dashboard. Department is filtered by the value selected for Company.



[daware-madhu103]

@Community Alums  Thanks for the help. Its working!
