3 Column wide layout

Maria DeLaCruz
Tera Guru

I am creating a Catalog Item that requires 3 fields to be separated, but on the same line (First Name, Last Name, MI).   I tried using containers as mentioned on the link below, however, the fields are not aligned when displayed.   https://community.servicenow.com/groups/servicenow-user-group-us-nc/blog/2014/02/07/how-to-create-3-...   Is there a 3 column wide layout available?   We are on the Geneva release BTW.   Thanks, Maria

2 REPLIES 2

gemini17
Kilo Guru

Hi Maria:


I just created The three fields First Name, Middle Name and Last Name in one line:Just make sure to follow the instructions exactly,   First container start, two column wide alternating, you have to choose from type specification, give it order 100.   Then your First Name, with order 105.   the second container start with name container_start2 with order 110, also, two column wide alternating sides.   Then your Middle Name with order 115, followed by last Name with order 120.   Finaally two container ends with orders 125 and 130 respectively...It should work fine.   Cheers!



P.S. Hit it Correct and Helpful if it works with this detailed instructions.



Thanks


Danny.


Three Fields In One Line.PNG


Hi Danny,



I am trying to create 3 columns with the following variables:

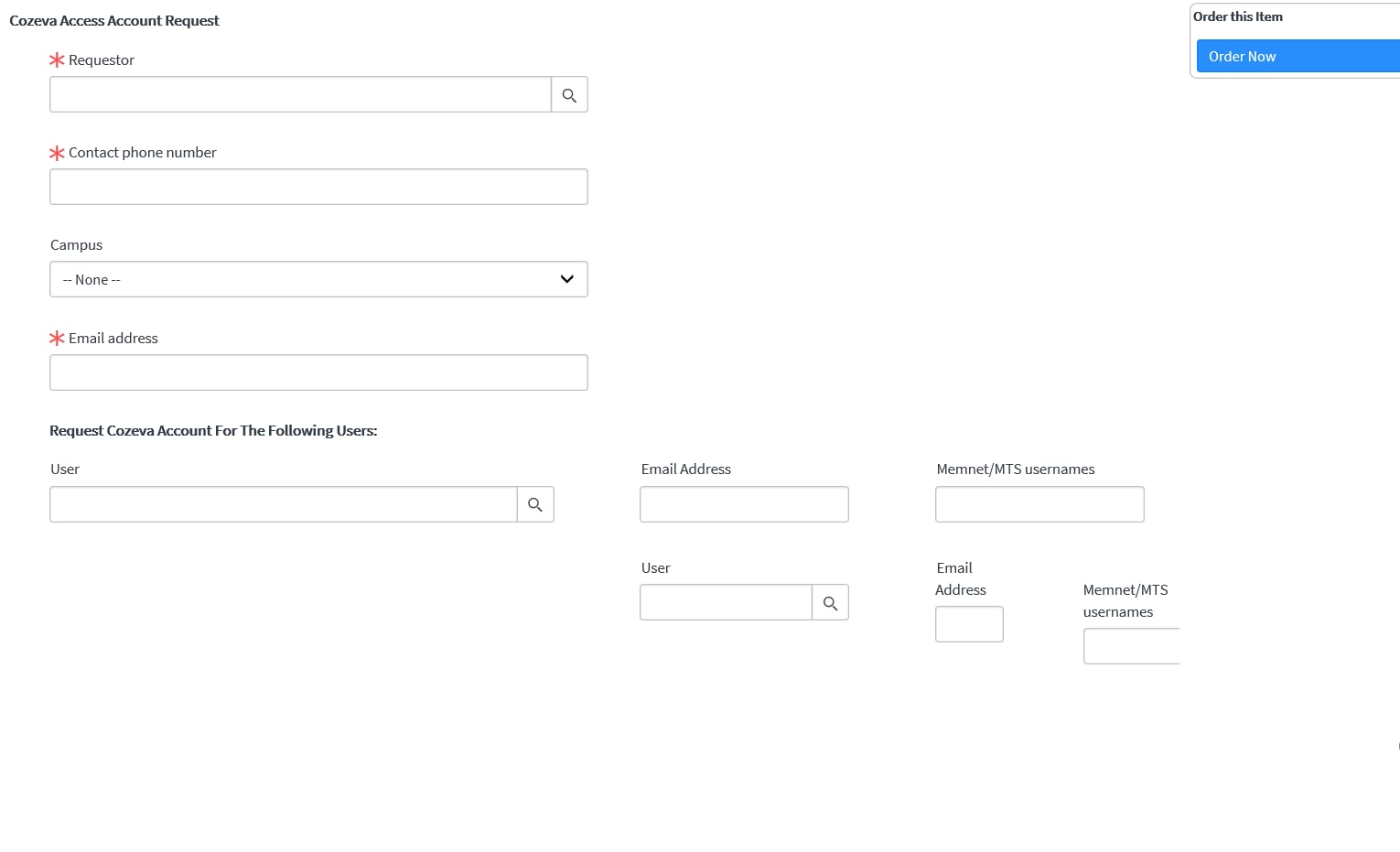

And this is how the form looks...Am i doing something wrong:






Any help you can provide will be appreciate.
