How do you get the attachment's sys_id that is on the kb_knowledge

feco
Kilo Contributor

How does the table kb_knowledge link to sys_attachment.   I'm trying to get the sys id of the attachment that is on the kb_knowledge.

1 ACCEPTED SOLUTION

Mihir Mohanta
Kilo Sage

Hi Florence,


Write a business rule on the Knowledge table.



Inside script, write a Glide query to sys_attachment table.Like,



var attachment = new GlideRecord('sys_attachment');


attachment.addQuery('table_sys_id',current.sys_id);


attachment.query();


while(attachment.next()){


gs.addInfoMessage('sys_id of the attachment is : ' +attachment.sys_id);


}



Thanks,


Mihir


View solution in original post

13 REPLIES 13

nikhil_001
Tera Contributor

HI everyone,



I have a requirement in which we need to check first check the mandatory attachment in serviceportal, which could be done OOB now. Along with that we need to check whether the attachment is excel or not , and if it is excel we need to count the filled rows in it. Any help will be appreciated. I have the code for checking whether the attachment is an excel or not, but its not working in portal as we are using Dom manipulation there . Below is the working code in the Service-now console and also i have the code which counts the excel rows but not able to achieve in portal.. Below are both the codes.



Excel mandatory working in console but not in portal:

Client script

function onSubmit() {
var cat_id = sysparm_item_guid.value;
var attObj = new GlideRecord('sys_attachment');
attObj.addQuery('table_name', 'sc_cart_item');
attObj.addQuery('table_sys_id', cat_id);
attObj.query();
if (attObj.hasNext()) {
while (attObj.next()) {
var typeMatch = 'ms-excel,spreadsheetml';
var typeStr = attObj.content_type.toString();
var typeChk = (typeStr.indexOf(typeMatch[0]) > -1 || typeStr.indexOf(typeMatch[1]) > -1);
var fName = attObj.file_name.toString();
var regex = /\.xlsx$/g;
var extChk = regex.test(fName);
if(!typeChk || (typeChk && !extChk)) {
alert("You must use an Excel spreadsheet for uploading, please remove the existing file and re-attach");
return false;
}

}
}
}



Counting nunmber of rows

Background script

var count=0;
var parser = new sn_impex.GlideExcelParser();
var attachment = new GlideSysAttachment();
// use attachment sys id of an excel file attachment
var attachmentStream = attachment.getContentStream('6e9c7aad1b772850c1534159cc4bcb5d'); //sys_id of record from sys_attachment table
parser.parse(attachmentStream);

//retrieve the column headers
var headers = parser.getColumnHeaders();
gs.print("Apoorva"+headers );
var key = headers[0];
var value = headers[1];
while(parser.next())
{
count++;
var row = parser.getRow();
//print row value for both columns
gs.print(row[value]) ; //Uncomment this to get actual data.
}

gs.print('Number of Rows in excel attached are '+count);

Hi,

Please create your own question so the conversation can be tracked appropriately.

You're posting this across numerous other previously closed/answered threads.

https://community.servicenow.com/community?id=community_question&sys_id=01115daadb72eb004abd5583ca96...

https://community.servicenow.com/community?id=community_question&sys_id=4216f05adb3590106c1c02d5ca96...

Thanks!


Please consider marking my reply as Helpful and/or Accept Solution, if applicable. Thanks!

Anoop19
Tera Contributor

Hi Everyone,

Please follow below steps to get the sys_id of a particular attachment.

a) Please go to sys_attachment.list to get all the attachments listed.

b) Locate your particular attachment you are looking for which the sys_id is required.

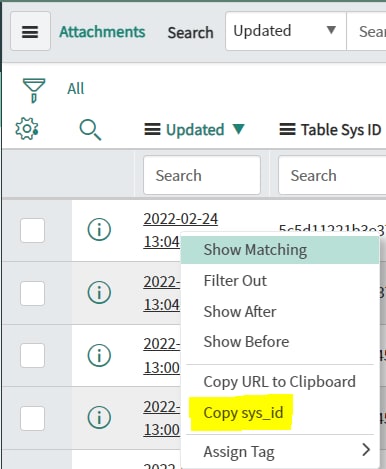

c) Right click on the attachment name to find the option copy sys_id.




Hope it helps.

khushboo roy
Tera Contributor

Instead of writing script.

Right click on the record and click on "Copy sys id".




Please mark helpfull
