Populating the Factors for the X and Y axis of a Residual Assessments Heatmap Configuration

TOM Owles1
Kilo Contributor

‎09-09-2022 06:06 AM

Hi,

I am trying to set up a Risk Assessment Methodology and am struggling to populate the Factors for the X and Y axis of the Heatmap.

Set up is as follows:

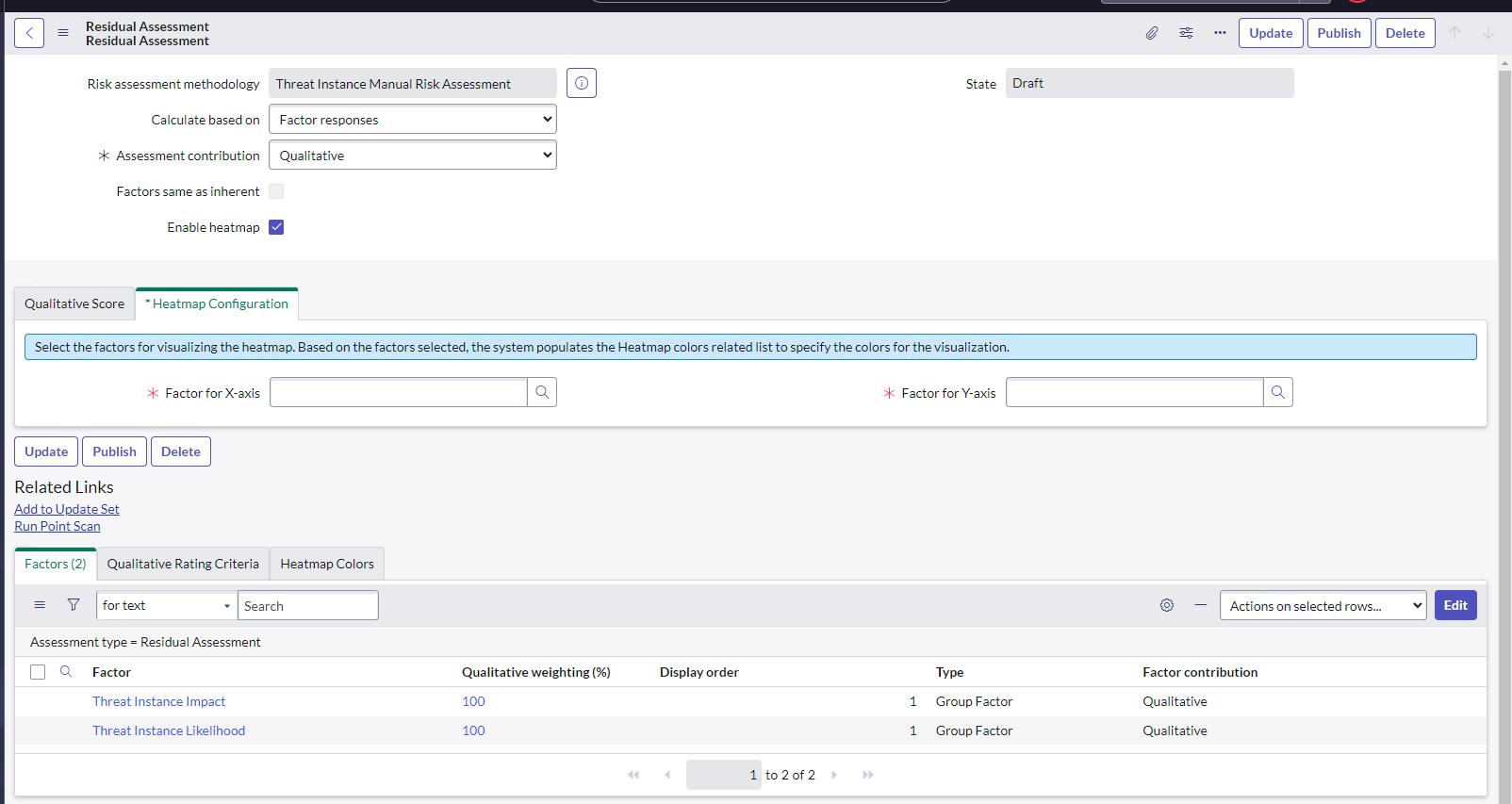

If I open the 'Residual Assessment' Assessment Type, you can see 'Enable Heatmap' is ticked, but I am unable to populate the factors for the Heatmap:


I can't see how to populate them:




Any help would be much appreciated.

Thanks,

Tom

Preview file
76 KB
Preview file
124 KB
Preview file
14 KB
0 Helpfuls
  • 578 Views
1 REPLY 1

Community Alums
Not applicable

‎01-04-2024 07:27 AM

I am very late with this answer, but I was investigating the same issue now. There is a reference qualifier on the field, it leads to a script include RiskAdvancedHeatmapBase.



Long story short, in my case the issue was

    factor.addQuery('transform_score', 'true');
this part of the query. Once I set it to true, its working.

Also you might be facing an issue if your factor is quantitative, because of
  m2m.addQuery('sn_risk_advanced_factor.factor_contributionIN2,3');
few lines above the previous script I copied...
