‎03-18-2025 07:40 AM
Hi Community,
We are currently implementing WSD and have encountered an issue after uploading a CAD file in Map Studio. The CAD file includes some furniture within a closed room. We can see the furniture on the floor plan during the import process, it becomes invisible after importing the room as a polygon.

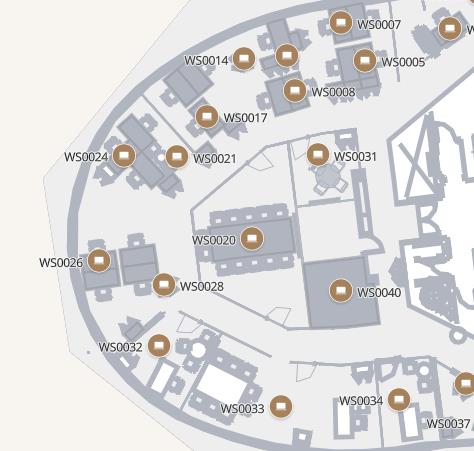

The furniture and the room are on different layers. I have attached screenshots for reference.
Can someone please let us know if it is possible to display the furniture inside the room?
Thank you!
Solved! Go to Solution.
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
‎03-18-2025 08:02 AM
@SVVSatyaM You can also make this adjustment in Map Studio with View Editor. Make sure to align the Place Type configuration with any updates you make through View Editor. Otherwise, the configuration will get overwritten when you do an Indoor Map/WSD Sync.
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
‎03-18-2025 07:41 AM
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
‎03-18-2025 07:52 AM
Hi @SVVSatyaM,
Check the Place Type configuration for the Room/Space, and adjust the Opacity.
Best,
Connor Lyons
Consultant at Infocenter
CSA | CAD | 15x CIS
Please mark answer correct and/or helpful for others reading this with the same issue/question.
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
‎03-18-2025 08:02 AM
@SVVSatyaM You can also make this adjustment in Map Studio with View Editor. Make sure to align the Place Type configuration with any updates you make through View Editor. Otherwise, the configuration will get overwritten when you do an Indoor Map/WSD Sync.
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
‎03-24-2025 03:09 AM
Hi @connorlyons
I am facing issue in the Reservation portal WSD where the rooms contain furniture are not showing any furniture and all the room is filled with green color .
Can you assist on this to show both green color and the furniture inside the room?
