Delete an architectural artifact version

  • 릴리스 버전: Australia
  • 업데이트 날짜 2026년 03월 12일
  • 소요 시간: 2분

    • Delete an architectural artifact version that is in Draft state from the Enterprise Architecture Workspace.

    시작하기 전에

    Role required: sn_apm.apm_user

    프로시저

    1. Navigate to Workspace > Enterprise Architecture Workspace.
    2. Open the Portfolio List view by selecting the Portfolio icon Portfolio icon.
    3. Select the expand row icon (Expand Row icon) next to Information Portfolio.
    4. Select Architectural Artifacts.
    5. Open the architectural artifact for which you want to delete an architectural artifact version.
    6. Delete the architectural artifact version.
      • For architectural artifacts of type URL and Attachment:
        1. Select Artifact versions.
        2. Select the check box next to the architectural artifact version that you want to delete. You can only delete versions that are in Draft state.
        3. Select Delete.

          A confirmation pop-up appears.

        4. Select Delete.
      • For architectural artifacts of type Architectural Decision Record:
        1. Select the version of ADR that you want to delete and that has status Draft.

          ADR artifact content page with version drop-down highlighted.

        2. Select the delete version icon () and then select Delete version.

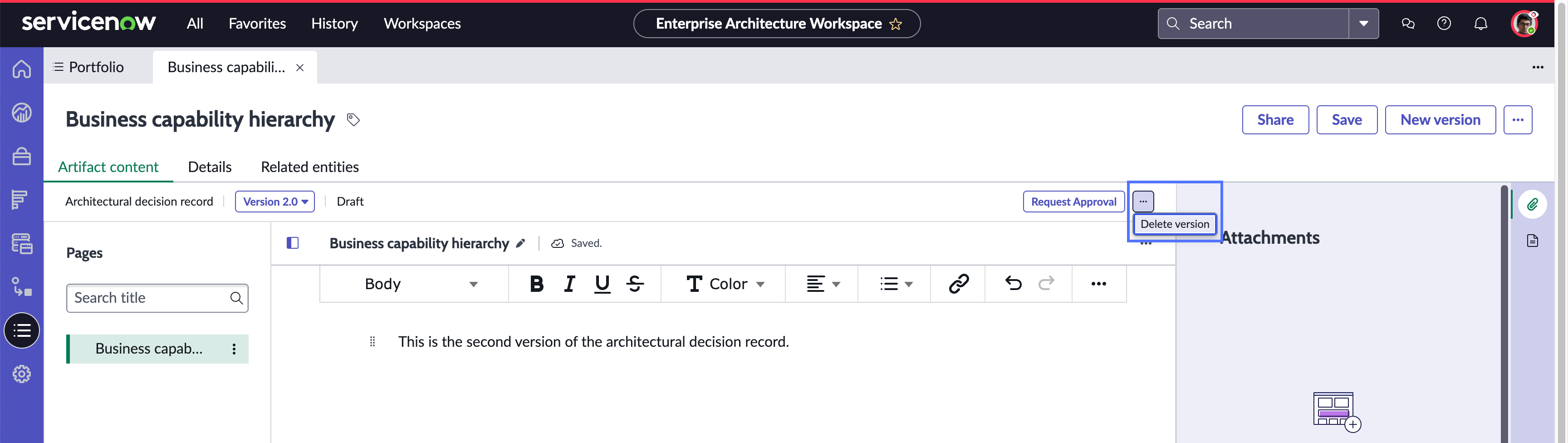

          ADR artifact content page with the Delete version button highlighted.

          A confirmation pop-up appears.

        3. Select Delete.

    결과

    The record version is deleted. On deleting a particular version of an architectural artifact, the details of the previous version of the architectural artifact are displayed by default.
