Tutorial part 4: Install and use a third-party library

Install a third-party library from Node Package Manager (npm) and use it in a JavaScript module.

시작하기 전에

Complete Tutorial part 3: Define a table in ServiceNow Fluent code.

Role required: admin

이 태스크 정보

Installing third-party libraries allows you to use existing open-source functionality in JavaScript modules to accelerate application development. Then you can refer to JavaScript modules that call third-party code from server-side script definitions in your source code, such as the business rule in the index.now.ts file.

In this example, you install a Lodash library to get common JavaScript utilities and methods. You use one of these methods, snakeCase, in the showStateUpdate function in a sample JavaScript module to display a message string in snake case, which separates words with underscores instead of spaces. In the index.now.ts file, the sample business rule is configured to use the showStateUpdate function for its script and to run after a record is updated in the To-do Items [x_snc_hello_world_to_do] table.

프로시저

1. Install the snakeCase method from the Lodash library in your application.
   1. From the Activity Bar, select the File Explorer view ().
   2. Open the package.json file for the application.
   3. After the devDependencies field, add the dependencies field with the package name and version of the library.

      },
          "dependencies": {
              "lodash.snakecase": "4.1.1"
          }
      }

   4. For applications that use TypeScript in JavaScript modules, add the lodash.snakecase types to the devDependencies field to get the type annotations for the library.

      "devDependencies": {
              "@types/lodash.snakecase": "4.1.1",
              "typescript": "5.5.4",
              "@servicenow/sdk": "2.2.4",
              "@servicenow/glide": "26.0.1",
              "eslint": "8.50.0",
              "@servicenow/eslint-plugin-sdk-app-plugin": "2.2.4"
          }

   5. Save your changes.

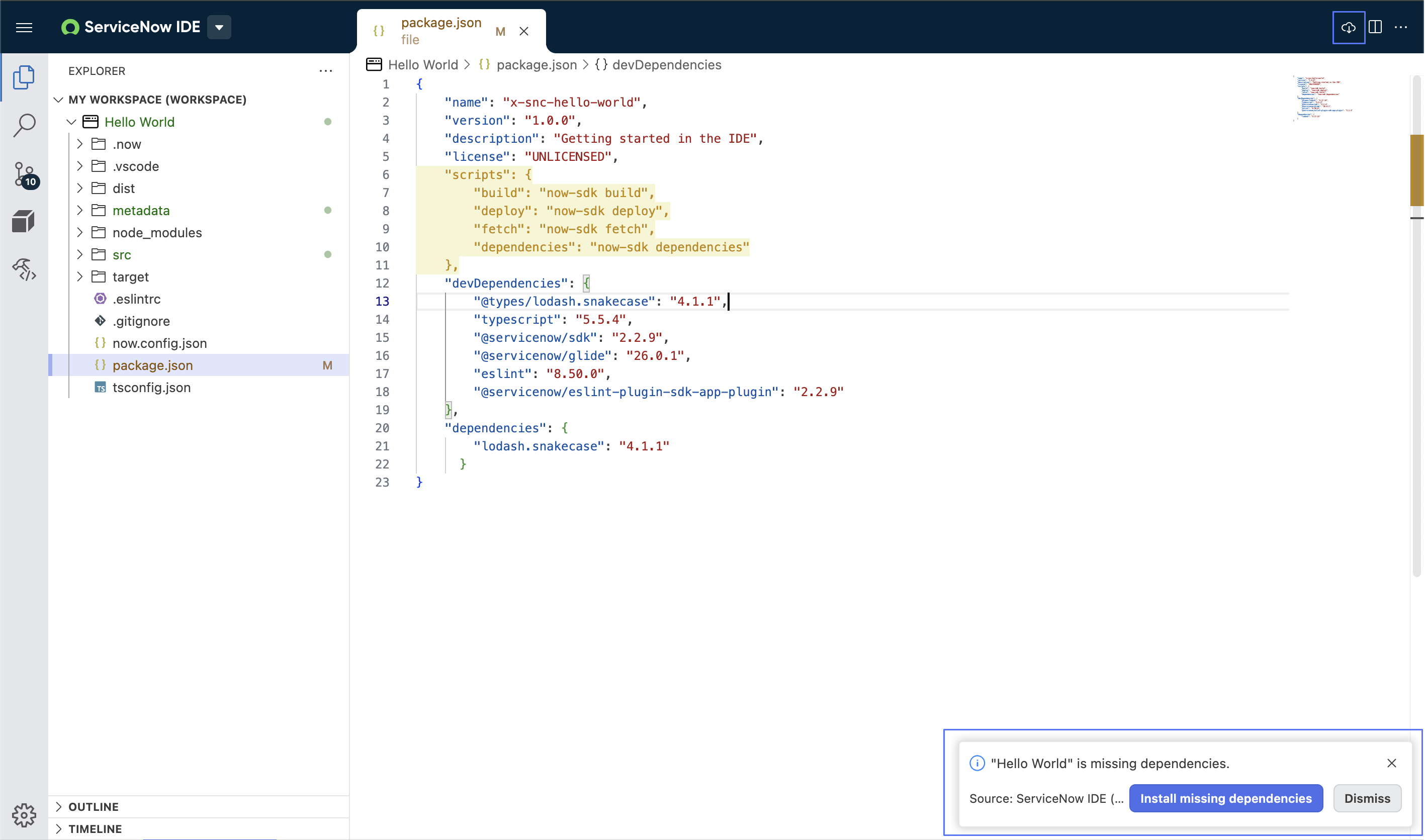

   6. When prompted, select Install missing dependencies.
      팁:

      You can also select the Install Dependencies icon () or use the Package Manager: Install Dependencies command from the command palette.



      Libraries are installed as modules in the node_modules directory.
2. Use code from the Lodash library in a JavaScript module in your application.
   1. Navigate to the src/server directory in your application.
   2. Open the script.ts sample module.
   3. In the addInfoMessage method, wrap the message string in the snakeCase method from Lodash to convert it to snake case.

      gs.addInfoMessage(snakeCase(`state updated from "${previousState}" to "${currentState}"`))

   4. In line 2, add an import for the snakeCase method in the lodash module.

      import snakeCase from 'lodash.snakecase'

      주:

      The global Glide APIs are also imported so that you can use methods like addInfoMessage in your module code.

      import { gs } from '@servicenow/glide'

   5. Save your changes.
3. From the Status Bar, select Build and Install.

   If the installation completes successfully, the Lodash libraries are added to the EcmaScript Module [sys_module] table, and the script.ts module is updated in the EcmaScript Module [sys_module] table.

결과

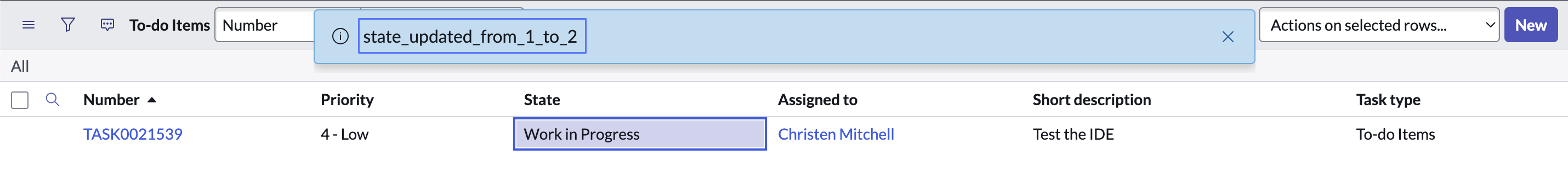

After you update any field on a record in the To-do Items [x_snc_hello_world_to_do] table, the sample business rule runs and displays the message in snake case, with the words separated by underscores instead of spaces.

다음에 수행할 작업

Continue to Tutorial part 5: Clone the application on a different instance.
