Adjust layout for responsive authoring

When creating pages with responsive authoring for different form factors, learn how to adjust the layout to improve the look and feel of the page at smaller sizes.

시작하기 전에

Role required: ui_builder_admin

이 태스크 정보

A method of increasing page usability is to tailor components by adjusting the layout across breakpoints. There are numerous options for adjusting the layout. In this procedure, adjust the layout of the tabs component for the mobile form factor.

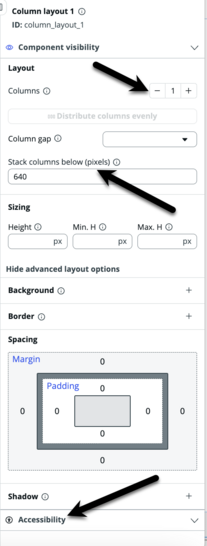

Most column layout options on the property pane can be edited for different form factors. However, the following options have global values across form factors:

• Number of columns
• Stack columns below (pixels) option
• All options under Accessibility

프로시저

1. Navigate to All > Now Experience Framework > UI Builder.
2. Open an experience to work in or create an experience by selecting Create > Experience.
   See Configure how users interact with your applications in UI Builder for more information on creating experiences.
3. Create a page from scratch with responsive authoring.
   For more information about how to create a page, see Create a page in UI Builder.
4. At the top, check that the desktop form factor icon is selected.

5. On the stage, select + Add content.
6. On the Layouts tab, select Single column.
7. Add the tabs component.
   1. Select the + icon in the center of the column on the stage.
   2. On the Components tab, find and select the Tabs component.
   3. Select Save.
8. In the configuration panel, on the Configure tab, edit the name of the first tab by selecting the edit icon.

9. In Tab label, enter Tab 1.
10. In Tab ID, enter tab_1
11. Select Save.
12. Add a second tab.
    1. On the Configure tab, select + Add next to Tabs.
    2. Select Start from an empty container and then select Next.

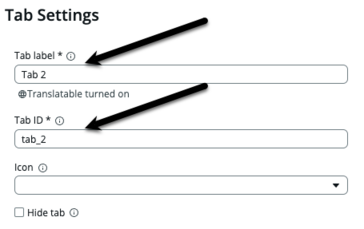

    3. In Tab label, enter Tab 2.
    4. Check that Tab ID has been automatically filled in with tab_2.

    5. Select Create.
13. Add a third tab by repeating step 12 and in 12c name the tab Tab 3.
14. Check that your content tree and page are accurate.
15. Select the tablet form factor icon.



    The spacing and position of the tabs looks good at tablet width.

16. Select the mobile form factor icon.



    The tabs take more space at the smaller size.

17. Change the layout of the tabs just for the mobile size.
    1. In the content tree, select Column 1 under Column layout 1.
    2. On the configuration panel, in Direction, select the row icon.



    3. Select Save.
    The stage updates automatically showing that tab 1 is visible and that there's a new dropdown menu.
18. Select Preview.
19. Select More.
    The other two tabs are available.
20. Select the desktop and tablet form factor icons to see that the More drop-down doesn't appear.
21. Select the X to close the Preview overlay.
