Connect data to your components

Bind data exposed by local data resources to components on your UI Builder page.

시작하기 전에

Role required: ui_builder_admin

이 태스크 정보

Data binding is the process of associating data with a UI element that displays the information. Before binding data to components you must add a data resource to your UI Builder page, see Add and configure data resources to a page for more information.

프로시저

1. Navigate to All > Now Experience Framework > UI Builder.
2. Open an experience to work in or create an experience by selecting Create > Experience.
   See Configure how users interact with your applications in UI Builder for more information on creating experiences.
3. Create or open a page.
4. Add a data resource to your page.
   For more information, see Add and configure data resources to a page.
5. Add a component to your page.
   You need a component on your page before you can bind a data resource to it. For more information, see Customize UI Builder pages using components.
6. Select the Configure tab from the configuration panel in UI Builder.

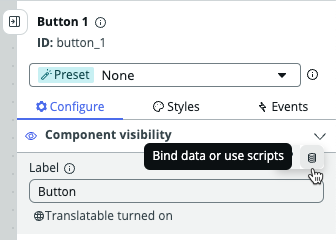

7. Point to a field that you want to bind data to and select the dynamic data binding icon ().

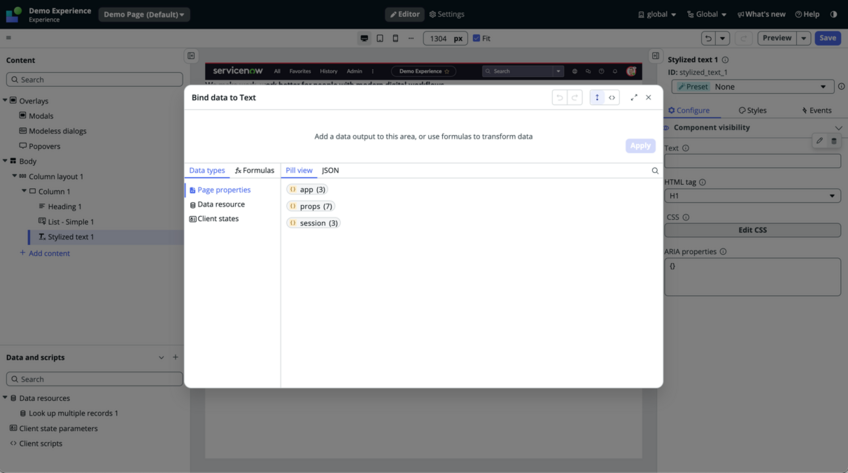

   The data binding modal appears.



8. Select Data resource in the Data types tab.

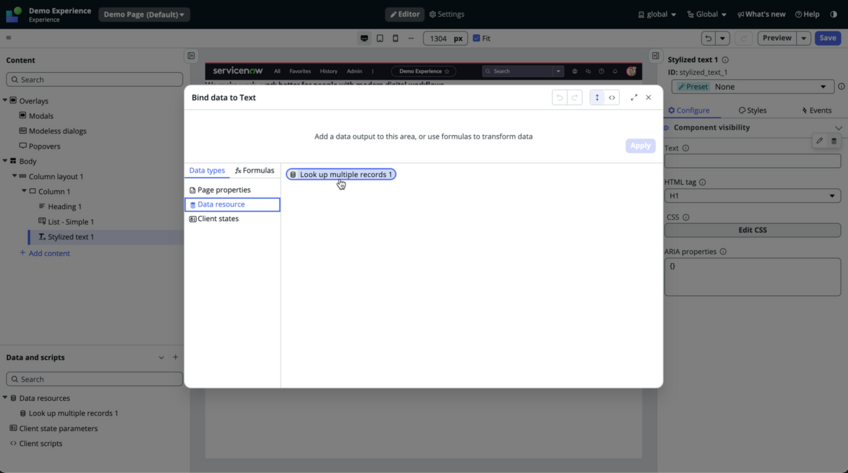

9. Select the data resource that you want to bind to the component.

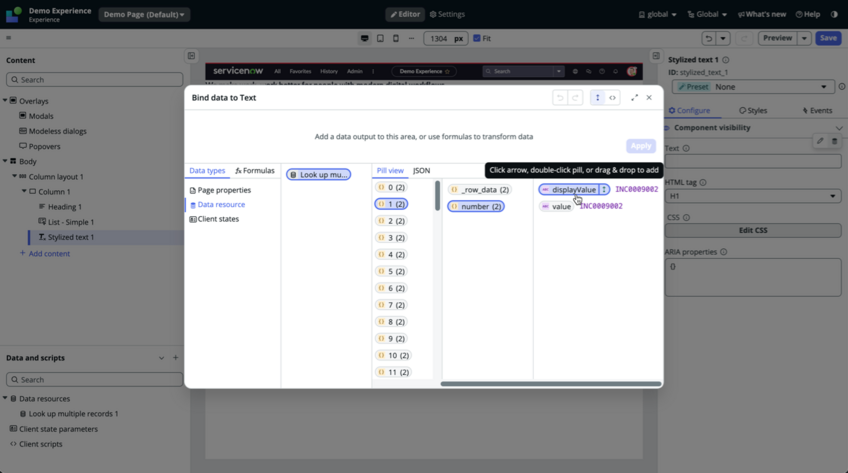

10. Select and drag the data you want to bind to the component into the field above.

    You may have to select several pills to get to a specific property value or display value.


11. Select Apply.

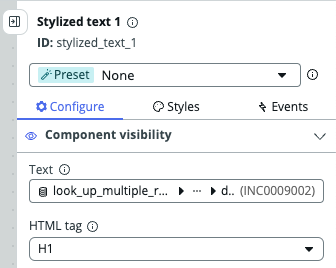

    The component displays the property value or display value that you've selected.


12. Select Save in the UI Builder header.
