Add an annotation to a subflow history entry

Add a text description to a subflow's flow history entry. Summarize the purpose or contents of a particular flow history entry.

시작하기 전에

Role required: flow_designer or admin

이 태스크 정보

Annotations are only visible from the sidebar History view.

프로시저

1. Navigate to All > Process Automation > Workflow Studio.
2. On the homepage, select Subflows.
3. Open the subflow whose flow history entries you want to annotate.
4. Select Edit subflow.
5. From the sidebar view, select the History icon.
6. From the list of flow history entries, select the entry that you want to annotate.

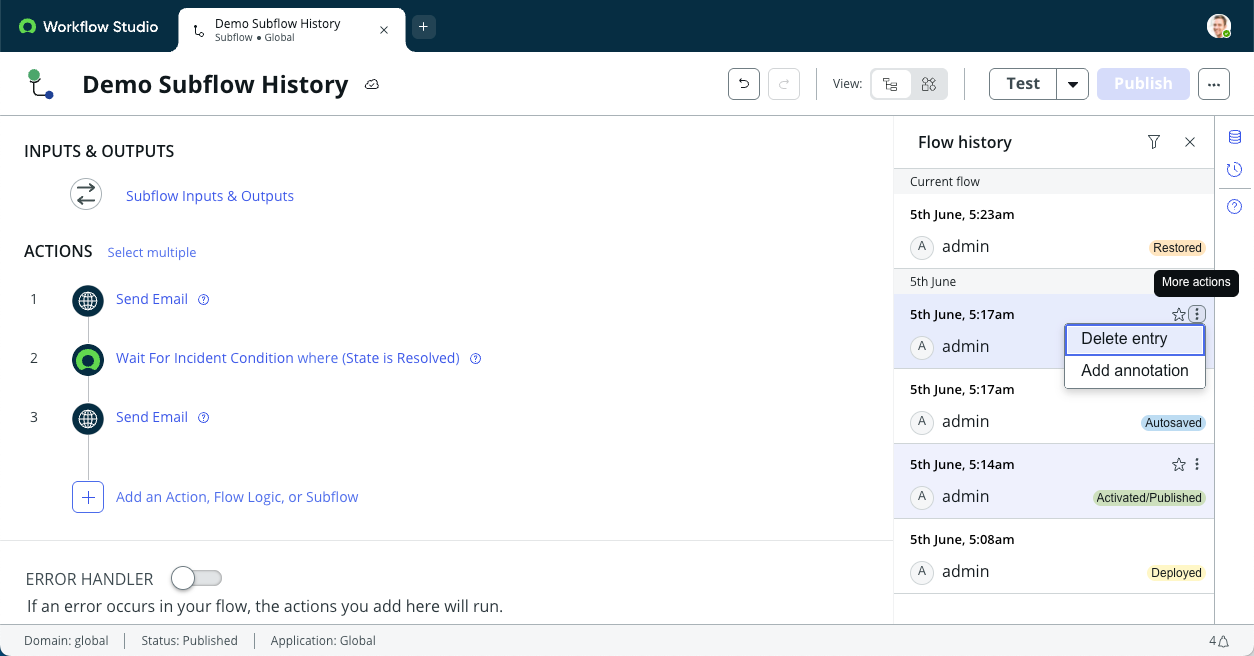

7. From More actions menu, select Add annotation.

8. In the text box, enter the text of the annotation.

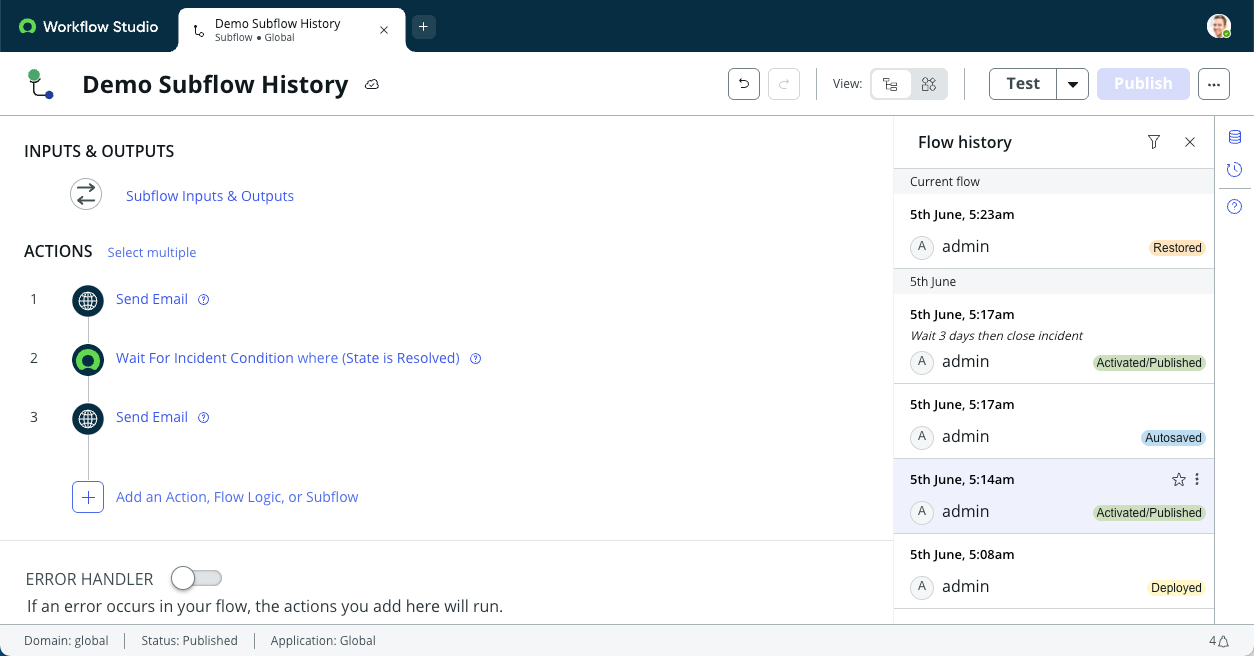

9. Press Enter to save the annotation.


다음에 수행할 작업

You can change the annotation using the Modify annotation option.
