Array.Integer data type

  • 릴리스 버전: Australia
  • 업데이트 날짜 2026년 03월 12일
  • 소요 시간: 2분

    • Store a sequence of numeric integer data in an array.

    Basic options

    Option Description
    Label Displays the label used to identify the data variable in the Workflow Studio interface. The label can consist of any text.
    Name Displays the name used to identify the data variable in script calls. The name can only consist of alphanumeric and underscore characters. The system automatically converts the label into a valid name by removing or replacing any special characters.
    Type Indicates the type of data stored by the data variable.
    Mandatory Indicates whether the data variable must contain a value when configured in an action.

    Advanced options for Array variables

    Option Description
    Hint Provides guidance to flow or action designers on how to configure the data.
    Max rows Specifies the maximum number of entries to display in the Workflow Studio interface. The array can store more values than it displays.

    Advanced options for Integer variables

    Option Description
    Hint Provides guidance to flow or action designers on how to configure the data.
    Default value Specifies the value used when a flow or action designer does not provide a value.

    Example

    You can use an array of integers to store the output of a script method call. For example, the Fetch Document Approval Sequence action uses a script step to generate an approval sequence data pill. The script output variable stores the sequence of approvers as an array of integers.

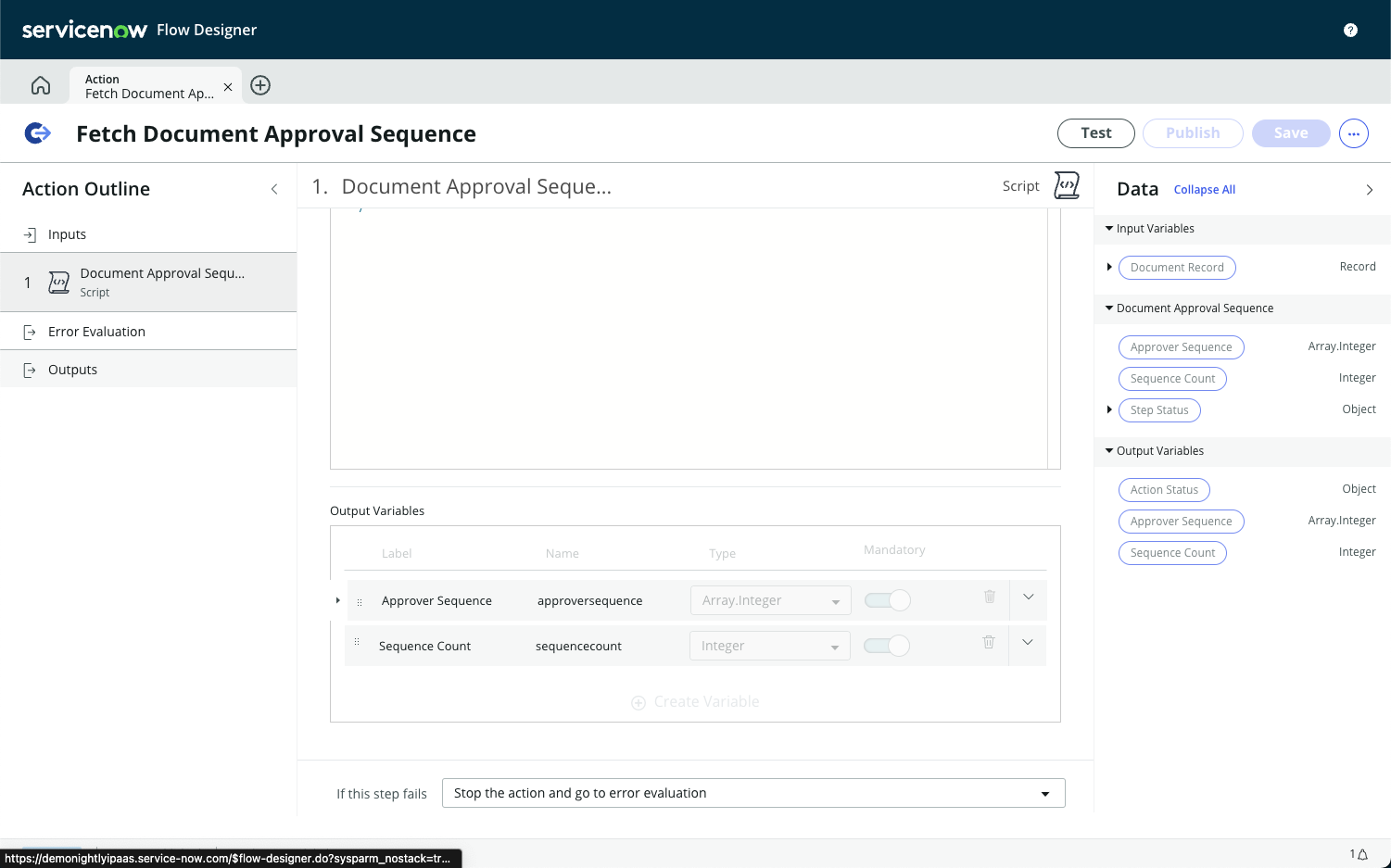

    그림 1. Script output of Fetch Document Approval Sequence action
    Script step that defines an output variable named Approver Sequence with the data type of Array.Integer
