See related flows for action

  • 릴리스 버전: Australia
  • 업데이트 날짜 2026년 03월 12일
  • 소요 시간: 2분

    • See the list of flows that include a custom action. Determine the impact that changes to an action have on published and draft flows.

    시작하기 전에

    Role required: admin or flow_designer

    이 태스크 정보

    Determine the impact that your action changes have on published and draft flows. See a list of flows that include the action and determine if your changes require changes to the related flows. For example, if you change the inputs an action uses, someone must reconfigure the related flows to use the new or modified inputs.

    프로시저

    1. Navigate to All > Process Automation > Flow Designer.
    2. Select Actions.
    3. Select the action whose related flows that you want to see.
      The system displays the action in the Workflow Studio environment.
    4. From the More Actions menu, select See related flows.

      The system shows the Related Flows dialog.

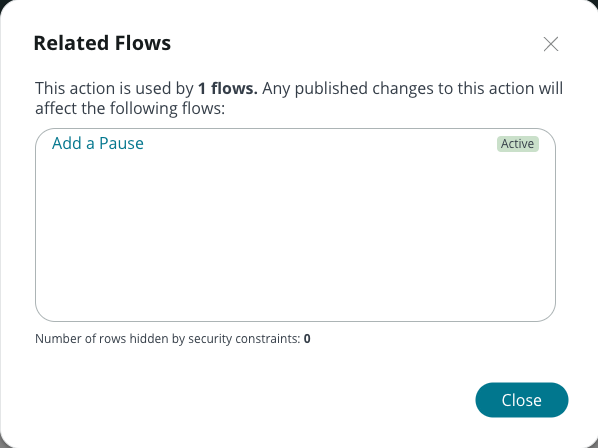

      The Related Flows dialog box displays 1 related flow named Add a Pause. The related flow is marked as active.

      The Related Flows dialog shows information about the flows that use the action.
      • The number of flows using the action
      • The name of each related flow
      • The activation status of each related flow
      • The number of flows using the action that are hidden by security constraints

    다음에 수행할 작업

    Determine if your planned action changes require updates to the related flows. Publishing an action also displays a list of related flows that use the action.
