Generate a ServiceNow cryptographic key

Follow this procedure to upload and configure a ServiceNow cryptographic key to encrypt sensitive data.

Before you begin

Role required: sn_kmf.cryptographic_manager

About this task

Cryptographic managers have the choice to use ServiceNow supplied keys or their own customer-supplied keys (CSK) for encryption on the ServiceNow AI Platform with Column Level Encryption Enterprise. For information on CSK, see Configure properties for customer-supplied keys.

Procedure

1. Set field encryption settings to use ServiceNow Generated Keys.
   See Configure field encryption settings to select key type for details.
2. Navigate to Key Management > Cryptographic Modules > All.
3. Select the corresponding cryptographic module to open the Cryptographic Module details page.
4. Select the row for the key alias entry on the Crypto Specifications tab.
   If a key hasn’t yet been generated, the key alias field is empty.
5. Select Next to navigate to the Key Origin tab of the Crypto Specification components.
   The Lifecycle Definition tab displays along with the Key Lifecycle table and can be reviewed or edited. See Configure key lifecycle states for details.

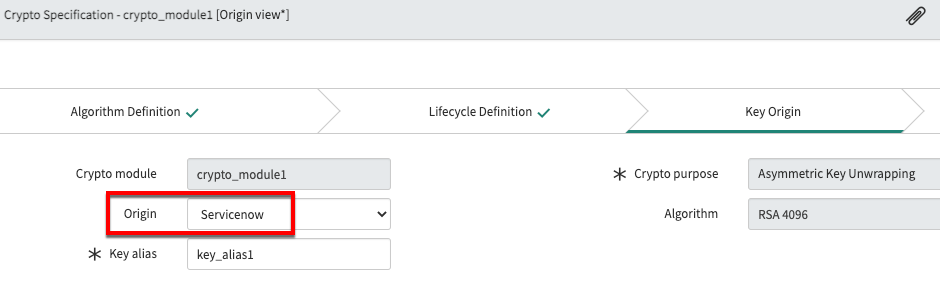

6. Select Servicenow in the Origin field.
   This field varies based on the field encryption settings from Step 1 and the algorithm selected. To use an imported key, see Import the wrapping / unwrapping key pair. See Configure properties for customer-supplied keys if you’re using your own key.
7. Enter a friendly name for the Key alias.
8. Select Next to move to the Key Creation tab.
9. Select Generate Key.
   After you generate the key, the Cryptographic Module form reloads displaying the cryptographic specification.

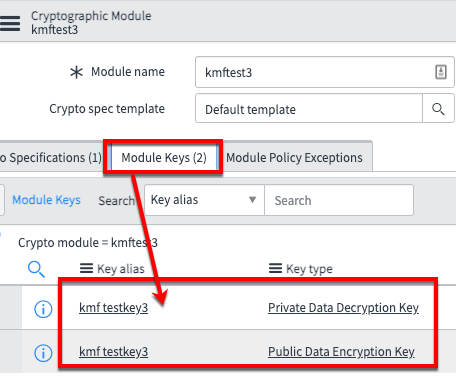

10. Select the Module Keys tab to view the keys.
    Secure information for the key is stored on the Module Keys tab along with the number of keys that exist for the cryptographic specification.



11. Select a key to perform key management actions.
    See Key management actions for details.
