Create spoke and build actions using the spoke generation skill in Now Assist

Automate an integration and generate reusable actions by providing the required third-party API documentation snippet as an input.

Before you begin

Role required: admin.

Procedure

1. Navigate to All > Process Automation > Workflow Studio.
2. Click Create new > Spoke.
3. On the Spoke Info screen, specify if you want to create the spoke in a new scope or an existing scope.

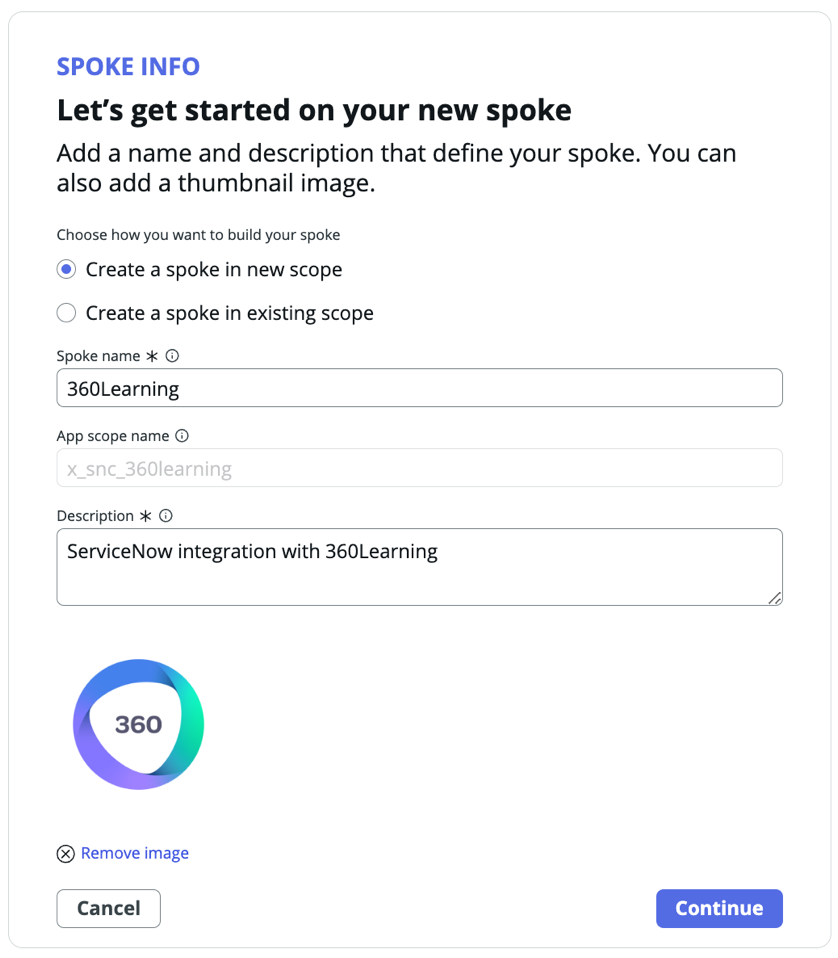

   1. If you choose to create the spoke in a new scope, select an image as the logo for your integration and fill in the fields.

      Here, we will go through an integration with 360Learning as an example.

      Field	Description
      Spoke name	Name to identify the custom spoke.
      Description	Description about the custom spoke.



      Note:

      The value of App scope name is the format: x_<company-code>_<spoke-name>_<spoke>. By default, the <company-code> is, snc. You can configure the company code by configuring Value of the system property, glide.appcreator.company.code.

      This configured value is used when the value App scope name is generated.

   2. If you choose to create the spoke in an existing scope, select an image as the logo for your integration and fill in the fields.

      Here, we will go through an integration with 360Learning as an example.

      Field	Description
      Application name	An existing application name or scope.
      App scope name	Scope name that is auto-populated based in the selected Application name.
      Description	Description about the custom spoke.

4. Click Continue.

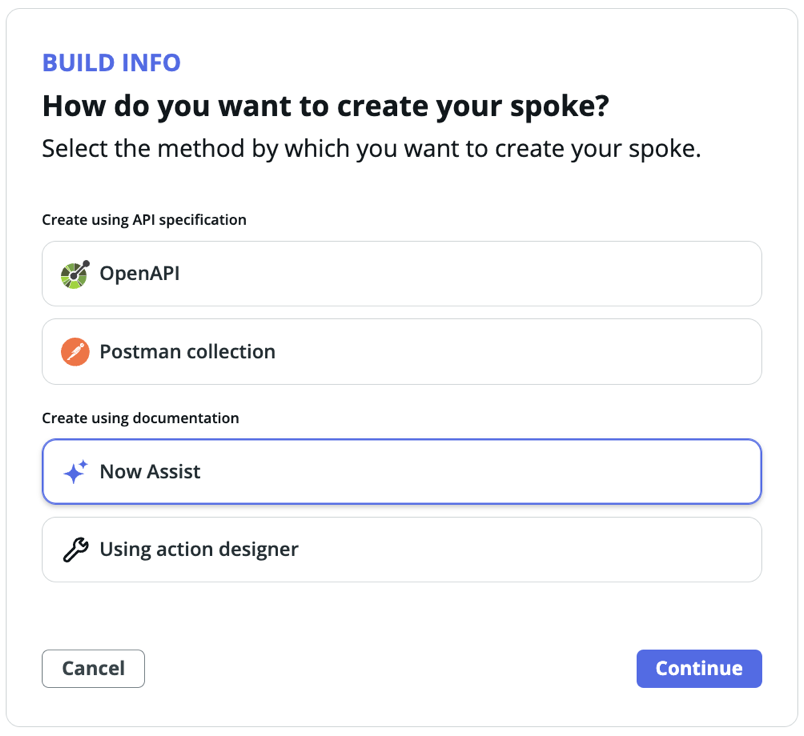

5. On the Build Info screen, select the method using which you want to build your spoke.
6. Select Now Assist and click Continue to generate reusable actions by providing the required third-party API documentation snippet.

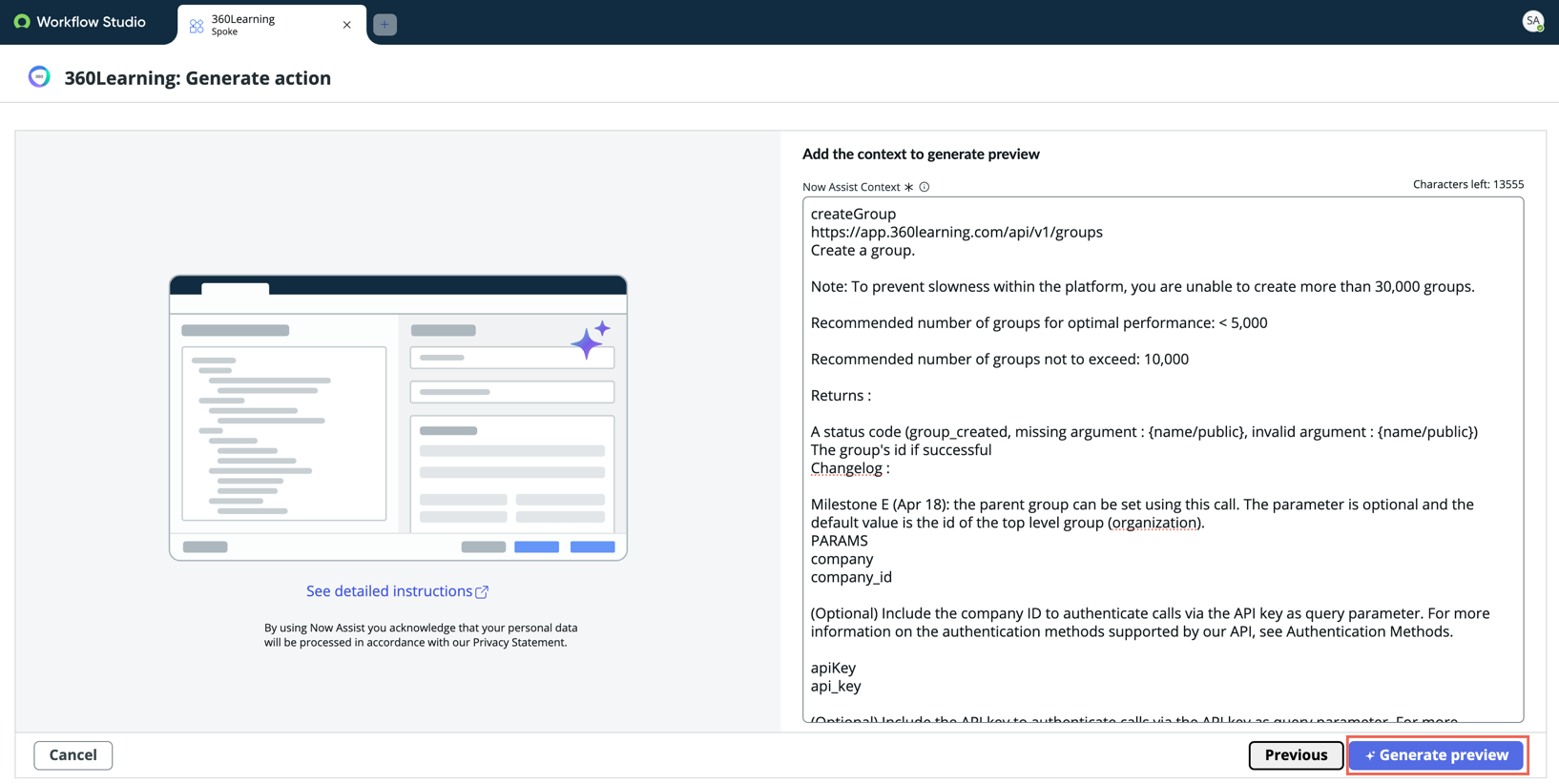

7. On the Generate action screen, paste the required content from the 360Learning API documentation in Now Assist Context.
   In this example, we will copy the documentation related to the createGroup action and paste it in Now Assist Context.

   Note:

   Ensure that you paste the documentation related to only one action at a time.

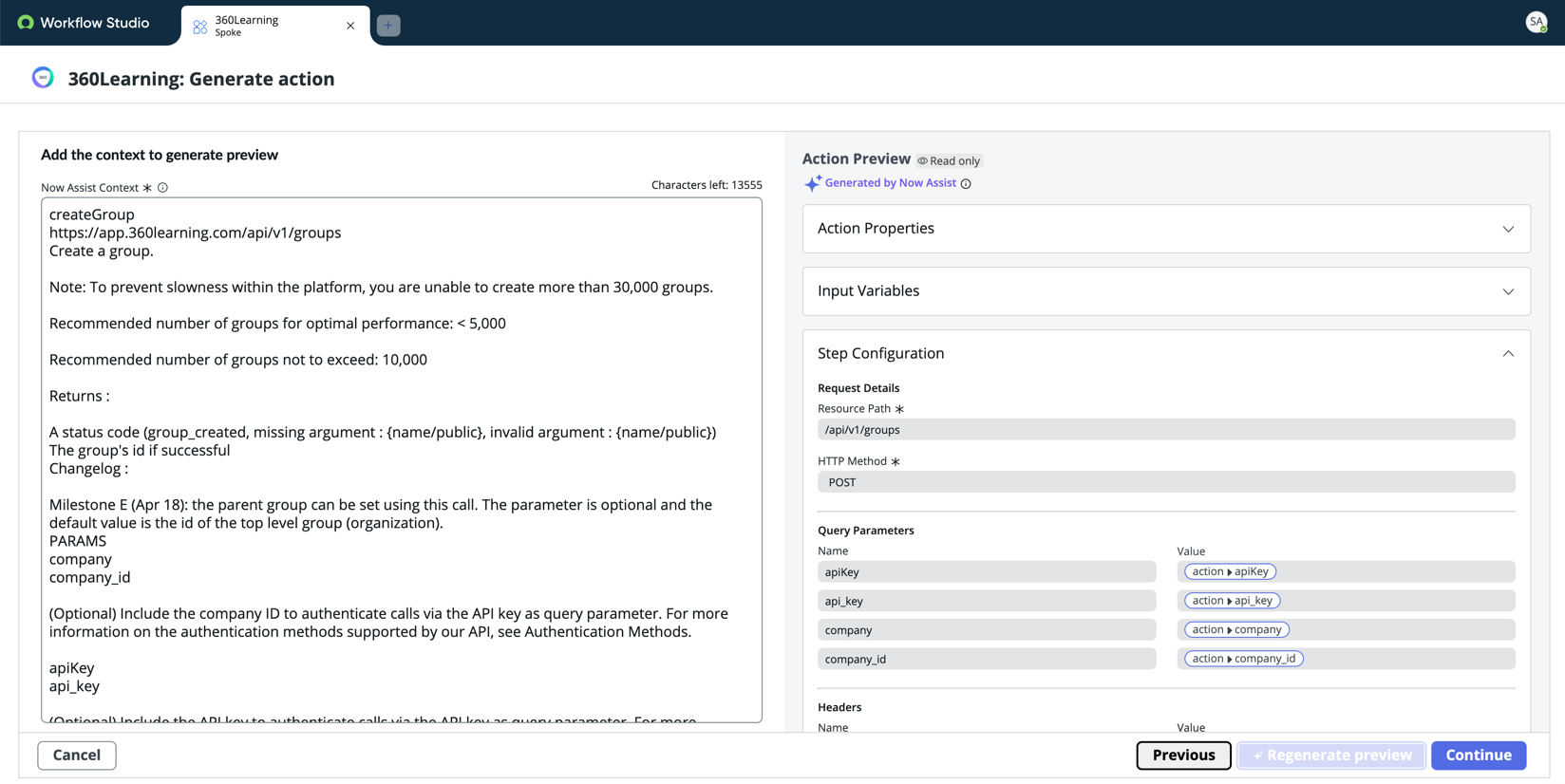

8. Click Generate Preview.
   The action preview is generated. Details of the action properties, inputs, outputs, and steps are displayed.



9. Optional: If you want to modify the generated action, modify the provided content in Now Assist Context accordingly and click Regenerate preview.

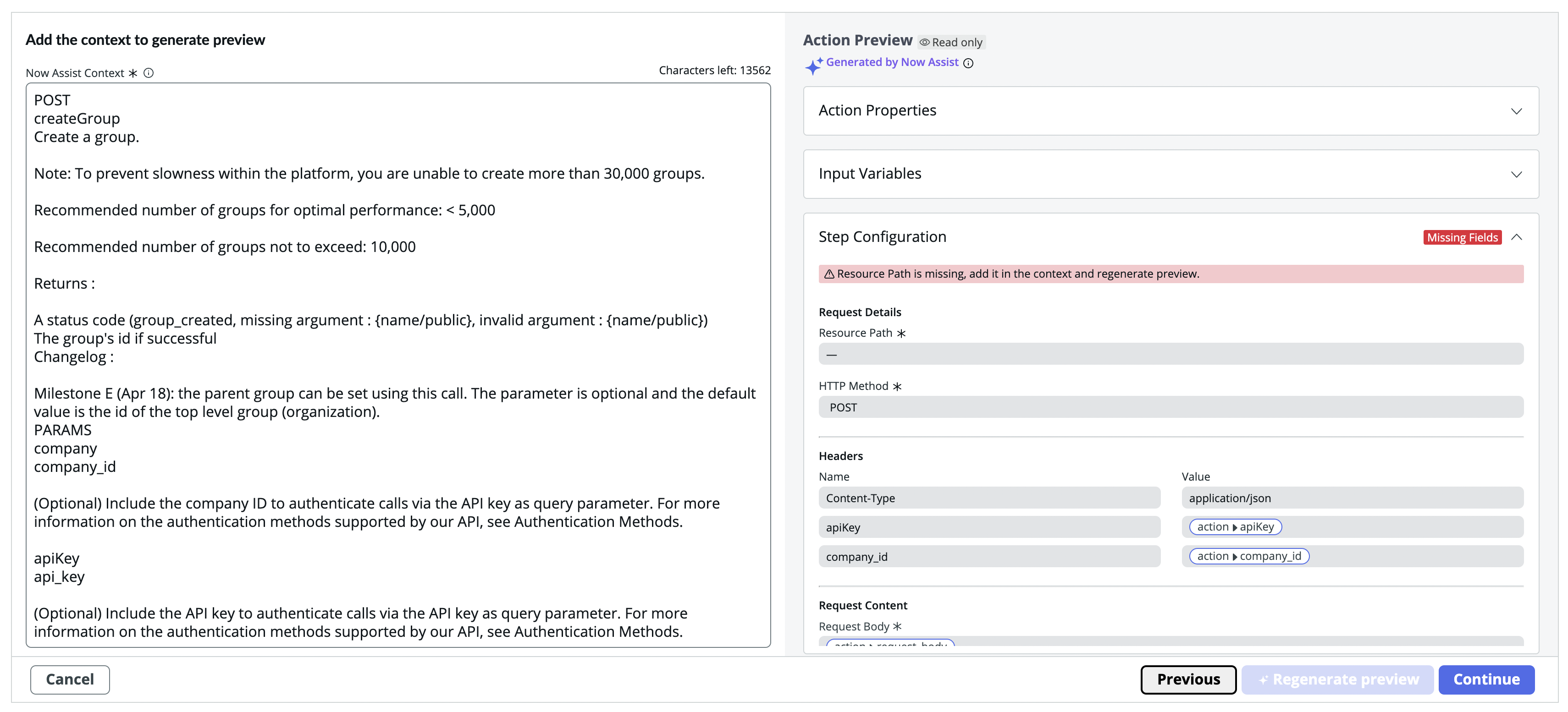

   If there are any missing fields in the content provided for Now Assist Context, an error message is displayed.



10. Click Continue.
11. On the Select connection and category screen, for Connection and credential alias, click Create new.

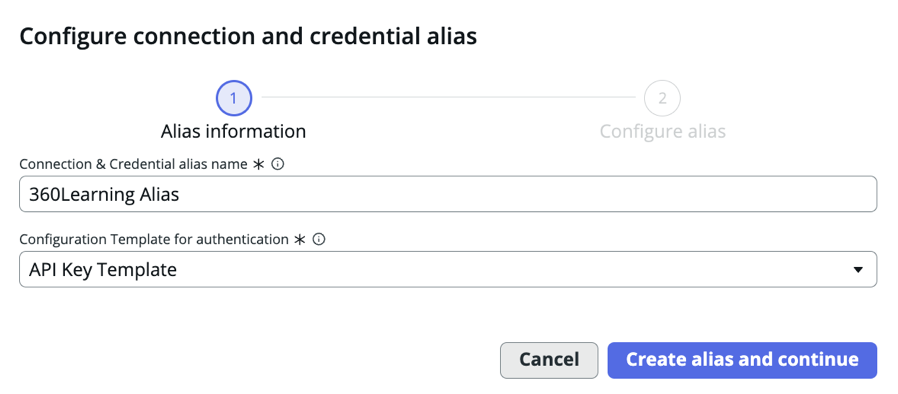

12. On the Create new connection and credential alias screen, fill in the fields and provide the alias information.

    Field	Description
    Connection & Credential name	Name to identify the connection and credential alias record.
    Configuration Template for authentication	Required authentication mechanism for this integration. Ensure that the authentication mechanism is compatible with the third-party application.



13. Click Create alias and continue.
14. On the Configure connection and credential alias screen, fill in the fields to configure the alias.

    Field	Description
    Connection Information
    Connection Name	Name to identify the connection record.
    Connection URL	Base URL to connect to the third-party instance or server.
    Credential Information
    Based on the configuration template you had selected, the relevant credential fields are displayed. Provide the required values to configure the credential record.

    If you want configure the alias record later, click Do it later.

15. Click Submit.
    The connection alias record is created.

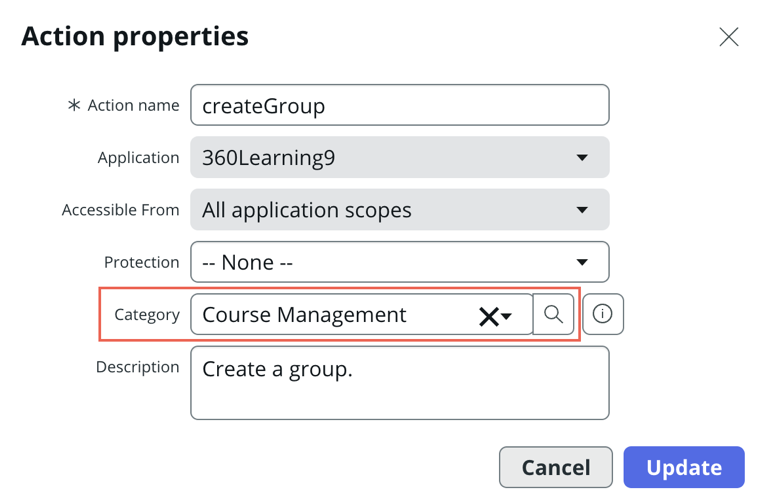

16. Optional: On the Select connection and category screen:
    • For a new spoke, leave the category empty. You can update the action properties later on, if needed.



    • For an existing spoke, assign an existing category.

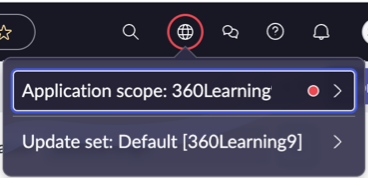

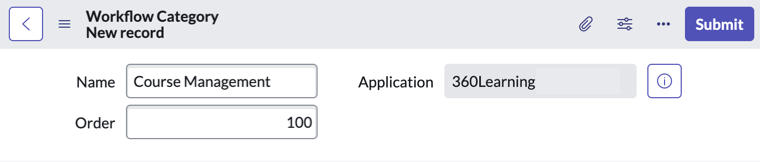

      If a category is unavailable, create the required action category for your integration in the Action Category [sys_hub_category] table. You must ensure that the category is created in the same Application scope as that of the spoke.





17. Click Publish.
    Note:

    If there are any missing fields, you can't publish the action. Instead you can save the action as a draft by clicking, Save action as draft.
    The action is created. You can create another spoke action or navigate to the Spokes page.

    If you have saved action as a draft, you can access these draft actions in the spoke details page under Actions > Draft.
