How to create parallel task from flow designer for multirow variable

lucky24
Tera Contributor

Hi Team,

I am working on catalog item in which we are using multirow variable "DL-DLP name" so we want create parallel task from flow designer according multi row variable set.


Means If there are 6 row or 7 row so according that 6 or 7 task should be create parallel and we want those row value in description of task and RITM.

i haven't work on flow designer before

Please can someone help me  how can we achieve this?

5 REPLIES 5

ronprice
Giga Guru

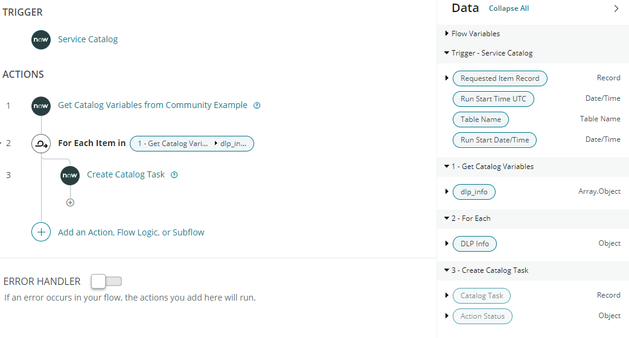

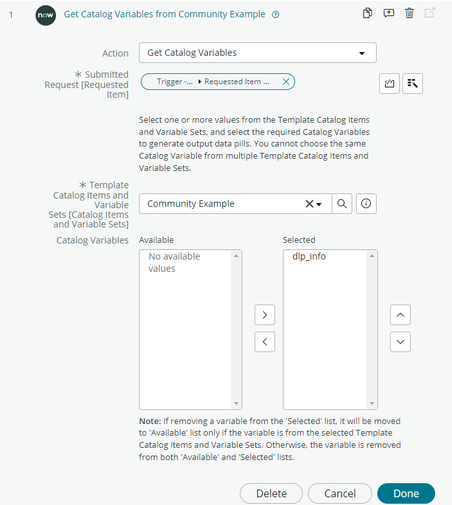

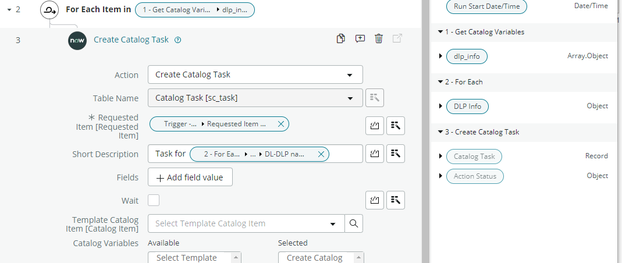

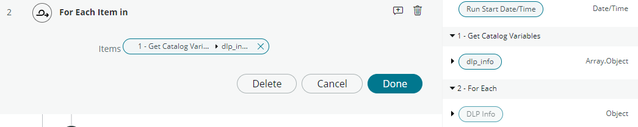

This is pretty easy - within a Flow you can set up a loop on the MRVS.  See screenshots below:







Please mark as correct/helpful if this helped solve your question.

lucky24
Tera Contributor

Hi Ronprice,

Thanks for your response

How can we populate value of  multirow variable from respective task description?

I assume that you mean - "How can we populate value of  multirow variable TO THE respective task description" since it doesn't make sense to try to populate the multirow variable from a task.

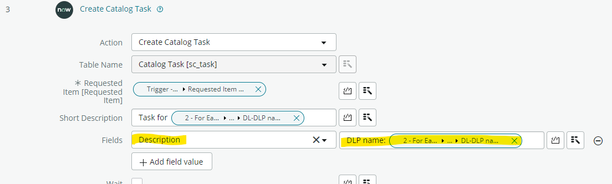

In the Create Catalog Task, click on +Add field value and select the Description field.  Then put in whatever text you want in the box to the right and drag the DLP name data pill from the For Each on the right side of Flow Designer.  Below is an example of what the end result could look like:








lucky24
Tera Contributor

Hi Ronprice,

I am unable to drag  DLP name from the for each,




Why it is happning?
