Implementation of a IT-Kiosk with Walk-Up Experience on Service Portal

TC2201
Kilo Contributor

Hi. For an apprenticeship project, I try to add an IT Kiosk in a Service Portal in using Walk-Up Experience ServiceNow application and set-up the application according to requirements of the project.

To do this, I tried to clone the widget Online Check-In and after some issues, I have copied Angular ng-templates to the cloned widgets


, but what I don't still understand is when I try to access to my digital_centre page(the name of my IT Kiosk according to specification requirements) is I'm redirected directly to a location with an url containing a location id paramater, without passed through the page to select the "location" in dropdown list.

Moreover, the page is empty and the component proposing to join a waiting queue is not available.


When I use the original widget "Online check-in experience", I'm also redirected directly to a location without have in the first place a dropdown list to choose my location, but the widget to join a waiting queue is displayed on the page.

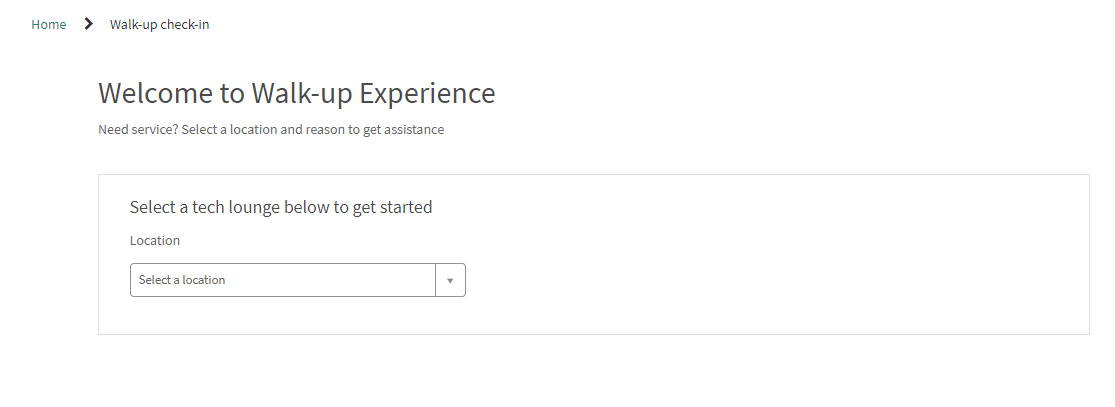

However, contary to this image found on another topic, the tab "Schedule an Appointment" doesn't appear, amond some other informations.


I would like to understand why I'm redirected directly to a location id without to be asked for the location I want in a dropdown list, why the component to join a queue and Schedule an appointment tab are not displayed on the page, even in the original widget.

Thank You in advance to those who could bring me a helping hand.

17 REPLIES 17

dmathur09
Kilo Sage
Kilo Sage

Hi,

Can you check if you have configured any location in wu_location_queue table?

Regards,

Deepankar Mathur

TC2201
Kilo Contributor

Hi. Not sure if that's what you mean, but my locations in Walk Up Location Queue are all active and have their enable away satet to True.


TC2201
Kilo Contributor

I put fields active and enable_away_state of my wu_location_queue for all records to false and now the dropdown list appears, but is empty of choices.

Hi,

Can you make those all active and make the enable away state as false.

Regards,

Deepankar Mathur
