Edit corner shapes

Edit and change the corner shapes applied globally to components such as buttons, modals, and drop-down menus throughout your Theme Builder theme.

始める前に

Role required: ui_builder_admin

For information on granular roles, see Granular admin roles.

手順

1. Navigate to All > Now Experience Framework > Themes > Theme Builder.
   The Theme Builder landing page appears in the Home page view.
2. Use the Page drop-down list to select the Editor page view.

   図 : 1. Page drop-down list



3. From the Theme drop-down list, select the theme that you want to edit.
   The Global styles tab opens automatically with the Overview panel displayed.

   図 : 2. Editor page view



4. From the Overview panel, navigate to the Shape section and select the current shape listed in the Corners field.

   図 : 3. Overview panel Shape section



   注:

   You can also change the shape directly from the Shape panel.

   図 : 4. Shape panel



5. Select a new corner shape from the list of predefined shapes.

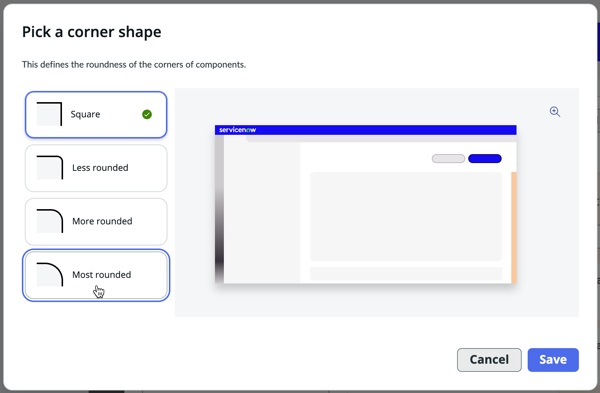

   図 : 5. Pick a corner shape modal



   注:

   Use the preview pane within the modal to view how the components look for each corner shape you select.
6. Select Save.

タスクの結果

If your theme is published, your edits are visible to users who have your theme applied on refresh. For information on publishing your theme, see Publish your themes with Theme Builder.
