How To Create Url that Triggers a Ui page ??

[Tarun2]

Hi ,

I have a requirement to Trigger UI Page using a Button . Onclick() i am trying to open a Ui page.

* Button Created using Ui Actions in a Table's Form

* Both Ui page and Ui action are in the Same scope .

                              I have Tried these ways :

1.g_navigation.openPopup() for ui page

2,window.open('/<UipageNAME >.do?sysparm_id='+g_form.getUniqueValue());

3.Dialog

var dialog = new GlideDialogWindow("UipageNAME");
dialog.setTitle("UI Page Opened");
dialog.setPreference("sysparm_id", g_form.getUniqueValue());
dialog.render();

                         Nothing Worked For me . Maybe , I had issue in Creating url for ui Page .

Check My Previous Thread : https://community.servicenow.com/community?id=community_question&sys_id=a0fb1736db13c0502be0a851ca96...

But , i had a Hard Time Creating URL for Ui page .Its not Working

Help me Creating url for a Ui Page in Right way . My UI Page : TraceDemo

Please ,Help me in Triggering Ui page Using Ui Actions Button.

Any Suggestion is Appreciated .

Thankyou,

[Harsh Vardhan]

if you will go to the ui page, pass the endpoint field value as ui page name

[Tarun2]

Hi Harshvardhan,

I have  done using Endpoint name : x_445906_mydemo_Trace.do

It showed Error .

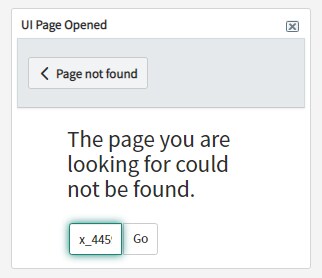

I Removed (.do ) and Tried, This Time No Error but Nothing is Visible .

My Ui Page consists , html , css, javascript .

Does Dialog Box was unable to Render That Ui page ??

Is that the issue ??

If thats it > Can we Show ui page in Another Window .

Using Window.Open, g_navigation.openPopup() Methods .

But , i need Ui page url for that .

Can u Know How To Create Url for Ui Page .

Thankyou ,

[Harsh Vardhan]

are you doing it on personal instance, i can quickly check it , if yes share the details on below email.

hvrdhn88@gmail.com

[Tarun2]

Hi Harshvardhan ,

Sorry .

I'm not supposed to do so , Its a Multiple user Instance .

I can Give you the Entire Code in Ui page and Ui Button .

Thankyou ,
