Help in creating Breakdown on catalog variable referring to Cmdb table

kriti2
Giga Contributor

I need to created a breakdown for a catalog item variable.  Need help as the data is not showing up in the breakdown. I am new to PA advance reporting.



I have a variable name as "Server Name" referring to cmdb_win_server the requirement is for created breakdown for this:



Created break down source and mapping :

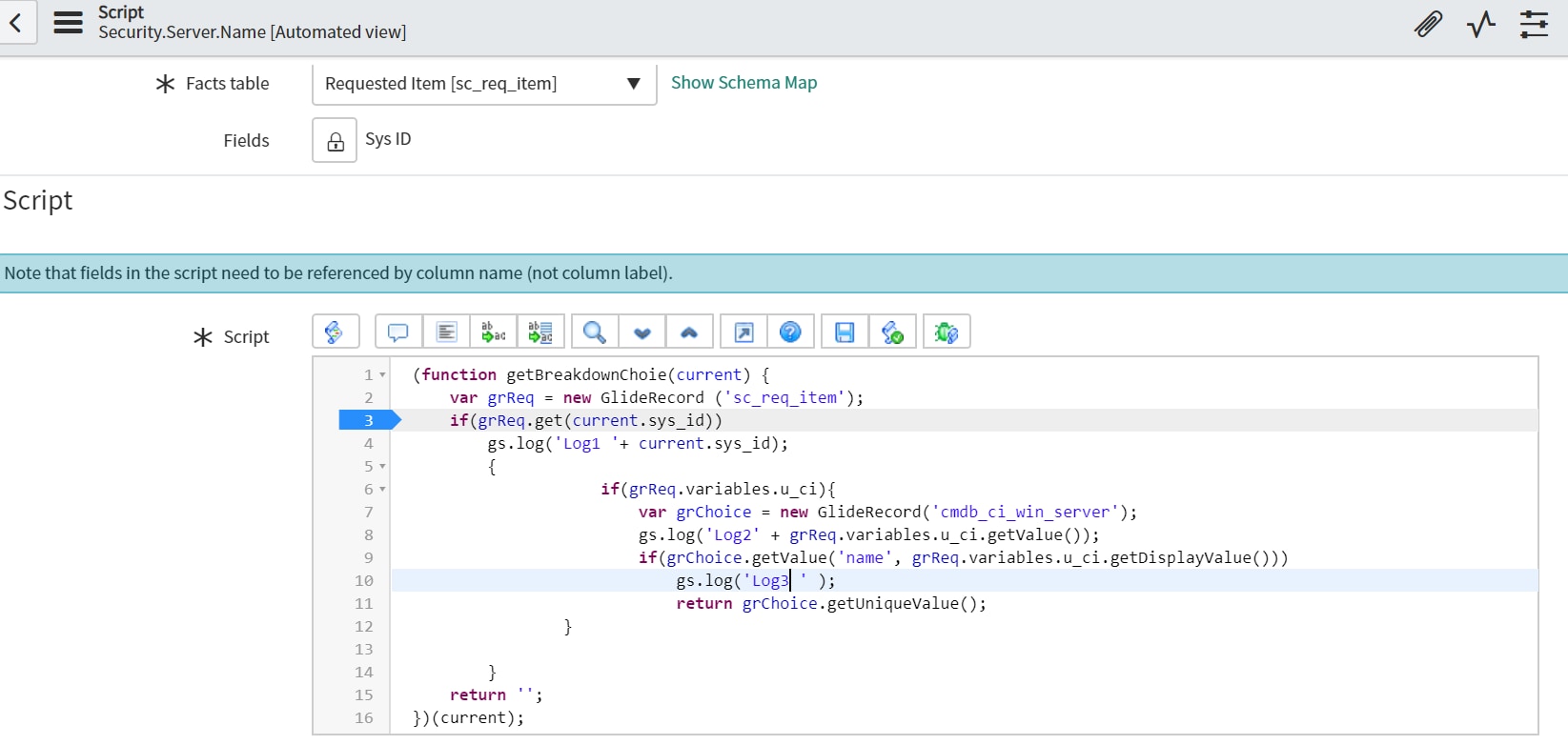

 and the scripted mapping is:






Log 1 and Log 2 is running successfully Log 3 is giving java error:








 Can anyone help me on this and guide me  🙂

Thanks in advance.

1 ACCEPTED SOLUTION

Ankur Bawiskar
Tera Patron
Tera Patron

Hi Kriti,

you are not querying "cmdb_ci_win_server" table in line number 9 properly

change it to below use get method and not getValue() while querying

grChoice.get('name', grReq.variables.u_ci.getDisplayValue());

Mark Correct if this solves your issue and also mark Helpful if you find my response worthy based on the impact.
Thanks
Ankur

Regards,
Ankur
Certified Technical Architect  ||  9x ServiceNow MVP  ||  ServiceNow Community Leader

View solution in original post

6 REPLIES 6

Ankur Bawiskar
Tera Patron
Tera Patron

Hi Kriti,

you are not querying "cmdb_ci_win_server" table in line number 9 properly

change it to below use get method and not getValue() while querying

grChoice.get('name', grReq.variables.u_ci.getDisplayValue());

Mark Correct if this solves your issue and also mark Helpful if you find my response worthy based on the impact.
Thanks
Ankur

Regards,
Ankur
Certified Technical Architect  ||  9x ServiceNow MVP  ||  ServiceNow Community Leader

Hi Ankur,

Thanks it worked 🙂

Great.

Can you also mark answer as helpful. Thanks in advance

Regards

Regards,
Ankur
Certified Technical Architect  ||  9x ServiceNow MVP  ||  ServiceNow Community Leader

Adam Stout
ServiceNow Employee
ServiceNow Employee

1) I highly discourage using GlideRecord in a Performance Analytics script.  See if you can do this in a view instead.  The performance will be much (much better) better.  Using a script, you have to run a separate query for every row returned by your indicator source.  With a view, it is all done in a single query on the database.  It won't make much of a difference if you have 10 rows or 100 rows, but if you have thousands or tens of thousands, you'll surely notice.

2) Why are you breakdown down on a CI?  This is generally discouraged as you often end up with too many elements in the breakdown. If you only have a few windows servers, this isn't an issue, but if you have more than a few thousand, you may see performance issues rendering this on a dashboard.
