how to get the model name catalog item from to the short description for SCtask ?

[chercm]

i have created a catalog item form and attached the flow designer to create SCtask ticket but i cannot the model name to be populated on the short description field

what  should i select ?

 

[Vishal Birajdar]

Hi @chercm

You can use OOTB "Get catalog variables" action.

Below link might help you:

https://www.servicenow.com/community/developer-articles/access-ritm-variables-using-flow-designer/ta...

[Vishal Birajdar · Accepted solution]

Hi @chercm

There is also a another way :

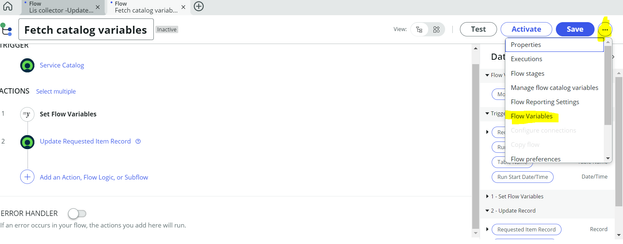

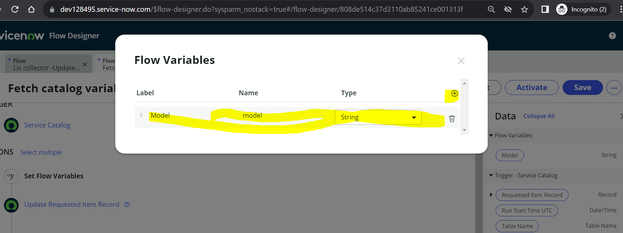

Step 1 : Create flow variable

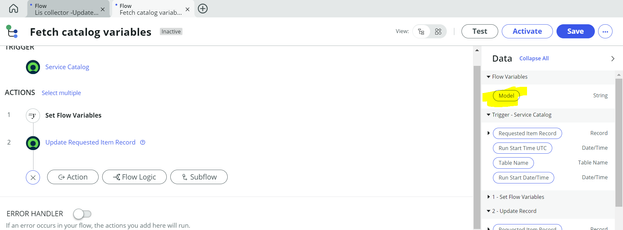

It will look like this in data picker

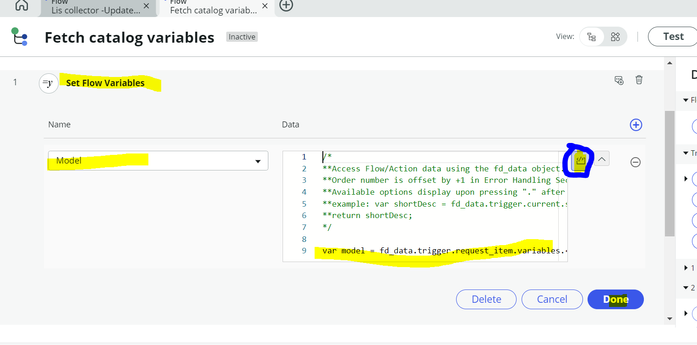

Step 2 : Create flow logic "Set flow variables"

Use Toggle script to set the value (Highlighted in blue)

In script  write below code

var model = fd_data.trigger.request_item.variables.<your_variable_name>;
return model;

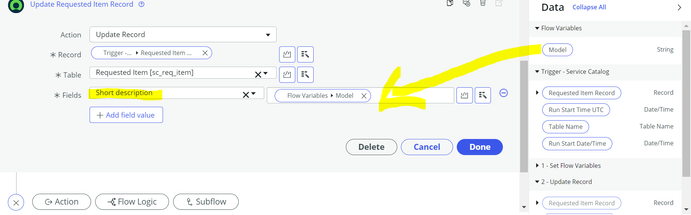

Step 3 : Drag & drop the flow variable in Short description of Catalog task

Note : for demo I have used "RITM" table.

[chercm]

@Vishal Birajdar the short description seems not recognised

[Vishal Birajdar]

Hi @chercm

Is Model variable referencing any table....??
