Card disputes data model

This section outlines the card disputes data model and the tables installed with the disputes application.

Card disputes data model

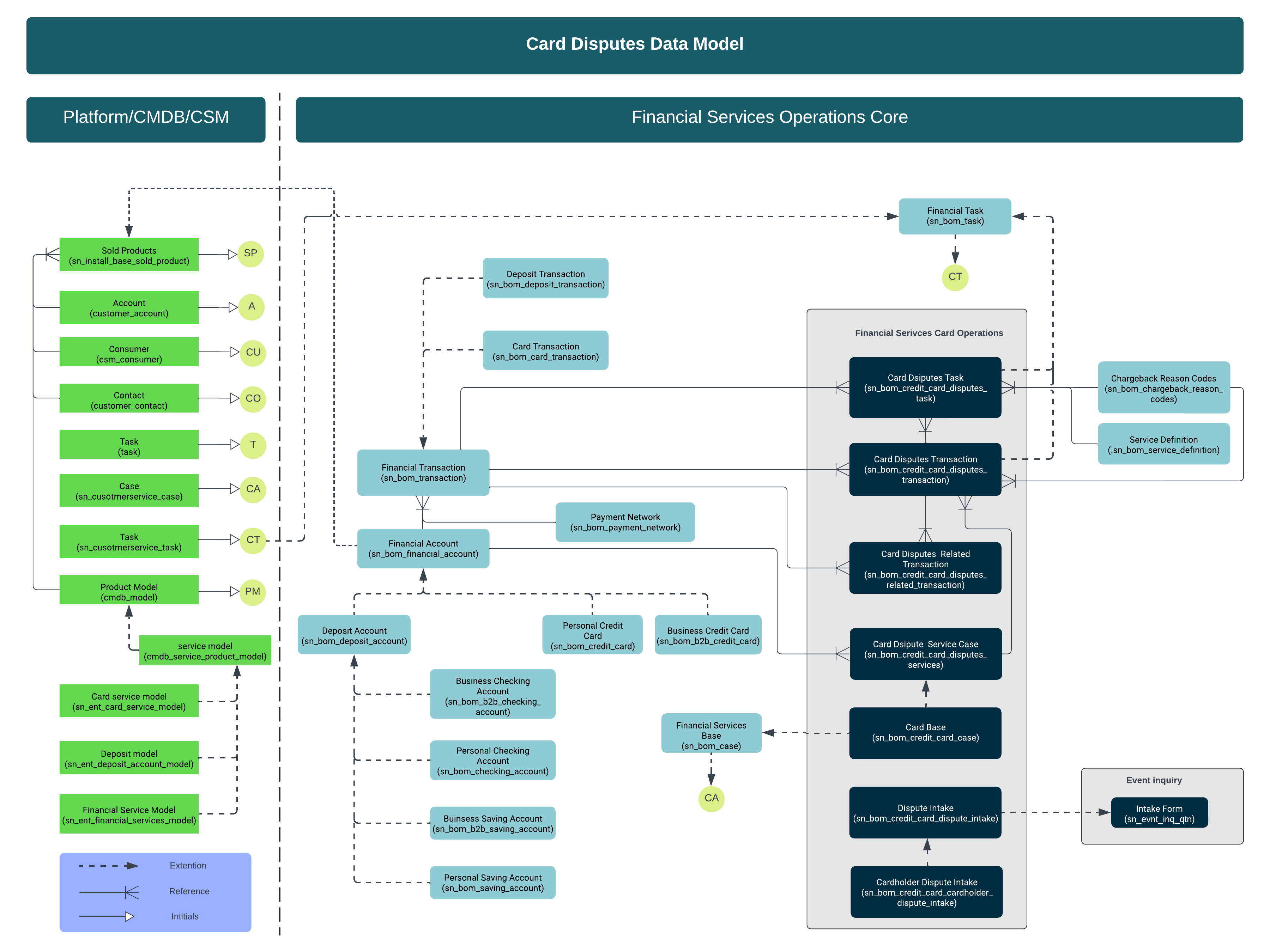

The following diagram shows the tables and their relationships within the card disputes data model.

Figure 1. Dispute data model

Card disputes tables

Entity	Table Name	Description
Dispute Task	sn_bom_credit_card_disputes_task	Stores all dispute tasks. This table extends the Financial Task [sn_bom_task] table.
Dispute Transaction	sn_bom_credit_card_disputes_transaction	Stores all dispute transactions.
Business Checking Account	sn_bom_b2b_checking_account	Stores all checking account records for consumers. Extends the Deposit Account [sn_bom_deposit_account] table.
Business Saving Account	sn_bom_b2b_saving_account	Stores all saving account records for business customers. Extends the Deposit Account [sn_bom_deposit_account] table.
Deposit Account	sn_bom_deposit_account	Stores all deposit accounts – Checking and Saving records. Extends the Financial Account [sn_bom_financial_account] table.
Financial Account	sn_bom_financial_account	Stores all financial accounts – deposit accounts, loan accounts, credit card account, line of credit accounts, and insurance policy accounts. Extends the Sold Product [sn_install_base_sold_product] table.
Financial Task	sn_bom_task	Stores all financial tasks such as inquiry tasks, claim tasks, credit tasks, and loan tasks. Extends the Industry Task [sn_ind_task] table.
Financial Transaction	sn_bom_transaction	Stores all financial transactions for deposit, loan, and credit card accounts.
Line of Credit	sn_bom_line_of_credit	Stores all line of credit account records. Extends the Financial Account [sn_bom_financial_account] table.
Personal Checking Account	sn_bom_checking_account	Stores all checking account records for consumers. Extends the Deposit Account [sn_bom_deposit_account] table.
Service Definition	sn_bom_service_definition	Stores all service definitions configured for all workflows across Financial Services Operations applications.
Card Transaction	sn_bom_card_transaction	Stores all card transaction records. Extends the Financial Transaction [sn_bom_transaction] table.
Deposit Transaction	sn_bom_deposit_transaction	Stores all deposit transaction records. Extends the Financial Transaction [sn_bom_transaction] table.
Credit Transaction	sn_bom_line_of_credit_transaction	Stores all line of credit transaction records. Extends the Financial Transaction [sn_bom_transaction] table.
Visa Dispute Intake	sn_bom_visa_cp_visa_dispute_questionnaire	Stores all Visa Dispute Questionnaire questions and responses. Extends the Intake Form [sn_evnt_inq_qtn] table.
Visa Dispute Cardholder Intake	sn_bom_visa_cp_visa_dispute_cardholder_intake	Stores Visa Dispute Questionnaire questions and responses submitted by consumers, such as a dispute playbook on a service portal. Extends the Visa Dispute Intake [sn_bom_visa_cp_visa_dispute_questionnaire] table.
CRB Region Type	sn_bom_visa_cp_crb_region_type	Stores all Visa Card Recovery Bulletin (CRB) regions.
Mastercard Chargeback Reason Code Message	sn_bom_mcard_cp_mastercard_chargeback_reason_codes	Contains the Mastercard chargeback reason codes and associated messages.
Sold Products	sn_install_base_sold_product	This table is used to import and provide a view into the products and services that have been sold to an account or consumer. It helps customers, consumers, and customer service agents access details about sold products.
Product Model	cmdb_model	This table is used to configure product models, such as services, hardware, software, or consumables that the company sells and supports.
Card dispute service case	sn_bom_credit_card_disputes_services	This table is used by agents to begin the card dispute process or report a dispute by creating a dispute case on behalf of a customer.
Card service model	Sn_ent_card_service_model	Model table to store card product information
Deposit model	sn_ent_deposit_account_model	Model table to store deposit products like Savings account, checking accounts, and so on.
Case	sn_customerservice_case	A case record includes detailed information about customers, their reported questions or issues, and the work performed to answer questions and resolve issues. E.g., Card dispute service case table.
Task	Task	Task table is used to store and track the progress of various work assignments on a Case.
Task	sn_customerservice_task	The sn_customerservice_task table in ServiceNow is designed to centralize all customer service tasks. This table helps in organizing and managing customer service tasks efficiently, ensuring that all relevant information is easily accessible and manageable.
Card disputes related transaction	sn_bom_credit_card_disputes_related_transaction	To store details of related transactions in the context of a card dispute, e.g., associated transactions with respect to a Visa dispute.
Service Definition	sn_case_type_selection	Service definitions are used to create connections between products, services, and case types. Service definitions work with case types to provide different types of service requests, e.g., Issue final credit.
Intake Form	sn_evt_inq_qtn	The table is designed to store questions asked during the processing of various types of requests. This table serves as a generic repository for documenting interactions related to various types of requests. It ensures that all necessary questions are asked, and responses are recorded.
Personal Saving Account	sn_bom_saving_account	Table to store details of a type of bank account that allows customers to deposit money and earn interest on it.
Payment Network	sn_bom_payment_network	Table to store information about the payment processing networks in the context of cards. E.g., Visa interlink, Pulse.
Business Credit Card	sn_bom_b2b_credit_card	Table to store details of a type of credit card that is designed for businesses to purchase goods or services on credit with benefits tailored to their needs.
Personal Credit Card	sn_bom_credit_card	Table to store details of a type of credit card that allows individuals to purchase goods or services on credit.
Chargeback Reason Codes	sn_bom_chargeback_reason_codes	Chargeback reason codes are numerical codes used to categorize the reasons why a cardholder disputes a transaction. These are provided by card networks like Visa, Mastercard, American Express. The table holds details of these reason codes.
Financial Services Base	sn_bom_case	The Financial Services Base table serves as the parent table for all types of financial case records within a system. It acts as a central repository that provides a unified structure for managing various financial cases, such as disputes, fraud investigations, loan applications, and other financial inquiries or issues. Each record in this table represents a unique financial case, with associated metadata that links to more specific case details stored in related child tables.
Account	customer_account	Table in ServiceNow is designed to define and manage customer accounts. This table helps in organizing and maintaining customer information, ensuring that all relevant details are easily accessible and manageable
Consumer	csm_consumer	Table in ServiceNow represents a B2C customer. This table helps in organizing and maintaining consumer information, ensuring that all relevant details are easily accessible and manageable
Contact	customer_contact	This table helps in organizing and maintaining contact details, ensuring that all relevant information is easily accessible and manageable.
