HTML bot response control

Use the HTML bot response control to display static HTML text in the Virtual Agent bot response.

Note:

If you created conversations in earlier releases that use this bot response control to generate card layouts, consider updating your conversations to use the Card bot response control. The Card displays information from a record in your instance and contains a link to that related record.

Security considerations for HTML markup

For security reasons, an HTML sanitizer script runs automatically and checks all HTML markup used in the instance, including Virtual Agent conversations. The sanitizer script removes elements or attributes that might enable cross-site scripting attacks. You can edit the HTML sanitizer script to change the list of markup items to be preserved or removed. For details, see HTML sanitizer. For examples of adding markup items to the exclusion or inclusion lists, see Configure HTML sanitizer.

To disable the HTML sanitizer script only for Virtual Agent conversations, add the com.glide.cs.html.sanitizer.enabled system property and set the value to false. For details about creating a system property, see Add a system property.

HTML bot response control properties

Property	Description
Node name	Name that identifies this HTML bot response control node in the topic flow.
HTML message	HTML output to be displayed. Select the Script icon to open the HTML editor and enter the HTML text.
Height (Pixel)	Maximum height of the area for displaying HTML output in third-party messaging applications.
Width (Pixel)	Maximum width of the bot bubble for displaying HTML output in third-party messaging applications.
Advanced
Hide this node
Conditionally show this node if	No-code condition statement or low-code script that specifies a condition for presenting this node in the conversation. The condition must evaluate to true.

Channel support

Note:

As shown in the examples, HTML output can vary in third-party messaging applications. Determine an appropriate Height and Width area by setting initial height and width values, previewing the HTML output in the messaging applications you intend to use, and then adjusting the height and width values.

Table 1. Channel support for the HTML bot response control

Channel	Support	Constraints
Web UI	Supported	None
Mobile UI	Supported	None
Now Assist panel	Supported	None
Microsoft Teams	Supported	Since HTML is rendered as an image in Microsoft Teams, other controls are recommended. For example, use images or cards instead of HTML for Microsoft Teams.
Slack	Supported	None
Workplace	Supported	None
Facebook Messenger	Not supported	Not applicable
SMS Twilio	Not supported	Not applicable
LINE	Not supported	Not applicable
WhatsApp	Not supported	Not applicable
Apple Messages for Business	Not supported	Not applicable
Alexa (Voice)	Partial support	Supported on devices with screens. For nonscreen devices, the user receives a message: We found a link. For details, see Fine-tune Virtual Agent settings and topics for the best Alexa voice chat experience.

Example HTML bot response output

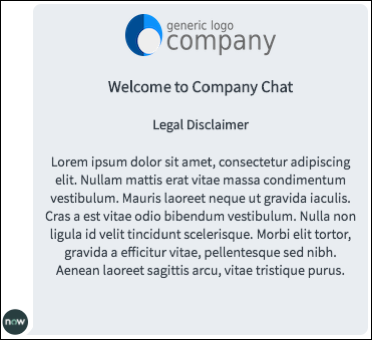

The HTML bot response shows a static HTML as a chat response. This example includes an image, headings, and paragraph text. The web UI presents this content as HTML. The Slack, Microsoft Teams, and Workplace user interfaces display the same content as a PNG image. URL links within the HTML are extracted and displayed below the image. The URL can be either an absolute or a relative link. If you use a relative link, it must be relative to the ServiceNow instance.

Note:

Virtual Agent Designer controls may display and function differently in other channels.

HTML bot response properties	HTML bot response output

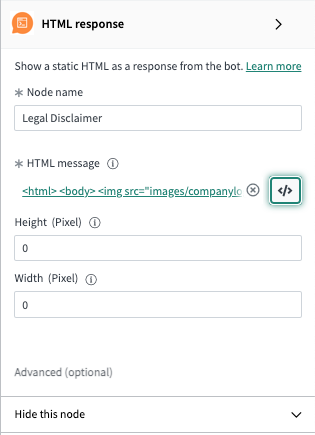

Figure 1. HTML bot response control basic properties	Figure 2. Web UI HTML output
